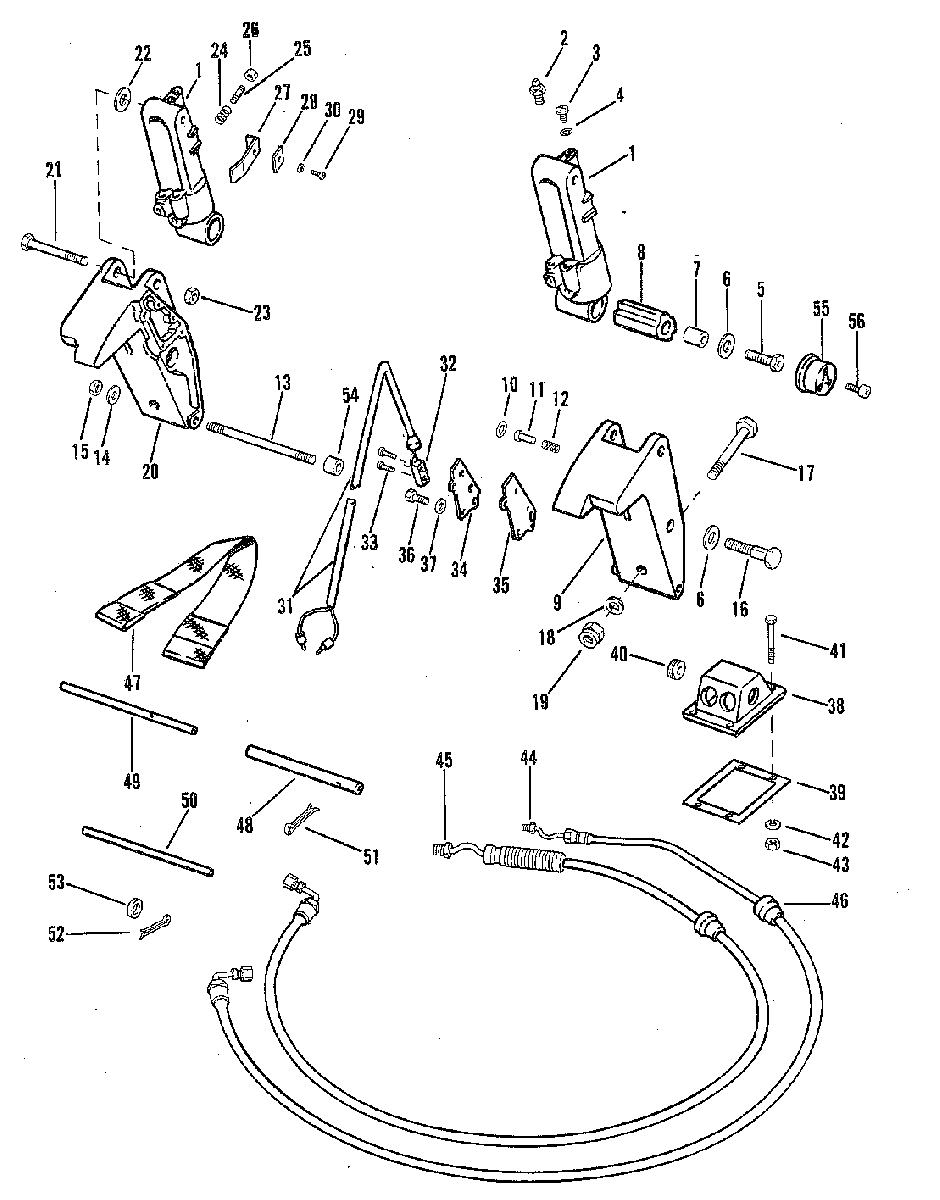

TRIM CYLINDERS AND HYDRAULIC HOSES для Mariner - 80 8066915 AND UP

  • №
    Артикул
    Название
  • 1
    92194A20 TRIM CYLINDER ASS'Y (IDENTIFY BY CASTING #78439)
    TRIM CYLINDER ASS'Y (IDENTIFY BY CASTING #78439)
  • 1
    92194A20 TRIM CYLINDER ASS'Y (IDENTIFY BY NO CASTING #)
    TRIM CYLINDER ASS'Y (IDENTIFY BY NO CASTING #)
  • 2
    22-74036 GREASE FITTING, TRIM CYLINDER
    GREASE FITTING, TRIM CYLINDER
  • 3
    10-45265 SCREW, BLEED
    SCREW, BLEED
  • 4
    25-45016 "O" RING, BLEED SCREW
    "O" RING, BLEED SCREW
  • 5
    10-45264 SCREW, TRIM CYLINDER (1-1/2") - WITH TAPPED HOLE
    SCREW, TRIM CYLINDER (1-1/2") - WITH TAPPED HOLE
  • 5
    10-92050 SCREW, TRIM CYLINDER (1-1/2") - WITHOUT TAPPED HOLE
    SCREW, TRIM CYLINDER (1-1/2") - WITHOUT TAPPED HOLE
  • 6
    12-28421 WASHER, TRIM CYLINDER BOLT
    WASHER, TRIM CYLINDER BOLT
  • 7
    23-45280 SPACER, TRIM CYLINDER - LOWER
    SPACER, TRIM CYLINDER - LOWER
  • 8
    23-94907A1 BUSHING, RUBBER - TRIM CYLINDER
    BUSHING, RUBBER - TRIM CYLINDER
  • 9
    89108A3 BRACKET, TRIM CYLINDER (PORT)
    BRACKET, TRIM CYLINDER (PORT)
  • 10
    26-70608 OIL SEAL, PORT BRACKET
    OIL SEAL, PORT BRACKET
  • 11
    89290 PLUNGER, LIMIT SWITCH ACTUATING
    PLUNGER, LIMIT SWITCH ACTUATING
  • 12
    24-95881 SPRING, TENSION - LIMIT SWITCH PLUNGER
    SPRING, TENSION - LIMIT SWITCH PLUNGER
  • 13
    16-45282 STUD, MOUNTING BRACKET
    STUD, MOUNTING BRACKET
  • 14
    13-26993 LOCKWASHER, MOUNTING BRACKET STUD
    LOCKWASHER, MOUNTING BRACKET STUD
  • 15
    11-28770 NUT, MOUNTING BRACKET STUD
    NUT, MOUNTING BRACKET STUD
  • 16
    10-45263 SCREW, MOUNTING BRACKET (2-1/4")
    SCREW, MOUNTING BRACKET (2-1/4")
  • 17
    10-68298 BOLT, MOUNTING BRACKET TO TRANSOM (3-1/4")
    BOLT, MOUNTING BRACKET TO TRANSOM (3-1/4")
  • 17
    10-89673 BOLT, MOUNTING BRACKET TO TRANSOM (5")
    BOLT, MOUNTING BRACKET TO TRANSOM (5")
  • 18
    12-46765 WASHER, MOUNTING BRACKET BOLT
    WASHER, MOUNTING BRACKET BOLT
  • 19
    11-82671112 NUT, MOUNTING BRACKET BOLT
    NUT, MOUNTING BRACKET BOLT
  • 20
    89111T BRACKET, TRIM CYLINDER (STARBOARD)
    BRACKET, TRIM CYLINDER (STARBOARD)
  • 21
    10-45328 SCREW, TRIM CYLINDER TO MOUNTING BRACKET (3-9/16")
    SCREW, TRIM CYLINDER TO MOUNTING BRACKET (3-9/16")
  • 22
    12-37807 WASHER, TRIM CYLINDER SCREW (STARBOARD ONLY)
    WASHER, TRIM CYLINDER SCREW (STARBOARD ONLY)
  • 23
    11-20696 NUT, TRIM CYLINDER SCREW
    NUT, TRIM CYLINDER SCREW
  • 24
    24-24390 SPRING, TENSION - ADJUSTING STUD
    SPRING, TENSION - ADJUSTING STUD
  • 25
    16-8M0034461 STUD, ADJUSTING - CUT-OUT LIMIT SWITCH
    STUD, ADJUSTING - CUT-OUT LIMIT SWITCH
  • 26
    11-859124 NUT, JAM - LIMIT SWITCH ADJUSTING STUD
    NUT, JAM - LIMIT SWITCH ADJUSTING STUD
  • 27
    99897 CAM, LIMIT SWITCH ADJUSTING STUD
    CAM, LIMIT SWITCH ADJUSTING STUD
  • 28
    86967 PLATE, RETAINING - LIMIT SWITCH CAM
    PLATE, RETAINING - LIMIT SWITCH CAM
  • 29
    10-68513 SCREW, RETAINING PLATE AND CAM
    SCREW, RETAINING PLATE AND CAM
  • 30
    13-26996 LOCKWASHER, RETAINING PLATE AND CAM SCREW
    LOCKWASHER, RETAINING PLATE AND CAM SCREW
  • 31
    45326A2 SWITCH ASSEMBLY, CUT-OUT LIMIT
    SWITCH ASSEMBLY, CUT-OUT LIMIT
  • 32
    23-45354 BUSHING, RUBBER - CUT-OUT LIMIT SWITCH
    BUSHING, RUBBER - CUT-OUT LIMIT SWITCH
  • 33
    10-47255 SCREW, CUT-OUT LIMIT SWITCH (9/16")
    SCREW, CUT-OUT LIMIT SWITCH (9/16")
  • 34
    89272 COVER, LIMIT SWITCH
    COVER, LIMIT SWITCH
  • 35
    27-892731 GASKET, LIMIT SWITCH COVER
    GASKET, LIMIT SWITCH COVER
  • 36
    10-34994 SCREW, LIMIT SWITCH COVER (7/16")
    SCREW, LIMIT SWITCH COVER (7/16")
  • 37
    12-38833 WASHER, LIMIT SWITCH COVER SCREW
    WASHER, LIMIT SWITCH COVER SCREW
  • 38
    87774A1 COVER, INLET - TRANSOM
    COVER, INLET - TRANSOM
  • 39
    27-87775 GASKET, INLET COVER
    GASKET, INLET COVER
  • 40
    25-45507 GROMMET, RUBBER - INLET COVER
    GROMMET, RUBBER - INLET COVER
  • 41
    10-32866 SCREW, INLET COVER TO BOAT (2")
    SCREW, INLET COVER TO BOAT (2")
  • 42
    13-26996 LOCKWASHER, INLET COVER SCREW
    LOCKWASHER, INLET COVER SCREW
  • 43
    11-68219 NUT, INLET COVER SCREW
    NUT, INLET COVER SCREW
  • 44
    32-88005 HOSE
    TRIM - CYLINDER TO CONTROL VALVE (5') - 12/32" O.D.
    HOSE
    TRIM - CYLINDER TO CONTROL VALVE (5') - 12/32" O.D.
  • 45
    32-88006 HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)
    HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)
  • 46
    23-35977 GROMMET, RUBBER (3/8" I.D. - 1" LONG)
    GROMMET, RUBBER (3/8" I.D. - 1" LONG)
  • 46
    23-35977 GROMMET, RUBBER (3/8" I.D. - 7/8" LONG)
    GROMMET, RUBBER (3/8" I.D. - 7/8" LONG)
  • 46
    25-12602002 GROMMET, RUBBER (7/16" I.D. - 7/8" LONG)
    GROMMET, RUBBER (7/16" I.D. - 7/8" LONG)
  • 47
    73519A1 TILT STOP
    TILT STOP
  • 48
    69259 TUBE, MOUNTING - TILT STOP
    TUBE, MOUNTING - TILT STOP
  • 49
    77669 PIN, MOUNTING TUBE
    PIN, MOUNTING TUBE
  • 50
    63473 TUBE, CUSHION
    TUBE, CUSHION
  • 51
    18-36002 COTTER PIN, MOUNTING TUBE PIN
    COTTER PIN, MOUNTING TUBE PIN
  • 52
    18-45882 COTTER PIN, TILT PIN RETAINING
    COTTER PIN, TILT PIN RETAINING
  • 53
    12-39304 WASHER, TILT PIN
    WASHER, TILT PIN
  • 54
    23-89112 BUSHING, MOUNTING BRACKET
    BUSHING, MOUNTING BRACKET
  • 55
    70679 COVER, TRIM CYLINDER- NOT USED ON LATE MODELS
    COVER, TRIM CYLINDER- NOT USED ON LATE MODELS
  • 56
    10-37655 SCREW, TRIM CYLINDER COVER - NOT USED ON LATE MODELS
    SCREW, TRIM CYLINDER COVER - NOT USED ON LATE MODELS
