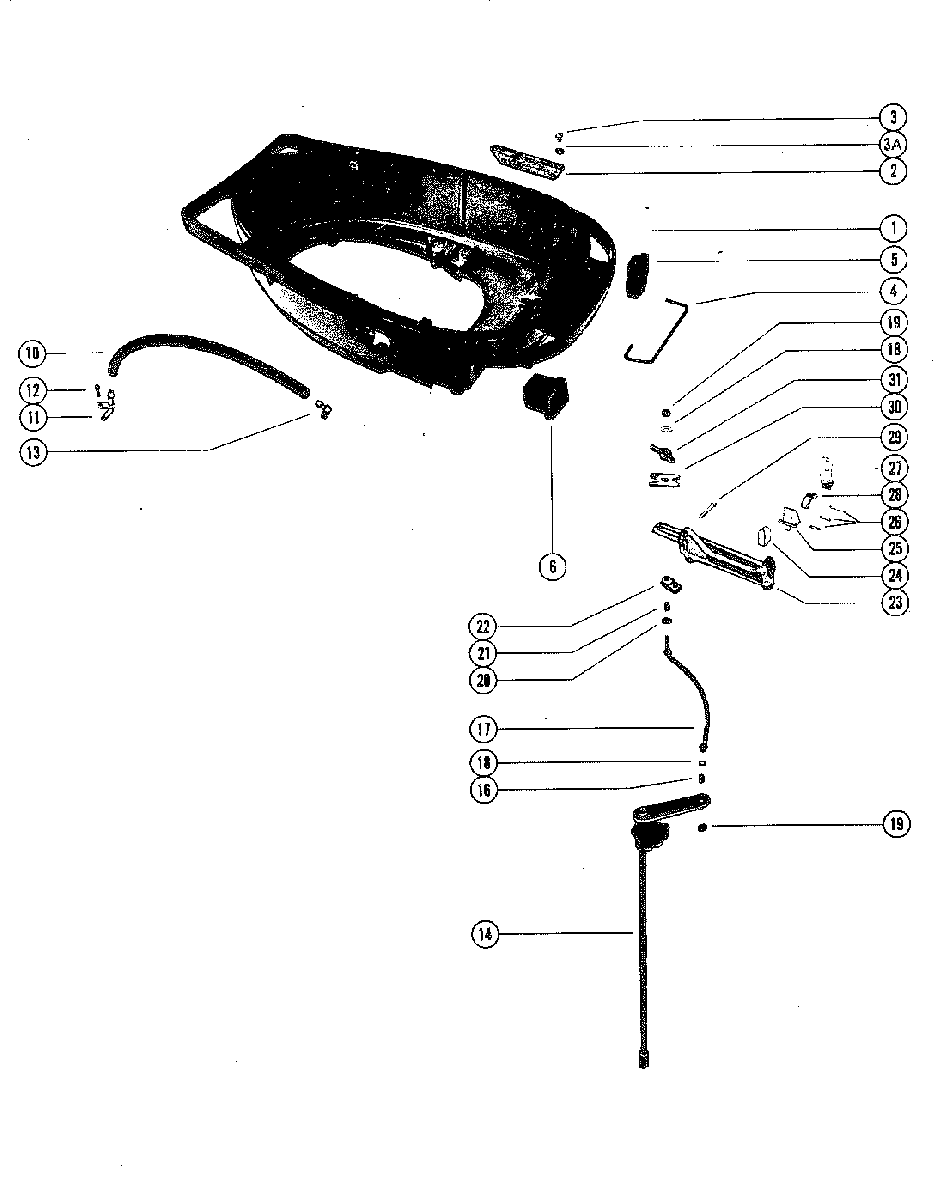

BOTTOM COWL AND SHIFT LINKAGE для Mariner - 80 8066915 AND UP
-
№АртикулНазвание
-
12158-8708T COWL, BOTTOMCOWL, BOTTOM
-
274303 COVER, AIR INLETCOVER, AIR INLET
-
310-62568 SCREW, COVER TO BOTTOM COWL (3/8")SCREW, COVER TO BOTTOM COWL (3/8")
-
3A12-30164 WASHER, COVER SCREWWASHER, COVER SCREW
-
427-73646 GASKET, BOTTOM COWLGASKET, BOTTOM COWL
-
539616 BOOT, CONTROL CABLES - BOTTOM COWLBOOT, CONTROL CABLES - BOTTOM COWL
-
637637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
1032-8M0108355 HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (14-3/4")HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (14-3/4")
-
1152889 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
1210-48408 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
-
1322-782792 ELBOW, TELL TALE HOSE TO CYLINDER BLOCKELBOW, TELL TALE HOSE TO CYLINDER BLOCK
-
1460304A54 SHIFT SHAFT ASSEMBLY, UPPERSHIFT SHAFT ASSEMBLY, UPPER
-
1623-26856 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
1773402 SHIFT LINKSHIFT LINK
-
1812-35462 WASHER, LINK ROD (SHIFT LEVER END)WASHER, LINK ROD (SHIFT LEVER END)
-
1911-36069 NUT, LINK RODNUT, LINK ROD
-
2013-29720 WASHER, WAVE - LINK RODWASHER, WAVE - LINK ROD
-
2124-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
2237896 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
2352732A6 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
2439519 CAP, BARREL RETAINER - ANCHORCAP, BARREL RETAINER - ANCHOR
-
2587609A1 LEVER, NYLON - SHIFT CABLE LOCKINGLEVER, NYLON - SHIFT CABLE LOCKING
-
2617-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
2739667 COVER, NYLON - SHIFT CABLECOVER, NYLON - SHIFT CABLE
-
2887609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
-
2910-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
-
3052100 WEAR PLATE, LINK RODWEAR PLATE, LINK ROD
-
318M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKETLATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
