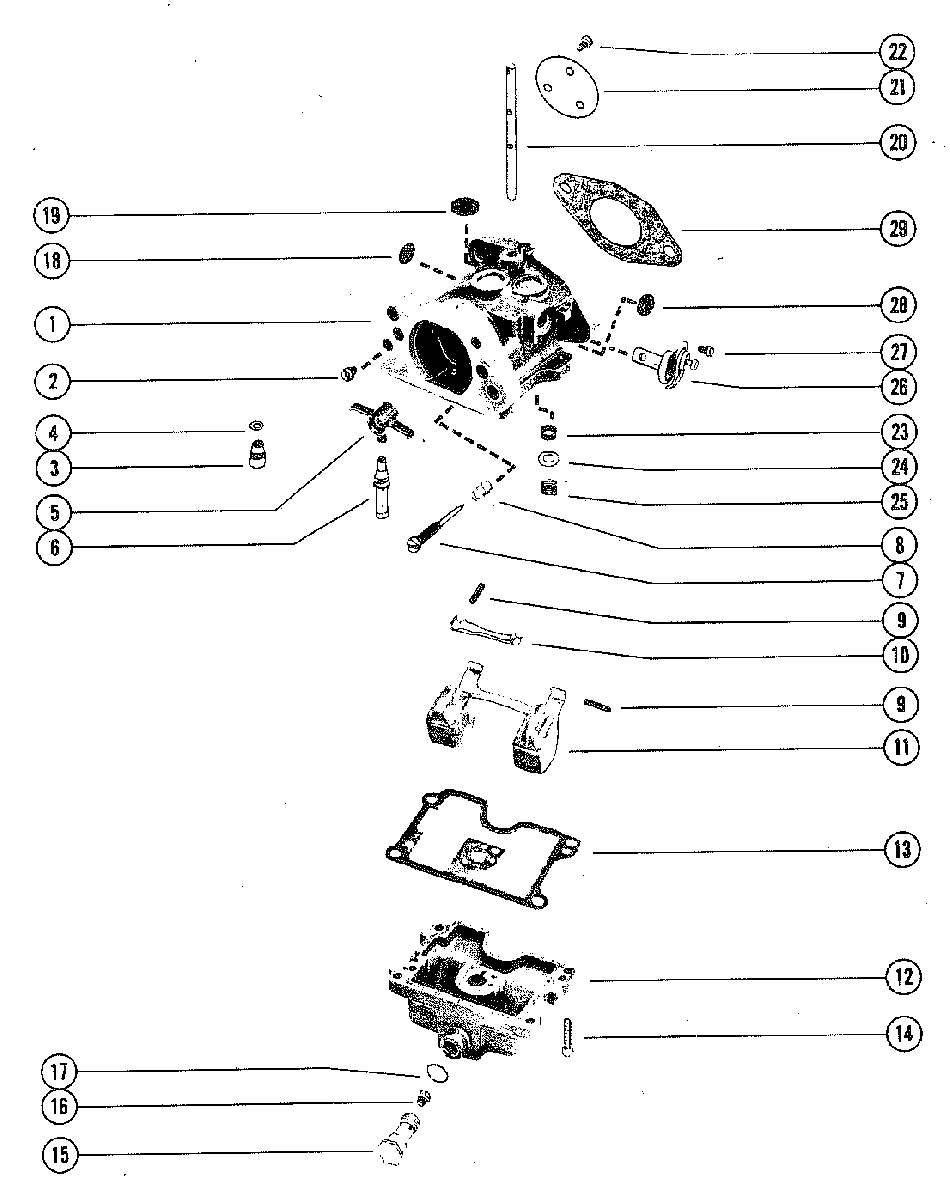

CARBURETOR ASSEMBLY для Mariner - 80 8066915 AND UP
-
№АртикулНазвание
-
11379-6071A57 CARBURETOR ASSEMBLY (TOP)- STAMPED WM-12CARBURETOR ASSEMBLY (TOP)- STAMPED WM-12
-
11379-6071A58 CARBURETOR ASSEMBLY (BOTTOM) STAMPED WM-12CARBURETOR ASSEMBLY (BOTTOM) STAMPED WM-12
-
11379-6071A57 CARBURETOR ASSEMBLY (TOP)-STAMPED WM-14CARBURETOR ASSEMBLY (TOP)-STAMPED WM-14
-
11379-6071A58 CARBURETOR ASSEMBLY (BOTTOM) -STAMPED WM-14CARBURETOR ASSEMBLY (BOTTOM) -STAMPED WM-14
-
21395-6207 JET, VENT BOWL (.072) (WM-10)JET, VENT BOWL (.072) (WM-10)
-
21395-5733 JET, VENT BOWL (.092)(WM-12)(WM-14)JET, VENT BOWL (.092)(WM-12)(WM-14)
-
31395-83181 INLET NEEDLE AND SEATINLET NEEDLE AND SEAT
-
490-8M0143356 GASKET, INLET NEEDLE AND SEATGASKET, INLET NEEDLE AND SEAT
-
51395-6685 VENTURI(WM-10)VENTURI(WM-10)
-
552106A1 VENTURI (WM-12)(WM-14)VENTURI (WM-12)(WM-14)
-
690-8M0143356 NOZZLENOZZLE
-
790-8M0143356 IDLE NEEDLEIDLE NEEDLE
-
890-8M0143356 SPRING, IDLE MIXTURESPRING, IDLE MIXTURE
-
990-8M0143356 PIN, FLOATPIN, FLOAT
-
1090-8M0143356 LEVER, FLOATLEVER, FLOAT
-
1119273 FLOATFLOAT
-
121395-6488 FUEL BOWLFUEL BOWL
-
1390-8M0143356 GASKET, FUEL BOWLGASKET, FUEL BOWL
-
1490-8M0143356 SCREW, FUWL BOWLSCREW, FUWL BOWL
-
151395-6199 PLUG, MAIN JETPLUG, MAIN JET
-
161395-6247 JET, MAIN (.090)(WM-10)JET, MAIN (.090)(WM-10)
-
161399-3518 JET, MAIN (.082)(WM-12)(WM-14)JET, MAIN (.082)(WM-12)(WM-14)
-
1790-8M0143356 GASKET, MAIN JET PLUGGASKET, MAIN JET PLUG
-
1890-8M0143356 SCREEN, FUEL INLETSCREEN, FUEL INLET
-
1990-8M0143356 WELCK PLUG (9/16")WELCK PLUG (9/16")
-
201395-4807 SHAFT, THROTTLE (TOP)SHAFT, THROTTLE (TOP)
-
201395-7942 SHAFT, THROTTLE (BOTTOM)SHAFT, THROTTLE (BOTTOM)
-
211395-6196 VALVE, THROTTLE (WM-10)VALVE, THROTTLE (WM-10)
-
211395-7639 VALVE, THROTTLE (WM-12)(WM-14)VALVE, THROTTLE (WM-12)(WM-14)
-
2290-8M0143356 SCREW, VALVE TO THROTTLE SHAFTSCREW, VALVE TO THROTTLE SHAFT
-
231395-6204 SEAL, THROTTLE SHAFTSEAL, THROTTLE SHAFT
-
241395-6203 WASHER, THROTTLE SHAFTWASHER, THROTTLE SHAFT
-
2590-8M0143356 SPRING, THROTTLE RETURNSPRING, THROTTLE RETURN
-
261395-6198 VALVE ASSEMBLY, ENRICHMENTVALVE ASSEMBLY, ENRICHMENT
-
2790-8M0143356 SCREW, ENRICHMENT BRACKETSCREW, ENRICHMENT BRACKET
-
2890-8M0143356 WELCH PLUG (7/16")WELCH PLUG (7/16")
-
2927-733771 GASKET, CARBURETORGASKET, CARBURETOR
-
--1395-6200 GASKET KITGASKET KIT
-
--812953 REPAIR PARTS KIT (WM-10)REPAIR PARTS KIT (WM-10)
-
--812953 REPAIR PARTS KIT (WM-12)REPAIR PARTS KIT (WM-12)
-
--812953 REPAIR PARTS KIT (WM-14)REPAIR PARTS KIT (WM-14)
