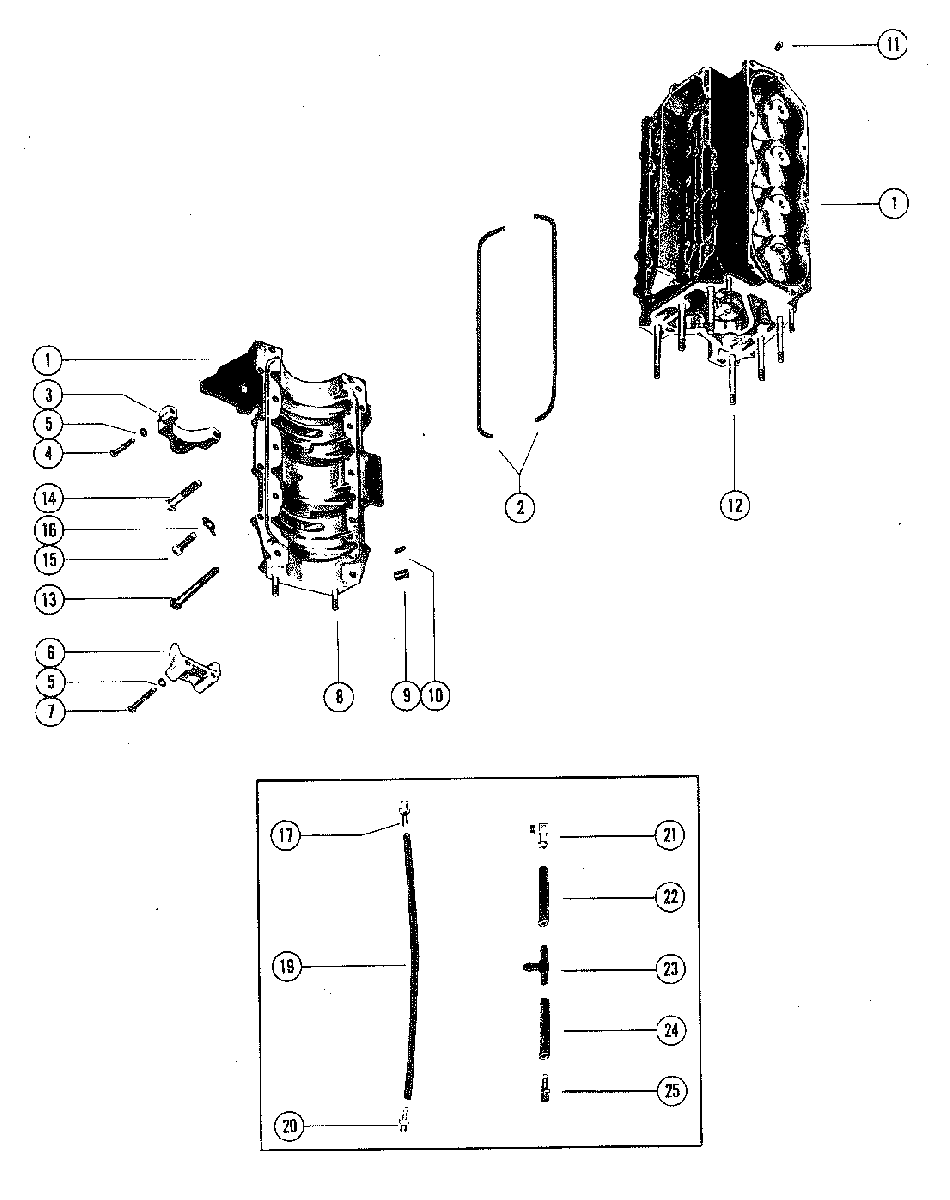

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mariner - 80 8066915 AND UP
-
№АртикулНазвание
-
1871-8338A3 BLOCK/CRANKCASE ASS'Y
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOWBLOCK/CRANKCASE ASS'Y
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOW -
1871-8338A3 BLOCK/CRANKCASE ASS'Y
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UPBLOCK/CRANKCASE ASS'Y
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UP -
227-53650 GASKET, CRANKCASE TO CYLINDER BLOCKGASKET, CRANKCASE TO CYLINDER BLOCK
-
356029T COVER, STARTER MOTOR (UPPER)COVER, STARTER MOTOR (UPPER)
-
410-31984 SCREW, COVER TO CRANKCASE (1-3/8")SCREW, COVER TO CRANKCASE (1-3/8")
-
410-35385 SCREW, COVER TO CRANKCASE (1-3/4")SCREW, COVER TO CRANKCASE (1-3/4")
-
513-26993 LOCKWASHER, COVER SCREWLOCKWASHER, COVER SCREW
-
676867 COVER, STARTER MOTOR (LOWER)COVER, STARTER MOTOR (LOWER)
-
710-73279 SCREW, COVER TO CRANKCASE (1-7/8")SCREW, COVER TO CRANKCASE (1-7/8")
-
710-73658 SCREW, COVER TO CRANKCASE (5-1/2")SCREW, COVER TO CRANKCASE (5-1/2")
-
816-64281 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1-7/8")STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1-7/8")
-
917-43044 PIN, DOWEL- CRANKCASE TO CYLINDER BLOCKPIN, DOWEL- CRANKCASE TO CYLINDER BLOCK
-
1017-63779 PIN, DOWEL-CYLINDER BLOCK TO MAIN BEARINGPIN, DOWEL-CYLINDER BLOCK TO MAIN BEARING
-
1166517 RESTRICTOR, CRANKCASE BLEEDRESTRICTOR, CRANKCASE BLEED
-
1216-64282 STUD,CYLINDER BLOCK TO EXHAUST PLATE (4")STUD,CYLINDER BLOCK TO EXHAUST PLATE (4")
-
1310-57841 SCREW, CRANKCASE TO CYLINDER BLOCK 92-3/4")SCREW, CRANKCASE TO CYLINDER BLOCK 92-3/4")
-
1310-74824 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")
-
1410-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
-
1510-20359 SCREW, CENTER MAIN BEARING LOCKING (1")SCREW, CENTER MAIN BEARING LOCKING (1")
-
1614-20091 TAB WASHER, BEARING LOCKING SCREWTAB WASHER, BEARING LOCKING SCREW
-
1721-42866 CHECK VALVE, BLEED HOSE-TOPCHECK VALVE, BLEED HOSE-TOP
-
1932-9938779 HOSE, CYLINDER BLEED (12-1/2")HOSE, CYLINDER BLEED (12-1/2")
-
2021-428671 CHECK VALVE, BLEED HOSE-BOTTOMCHECK VALVE, BLEED HOSE-BOTTOM
-
2122-996642 ELBOW, BALANCE HOSE TO CYLINDER BLOCK-UPPERELBOW, BALANCE HOSE TO CYLINDER BLOCK-UPPER
-
2232-8M0108355 HOSE ASSEMBLY, BALANCE (6-1/4")HOSE ASSEMBLY, BALANCE (6-1/4")
-
2322-130342 TEE, BALANCE HOSE TO CYLINDER BLOCK-LOWERTEE, BALANCE HOSE TO CYLINDER BLOCK-LOWER
-
2432-9938779 HOSE, BALANCE (5")HOSE, BALANCE (5")
-
2522-56759 FITTING, AIR INLET COVERFITTING, AIR INLET COVER
