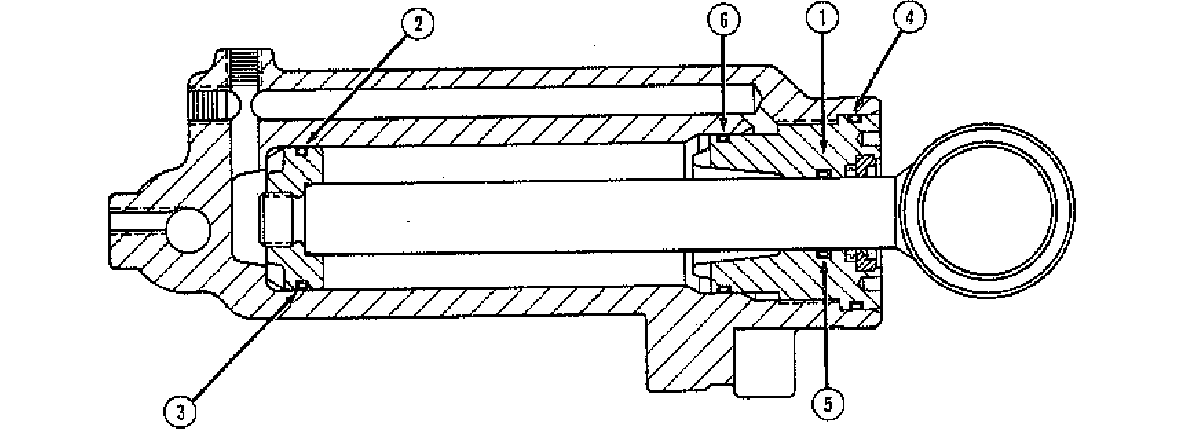

POWER TRIM CYLINDER REPAIR KITS (NO CASTING #) для Mariner - 80 8066915 AND UP
-
№АртикулНазвание
-
-92188A2 REPAIR KIT (SEE NOTE BELOW)REPAIR KIT (SEE NOTE BELOW)
-
1N.S.S. CYLINDER CAPCYLINDER CAP
-
2N.S.S. "O" RING (1-1/4" X X1-1/2" X 1/8")"O" RING (1-1/4" X X1-1/2" X 1/8")
-
3N.S.S. SPACERSPACER
-
4N.S.S. "O" RING (1-7/8" X 2-1/16" X 3/32")"O" RING (1-7/8" X 2-1/16" X 3/32")
-
5N.S.S. "O" RING (3/4" X 15/16" X 3/32")"O" RING (3/4" X 15/16" X 3/32")
-
6N.S.S. "O" RING (1-1/2" X 1-3/4" X 3/32")"O" RING (1-1/2" X 1-3/4" X 3/32")
