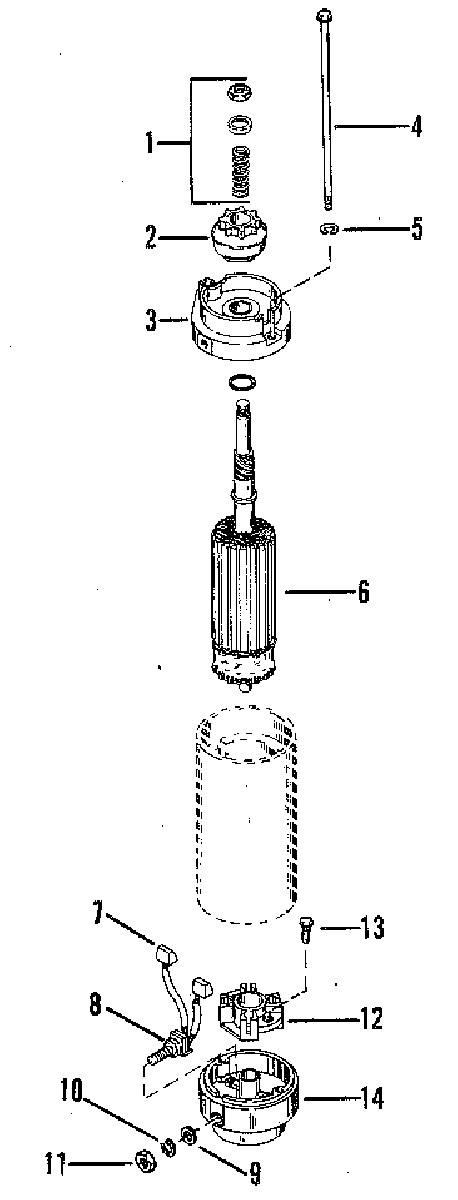

STARTER MOTOR ASSEMBLY (BOSCH) для Mariner - 80 8066915 AND UP
-
№АртикулНазвание
-
-50-893891T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190643 DRIVE KITDRIVE KIT
-
2685753 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
375660 PLATE, DRIVE ENDPLATE, DRIVE END
-
410-75385 BOLT, THRUBOLT, THRU
-
513-61789 LOCKWASHER, THRU BOLTLOCKWASHER, THRU BOLT
-
675386 ARMATUREARMATURE
-
7898265016 BRUSH SETBRUSH SET
-
823-57387 BUSHING, INSULATINGBUSHING, INSULATING
-
912-38013 WASHER, INPUT STUDWASHER, INPUT STUD
-
1013-26992 LOCKWASHER, INPUT STUDLOCKWASHER, INPUT STUD
-
1111-20890 NUT, INPUT STUDNUT, INPUT STUD
-
12898265014 HOLDER, BRUSHHOLDER, BRUSH
-
1310-68586 SCREW, BRUSH AND HOLDERSCREW, BRUSH AND HOLDER
-
1415386001 END CAP, COMMUTATOREND CAP, COMMUTATOR
