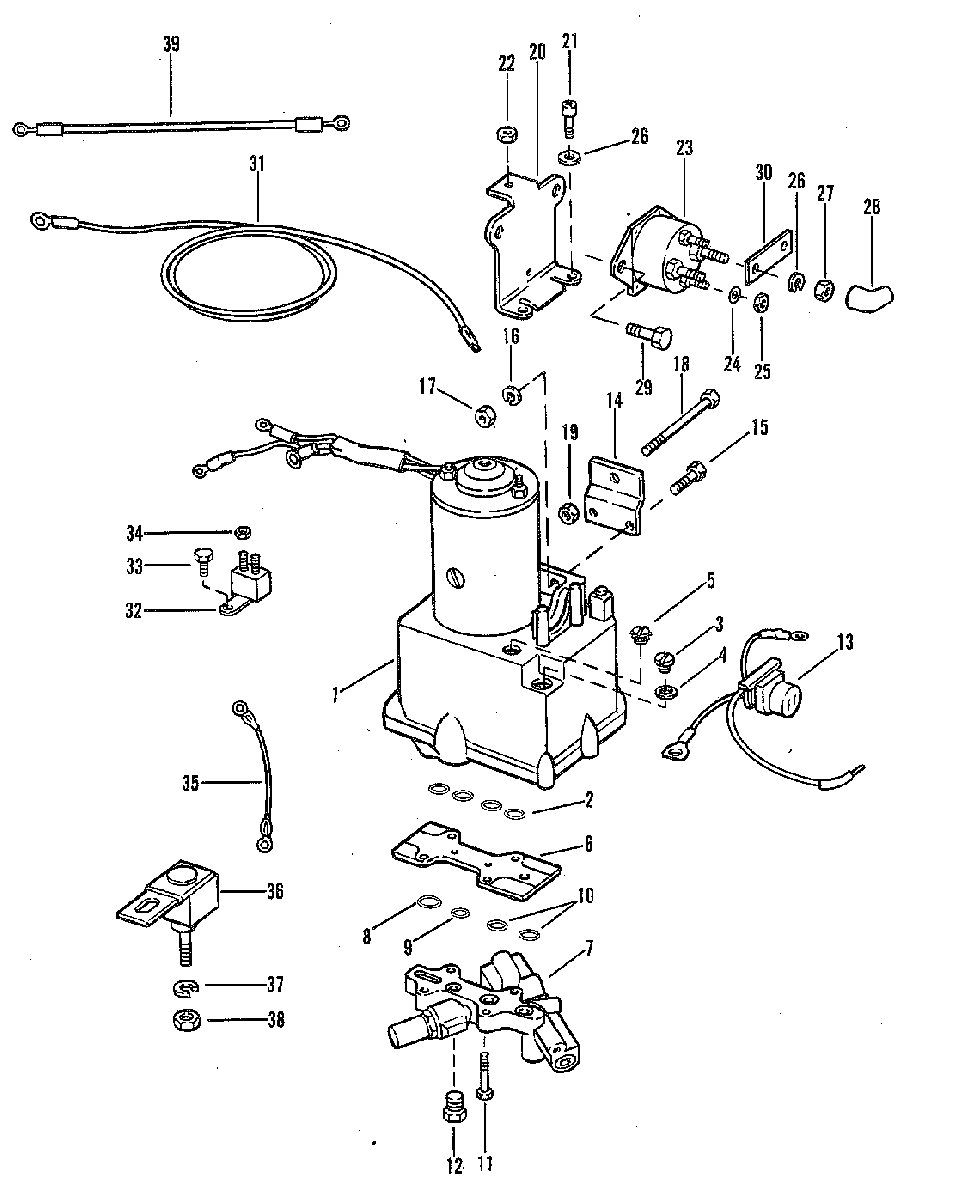

POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE) для Mariner - 80 7162528 THRU 7208572
-
№АртикулНазвание
-
192975A32 HYDRAULIC PUMP ASS'Y (PLASTIC RESERVOIR) SEE NOTEHYDRAULIC PUMP ASS'Y (PLASTIC RESERVOIR) SEE NOTE
-
225-48171 "O" RING, MANIFOLD PLATE"O" RING, MANIFOLD PLATE
-
310-79953Q04 SCREW, FILLER - HYDRAULIC PUMPSCREW, FILLER - HYDRAULIC PUMP
-
412-191833 WASHER, SEALING - FILLER SCREWWASHER, SEALING - FILLER SCREW
-
510-62269 SCREW, VENT - HYDRAULIC PUMPSCREW, VENT - HYDRAULIC PUMP
-
645336 PLATE, MANIFOLDPLATE, MANIFOLD
-
745197A2 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
--25-48171 "O" RING, MANIFOLD PLATE (SEE REF. #2)"O" RING, MANIFOLD PLATE (SEE REF. #2)
-
825-45254 "O" RING, CONTROL VALVE (3/4" O.D.)"O" RING, CONTROL VALVE (3/4" O.D.)
-
925-48171 "O" RING, CONTROL VALVE (1/2" O.D.)"O" RING, CONTROL VALVE (1/2" O.D.)
-
1025-45253 "O" RING, CONTROL VALVE (5/8" O.D.)"O" RING, CONTROL VALVE (5/8" O.D.)
-
1110-56500 SCREW, VALVE AND MANIFOLD PLATE TO PUMP (1-1/4")SCREW, VALVE AND MANIFOLD PLATE TO PUMP (1-1/4")
-
1222-46008 PLUG, CONTROL VALVE (1/2-20")PLUG, CONTROL VALVE (1/2-20")
-
1384-79147A3 CONNECTOR AND HARNESSCONNECTOR AND HARNESS
-
1445377T BRACKET, MOUNTINGBRACKET, MOUNTING
-
1510-35386 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1")SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1")
-
1613-39107 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
1711-21908 NUT, MOUNTING BRACKET SCREWNUT, MOUNTING BRACKET SCREW
-
1810-68298 BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")
-
1911-82671112 NUT, HYDRAULIC PUMP BOLTNUT, HYDRAULIC PUMP BOLT
-
2094279 BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
2110-28638 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMPSCREW, MOUNTING BRACKET TO HYDRAULIC PUMP
-
2211-24656 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLTNUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
-
2389-96158T STARTER SOLENOIDSTARTER SOLENOID
-
2413-26995 LOCKWASHER, SOLENOID TERMINAL (#8)LOCKWASHER, SOLENOID TERMINAL (#8)
-
2511-26419 NUT, SOLENOID TERMINAL (8-32)NUT, SOLENOID TERMINAL (8-32)
-
2613-26992 LOCKWASHER, SOLENOID TERMINAL (1/4)LOCKWASHER, SOLENOID TERMINAL (1/4)
-
2711-94330 NUT, SOLENOID TERMINAL (1/4-20)NUT, SOLENOID TERMINAL (1/4-20)
-
2885-861680 BOOT, RUBBER - STARTER SOLENOID TERMINALBOOT, RUBBER - STARTER SOLENOID TERMINAL
-
2910-41508 SCREW, STARTER SOLENOID TO MOUNTING BRACKETSCREW, STARTER SOLENOID TO MOUNTING BRACKET
-
3094275 LINK, SOLENOID TO SOLENOIDLINK, SOLENOID TO SOLENOID
-
3184-79139A13 BATTERY LEAD (POSITIVE)BATTERY LEAD (POSITIVE)
-
3184-79138A1 BATTERY LEAD (NEGATIVE)BATTERY LEAD (NEGATIVE)
-
3288-8M0085705 CIRCUIT BREAKER (20 AMP.)CIRCUIT BREAKER (20 AMP.)
-
3310-8M0113176 SCREW, CIRCUIT BREAKERSCREW, CIRCUIT BREAKER
-
3411-45076 NUT, CIRCUIT BREAKER TERMINAL (10-32)NUT, CIRCUIT BREAKER TERMINAL (10-32)
-
3584-87379A5 WIRE, SOLENOID TO CIRCUIT BREAKER (RED)WIRE, SOLENOID TO CIRCUIT BREAKER (RED)
-
3688-79023T90 FUSE ASSEMBLY (90 AMP.)FUSE ASSEMBLY (90 AMP.)
-
3712-96457 WASHER, FUSE TERMINALWASHER, FUSE TERMINAL
-
3811-21825 NUT, FUSE TERMINAL (1/4-28)NUT, FUSE TERMINAL (1/4-28)
-
3984-61600A9 WIRE, STARTER SOLENOID (BLACK)WIRE, STARTER SOLENOID (BLACK)
