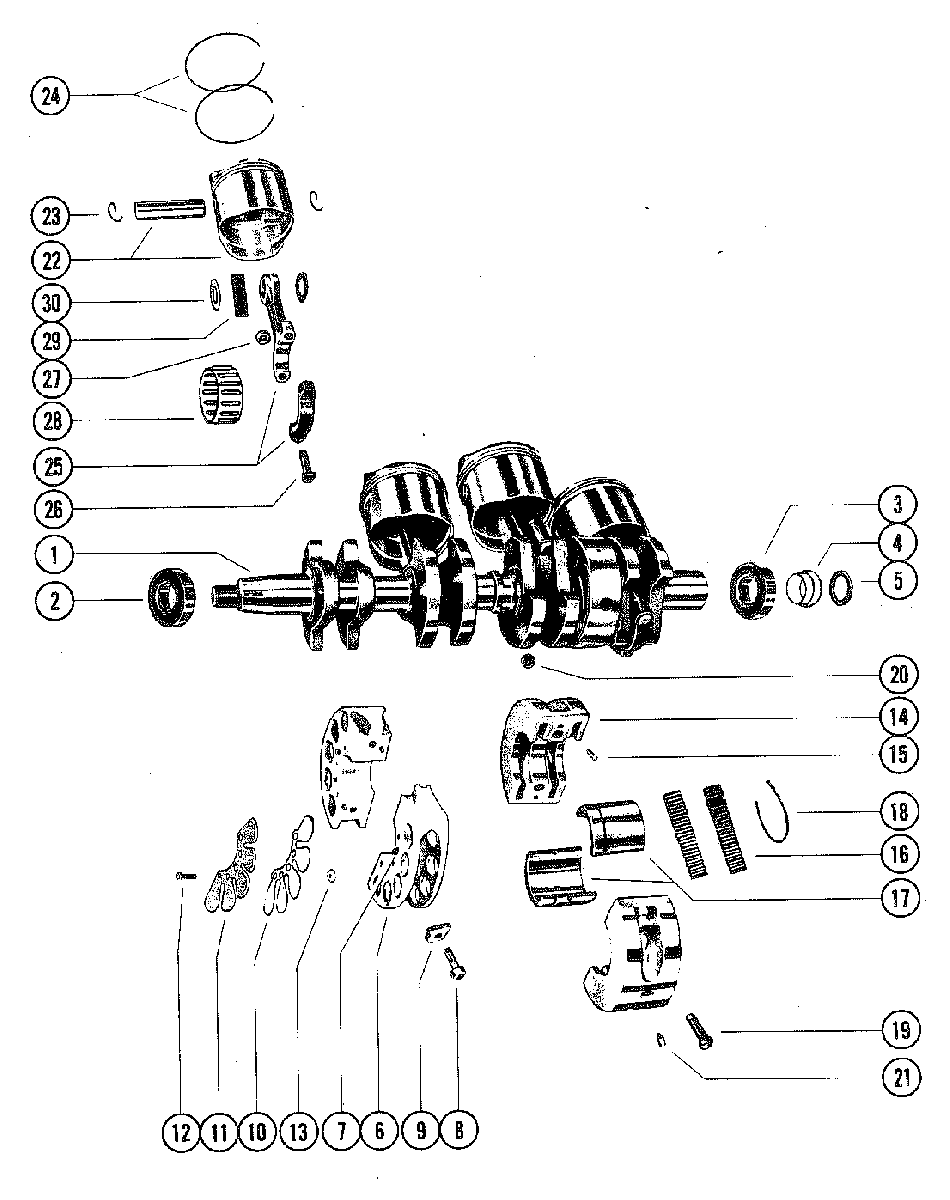

CRANKSHAFT, PISTON AND CONNECTING ROD для Mariner - 80 7162528 THRU 7208572
-
№АртикулНазвание
-
1440-9074A2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-62567T BALL BEARING, UPPERBALL BEARING, UPPER
-
330-63742T BALL BEARING, LOWERBALL BEARING, LOWER
-
454196A6 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
565800 PACKING, CARRIERPACKING, CARRIER
-
6540-5266T5 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
717-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
810-45775 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
911-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1034-56007A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1134-56008 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1210-62204 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
1311-53153 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
14535-5397A4 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
1517-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
1629-714221 NEEDLE BEARINGNEEDLE BEARING
-
1726113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1853-26933 SNAP RING, OUTER RACE CLAMPINGSNAP RING, OUTER RACE CLAMPING
-
1910-22968 SCREW, CENTER MAIN BEARING CLAMPINGSCREW, CENTER MAIN BEARING CLAMPING
-
2011-20184 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
2117-47246 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
22774-9137A12 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
22774-9137A13 PISTON AND PISTON PIN ASSEMBLY (.015 O.S.)PISTON AND PISTON PIN ASSEMBLY (.015 O.S.)
-
22774-9137A14 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
-
2353-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2439-78816A12 PISTON RING (STANDARD)PISTON RING (STANDARD)
-
2439-88392A12 PISTON RING (.030 O.S.)PISTON RING (.030 O.S.)
-
2439-78811A12 PISTON RING (.015 O.S.)PISTON RING (.015 O.S.)
-
25624-8101A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2610-54803 SCREW, CONNECTING ROD -WITH NUTSCREW, CONNECTING ROD -WITH NUT
-
2711-49091 NUT, CONNECTING ROD SCREW -WITH NUTNUT, CONNECTING ROD SCREW -WITH NUT
-
2610-91012 SCREW, CONNECTING ROD - W/O NUTSCREW, CONNECTING ROD - W/O NUT
-
2831-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2929-47270 NEEDLE BEARING, PISTON PINNEEDLE BEARING, PISTON PIN
-
3012-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
