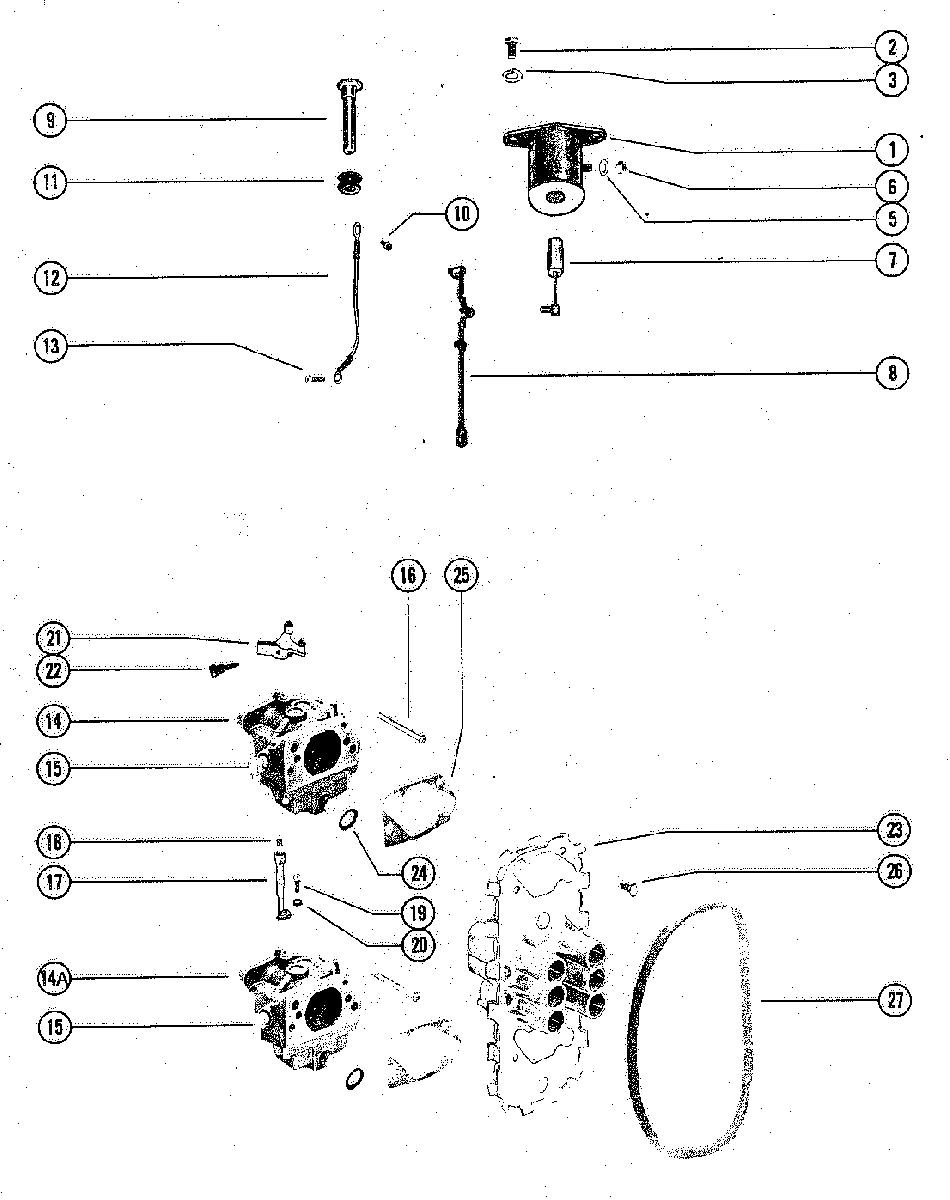

CARBURETOR LINKAGE для Mariner - 80 7162528 THRU 7208572

  • №
    Артикул
    Название
  • 1
    54293A10 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    10-824941 SCREW, CHOKE SOLENOID TO FRONT BRACKET(3/4")
    SCREW, CHOKE SOLENOID TO FRONT BRACKET(3/4")
  • 3
    13-26993 LOSKWASHER, CHOKE SOLENOID SCREW
    LOSKWASHER, CHOKE SOLENOID SCREW
  • 5
    13-26996 LOCKWASHER, CHOKE SOLENOID TERMINAL
    LOCKWASHER, CHOKE SOLENOID TERMINAL
  • 6
    11-68219 NUT, CHOKE SOLENOID TERMINAL
    NUT, CHOKE SOLENOID TERMINAL
  • 7
    89008A2 PLUNGER AND LINK ASSEMBLY
    PLUNGER AND LINK ASSEMBLY
  • 8
    73400 CHOKE ROD
    CHOKE ROD
  • 9
    90242A1 CHOKE KNOB ASSEMBLY
    CHOKE KNOB ASSEMBLY
  • 10
    10-77137 SCREW, WIRE TO CHOKE KNOB
    SCREW, WIRE TO CHOKE KNOB
  • 11
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 12
    84-74263 WIRE, CHOKE KNOB TO CHOKE ROD(BLACK)
    WIRE, CHOKE KNOB TO CHOKE ROD(BLACK)
  • 13
    10-62568 SCREW, WIRE TO CHOKE ROD
    SCREW, WIRE TO CHOKE ROD
  • 14
    1379-6071A57 CARBURETOR ASSEMBLY(TOP)-STAMPED WM-12
    CARBURETOR ASSEMBLY(TOP)-STAMPED WM-12
  • 14A
    1379-6071A58 CARBURETOR ASSEMBLY (BOTTOM) -STAMPED WM-12
    CARBURETOR ASSEMBLY (BOTTOM) -STAMPED WM-12
  • 14
    1379-6071A57 CARBURETOR ASSEMBLY (TOP) -STAMPED WM-14
    CARBURETOR ASSEMBLY (TOP) -STAMPED WM-14
  • 14A
    1379-6071A58 CARBURETOR ASSEMBLY (BOTTOM) -STAMPED WM-14
    CARBURETOR ASSEMBLY (BOTTOM) -STAMPED WM-14
  • 15
    22-19688 ELBOW, CARBURETOR
    ELBOW, CARBURETOR
  • 16
    10-52743 SCREW, CARBURETOR TO CRANKCASE (3-3/4")
    SCREW, CARBURETOR TO CRANKCASE (3-3/4")
  • 17
    53720A2 COUPLING ASSEMBLY, LOWER CARBURETOR
    COUPLING ASSEMBLY, LOWER CARBURETOR
  • 18
    28-89694 KEY, COUPLING
    KEY, COUPLING
  • 19
    10-66104 SCREW, COUPLING TO CARBURETOR (3/4")
    SCREW, COUPLING TO CARBURETOR (3/4")
  • 20
    12-74726 WASHER, COUPLING SCREW
    WASHER, COUPLING SCREW
  • 21
    73847 ACUATOR, THROTTLE (UPPER VARBURETOR)
    ACUATOR, THROTTLE (UPPER VARBURETOR)
  • 22
    10-60293 SCREW, ACUATOR TO UPPER CARBURETOR (1/2")
    SCREW, ACUATOR TO UPPER CARBURETOR (1/2")
  • 23
    73408 PLATE, CARBURETOR
    PLATE, CARBURETOR
  • 24
    27-73398 GASKET, CARBURETOR PLATE
    GASKET, CARBURETOR PLATE
  • 25
    27-76952 GASKET, CARBURETOR PLATE TO CARBURETOR
    GASKET, CARBURETOR PLATE TO CARBURETOR
  • 26
    10-28635 SCREW, PLATE TO CARBURETOR (5/8")
    SCREW, PLATE TO CARBURETOR (5/8")
  • 27
    73647 SEAL, CARBURETOR PLATE
    SEAL, CARBURETOR PLATE
