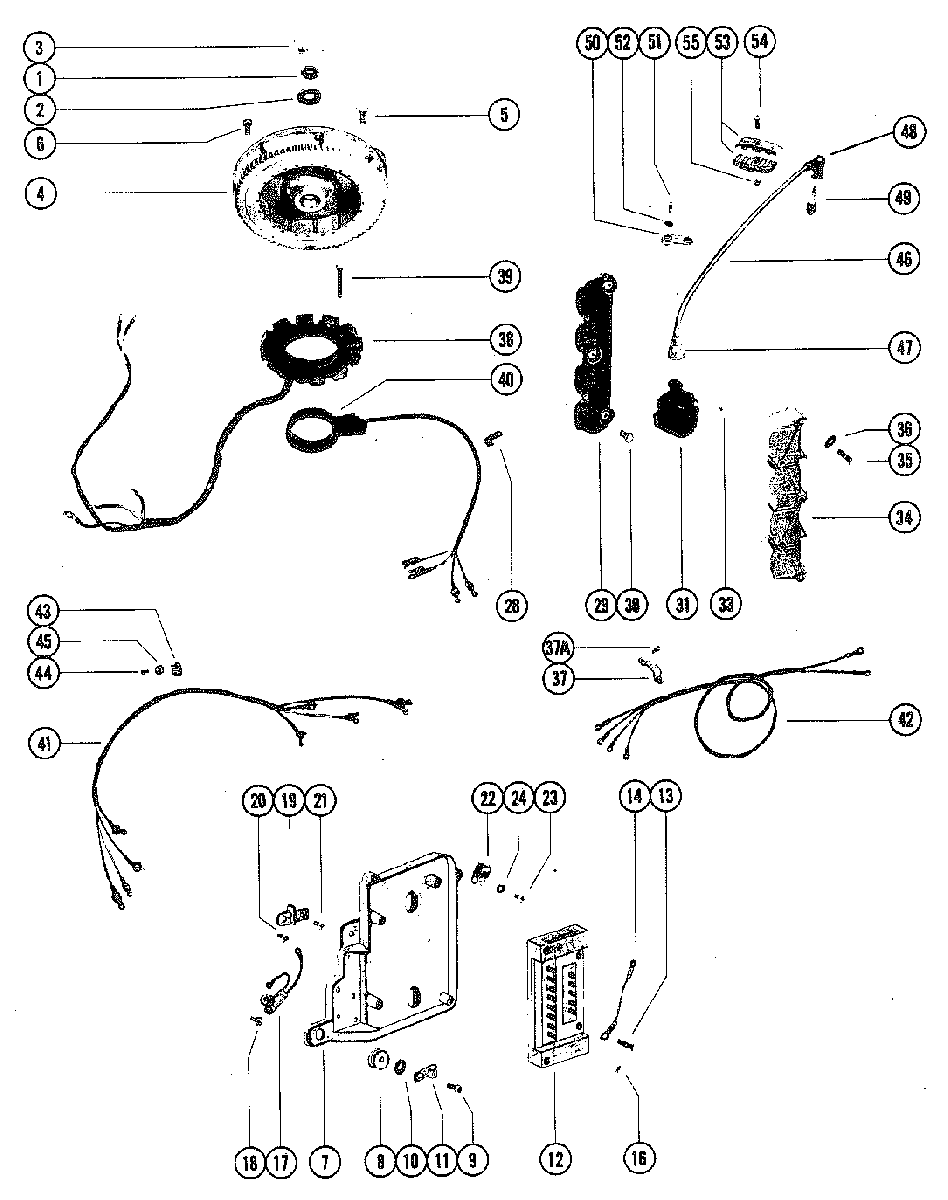

FLYWHEEL, STATOR AND IGNITION COIL для Mariner - 80 7162528 THRU 7208572
-
№АртикулНазвание
-
111-52901 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
319-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
4248-8722A6 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
510-68997 SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
-
610-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
-
790332 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
825-57009001 GROMMET, SWITCH BOXGROMMET, SWITCH BOX
-
910-824941 SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")
-
1012-56720 WASHER, SWITCH BOX PLATE SCREWWASHER, SWITCH BOX PLATE SCREW
-
1154-47483 "J" CLIP, SWITCH BOX WIRES AND FUEL LINE"J" CLIP, SWITCH BOX WIRES AND FUEL LINE
-
12332-5772A7 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
1310-20619 SCREW, SWITCH BOX TO PLATE (1-3/8")SCREW, SWITCH BOX TO PLATE (1-3/8")
-
1484-65999A5 WIRE ASSEMBLYWIRE ASSEMBLY
-
1611-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
1758124A19 MERCURY SWITCH ASSEMBLYMERCURY SWITCH ASSEMBLY
-
1810-37571 SCREW, MERCURY SWITCH TO PLATE (1/2")SCREW, MERCURY SWITCH TO PLATE (1/2")
-
1986-66986 TERMINAL BLOCKTERMINAL BLOCK
-
2010-38055 SCREW, TERMINAL BLOCK TO PLATE (5/8")SCREW, TERMINAL BLOCK TO PLATE (5/8")
-
2110-37655 SCREW, WIRE TO TERMINAL BLOCK (1/2")SCREW, WIRE TO TERMINAL BLOCK (1/2")
-
2254-23567 CLIP, WIRES AND HARNESSCLIP, WIRES AND HARNESS
-
2310-48408 SCREW, CLIP TO PLATE (3/8")SCREW, CLIP TO PLATE (3/8")
-
248M0084613 "D" WASHER, CLIP SCREW"D" WASHER, CLIP SCREW
-
2854-47483 "J" CLAMP, TRIGGER PLATE HARNESS"J" CLAMP, TRIGGER PLATE HARNESS
-
2973395 PLATE, MOUNTING-IGNITION COILPLATE, MOUNTING-IGNITION COIL
-
3010-28668 SCREW, MOUNTING PLATE TO CRANKCASE (7/8")SCREW, MOUNTING PLATE TO CRANKCASE (7/8")
-
31339-832757A4 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
3311-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
3487554 COVER, IGNITION COILCOVER, IGNITION COIL
-
3510-88856 SCREW, COVER TO MOUNTING PLATE (2")SCREW, COVER TO MOUNTING PLATE (2")
-
3612-30164 WASHER, COVER SCREWWASHER, COVER SCREW
-
3777672 STRAP, PRIMARY HARNESSSTRAP, PRIMARY HARNESS
-
37A10-48408 SCREW, STRAP ATTACHINGSCREW, STRAP ATTACHING
-
38398-5454A26 STATOR ASSEMBLYSTATOR ASSEMBLY
-
3910-75840 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
-
4096453A2 TRIGGER PALTE ASSEMBLYTRIGGER PALTE ASSEMBLY
-
4184-77617 HARNESS, PRIMARY (CYLINDERS 1 AND 2)HARNESS, PRIMARY (CYLINDERS 1 AND 2)
-
4284-77618 HARNESS, PRIMARY (CYLINDERS 3 AND 4)HARNESS, PRIMARY (CYLINDERS 3 AND 4)
-
4354-45806 CLAMP, HARNESS ATTACHINGCLAMP, HARNESS ATTACHING
-
4410-48408 SCREW, CLAMP TO CRANKCASE (1/2")SCREW, CLAMP TO CRANKCASE (1/2")
-
458M0084613 "D" WASHER,HARNESS CLAMP SCREW"D" WASHER,HARNESS CLAMP SCREW
-
4684-813715A1 WIRE ASSEMBLY, SPARK PLUGWIRE ASSEMBLY, SPARK PLUG
-
47332-2854T01 BOOT, IGNITION COILBOOT, IGNITION COIL
-
4885-63709A1 PROTECTOR ASS'Y , SPARK PLUGPROTECTOR ASS'Y , SPARK PLUG
-
4933-97182Q SPARK PLUG (AC#V40FFK)
FOR CANADA AND BELGIU , USE 33-68098 (CHAMPION #QL-76V)SPARK PLUG (AC#V40FFK)
FOR CANADA AND BELGIU , USE 33-68098 (CHAMPION #QL-76V) -
5078278 RETAINER, WIRERETAINER, WIRE
-
5110-48408 SCREW, WIRE RETAINERSCREW, WIRE RETAINER
-
5212-21273 WASHER, WIRE RETAINERWASHER, WIRE RETAINER
-
5212-21273 WASHER, WIRE RETAINER SCREWWASHER, WIRE RETAINER SCREW
-
5363319 RETAINER, SPARK PLUG WIRERETAINER, SPARK PLUG WIRE
-
5410-46378 SCREW, RETAINER TO CYLINDER BLOCK COVER(1")SCREW, RETAINER TO CYLINDER BLOCK COVER(1")
-
5511-20013 NUT, RETAINER SCREWNUT, RETAINER SCREW
