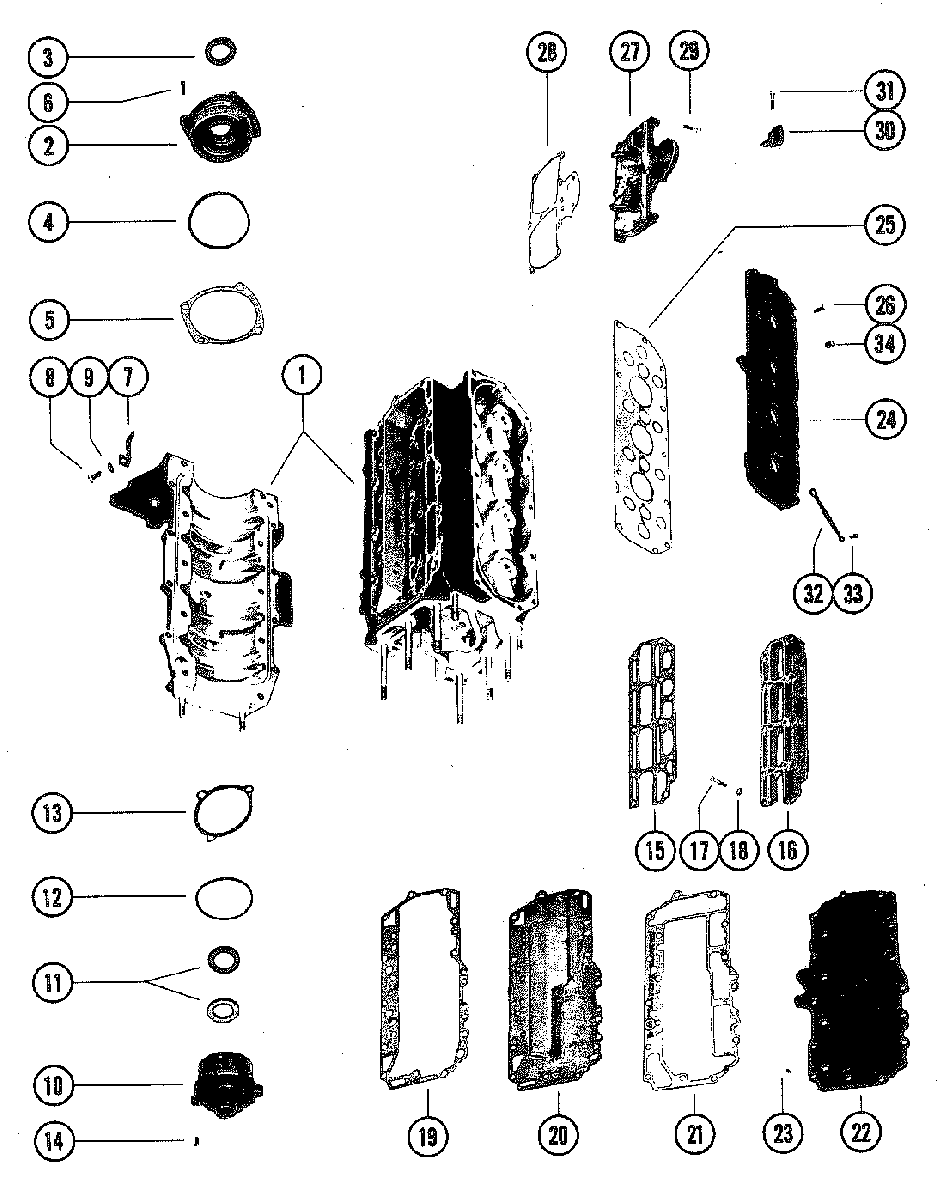

END CAPS, MANIFOLD AND EXHAUST COVER для Mariner - 80 7162528 THRU 7208572

  • №
    Артикул
    Название
  • 1
    871-8338A3 BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6076351 AND BELOW
    CANADA 7188282 AND BELOW
    BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6076351 AND BELOW
    CANADA 7188282 AND BELOW
  • 1
    871-8338A3 BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6076352 AND UP
    CANADA 7188283 AND UP
    BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6076352 AND UP
    CANADA 7188283 AND UP
  • 2
    1161-5940A2 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 3
    26-41953 OIL SEAL
    OIL SEAL
  • 4
    25-47254 "O"RING
    "O"RING
  • 5
    15-73644A1 SHIM, END CAP TO CRANKCASE (.006-10)
    SHIM, END CAP TO CRANKCASE (.006-10)
  • 6
    10-812618 SCREW, UPPER END CAP (1")
    SCREW, UPPER END CAP (1")
  • 7
    43352 POINTER, TIMING
    POINTER, TIMING
  • 8
    10-65746 SCREW, TIMING POINTER (3/4")
    SCREW, TIMING POINTER (3/4")
  • 9
    12-20533 WASHER, TIMING POINTER SCREW
    WASHER, TIMING POINTER SCREW
  • 10
    1148-5410T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 11
    26-41953 OIL SEAL
    OIL SEAL
  • 12
    25-32546 "O"RING
    "O"RING
  • 13
    15-20085A1 SHIM, END CAP TO CRANKCASE (.005-10)
    SHIM, END CAP TO CRANKCASE (.005-10)
  • 14
    10-30225 SCREW, LOWER END CAP (1")
    SCREW, LOWER END CAP (1")
  • 15
    27-73665 GASKET, WATER JACKET COVER
    GASKET, WATER JACKET COVER
  • 16
    76198 COVER, WATER JACKET-CYLINDER BLOCK
    COVER, WATER JACKET-CYLINDER BLOCK
  • 17
    10-53167T SCREW, WATER JACKET COVER (7/8")
    SCREW, WATER JACKET COVER (7/8")
  • 18
    12-8M0042642 WASHER, WATER JACKET COVER SCREW
    WASHER, WATER JACKET COVER SCREW
  • 19
    27-854981 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 20
    73436 PLATE, BAFFLE
    PLATE, BAFFLE
  • 21
    27-854961 GASKET, BAFFLE PLATE TO EXHAUST COVER
    GASKET, BAFFLE PLATE TO EXHAUST COVER
  • 22
    78277A1 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 23
    10-53576 SCREW, MANIFOLD COVER (1-1/8")
    SCREW, MANIFOLD COVER (1-1/8")
  • 24
    1021-7699 COVER, CYLINDER BLOCK
    UNITED STATES 6076351 AND BELOW
    CANADA 7188282 AND BELOW
    COVER, CYLINDER BLOCK
    UNITED STATES 6076351 AND BELOW
    CANADA 7188282 AND BELOW
  • 25
    27-85493 GASKET, CYLINDER BLOCK COVER
    UNITED STATES 6076351 AND BELOW
    CANADA 7188282 AND BELOW
    GASKET, CYLINDER BLOCK COVER
    UNITED STATES 6076351 AND BELOW
    CANADA 7188282 AND BELOW
  • 24
    1021-8340 COVER, CYLINDER BLOCK
    UNITED STATES 6076352 AND UP
    CANADA 7188283 AND UP
    COVER, CYLINDER BLOCK
    UNITED STATES 6076352 AND UP
    CANADA 7188283 AND UP
  • 25
    27-961711 GASKET, CYLINDER BLOCK COVER
    UNITED STATES 6076352 AND UP
    CANADA 7188283 AND UP
    GASKET, CYLINDER BLOCK COVER
    UNITED STATES 6076352 AND UP
    CANADA 7188283 AND UP
  • 26
    10-76630 SCREW, CYLINDER BLOCK COVER (1")
    SCREW, CYLINDER BLOCK COVER (1")
  • 27
    733201 COVER, TRANSFER PORT-TOP
    COVER, TRANSFER PORT-TOP
  • 27
    87872 COVER, TRANSFER PORT-BOTTOM
    COVER, TRANSFER PORT-BOTTOM
  • 28
    27-73645 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 29
    10-49668 SCREW, TRANSFER PORT COVER (3/4")
    SCREW, TRANSFER PORT COVER (3/4")
  • 30
    37440 BRACKET, MOUNT SUPPORT-CYLINDER BLOCK
    BRACKET, MOUNT SUPPORT-CYLINDER BLOCK
  • 31
    10-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")
    SCREW, BRACKET TO CYLINDER BLOCK (1")
  • 32
    46933A3 GROUND STRAP ASEMBLY, EXHAUST COVER SCREW
    GROUND STRAP ASEMBLY, EXHAUST COVER SCREW
  • 33
    10-62568 SCREW, GROUND STRAP (3/8")
    SCREW, GROUND STRAP (3/8")
  • 34
    22-68307 PLUG, PIPE-CYLINDER BLOCK COVER
    PLUG, PIPE-CYLINDER BLOCK COVER
