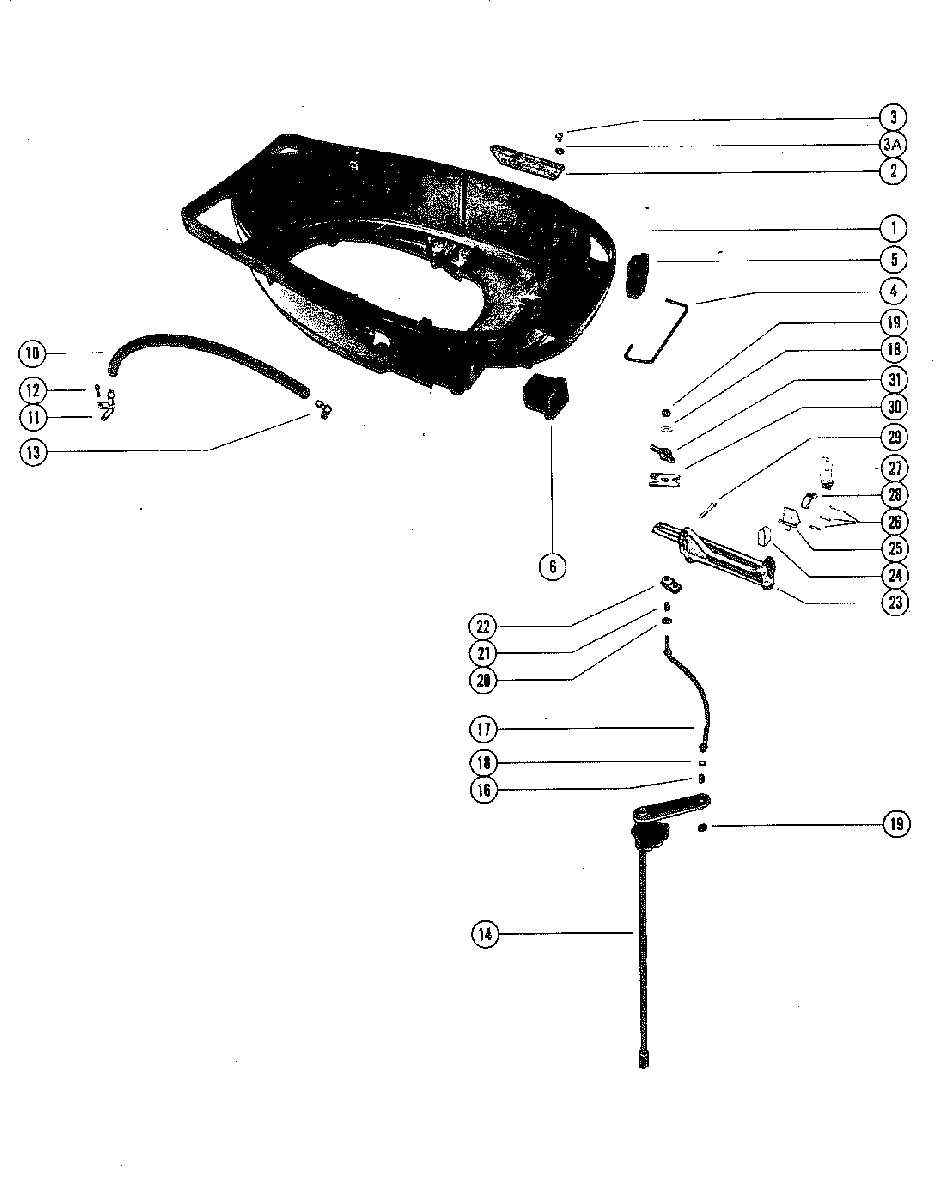

BOTTOM COWL AND SHIFT LINKAGE для Mariner - 80 7162528 THRU 7208572

  • №
    Артикул
    Название
  • 1
    2158-8708T COWL, BOTTOM
    COWL, BOTTOM
  • 2
    74303 COVER, AIR INLET
    COVER, AIR INLET
  • 3
    10-62568 SCREW, COVER TO BOTTOM COWL (3/8")
    SCREW, COVER TO BOTTOM COWL (3/8")
  • 3A
    12-30164 WASHER, COVER SCREW
    WASHER, COVER SCREW
  • 4
    27-73646 GASKET, BOTTOM COWL
    GASKET, BOTTOM COWL
  • 5
    39616 BOOT, CONTROL CABLES - BOTTOM COWL
    BOOT, CONTROL CABLES - BOTTOM COWL
  • 6
    37637 BOOT, FUEL CONNECTOR - BOTTOM COWL
    BOOT, FUEL CONNECTOR - BOTTOM COWL
  • 10
    32-8M0108355 HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (14-3/4")
    HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (14-3/4")
  • 11
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 12
    10-48408 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
  • 13
    22-782792 ELBOW, TELL TALE HOSE TO CYLINDER BLOCK
    ELBOW, TELL TALE HOSE TO CYLINDER BLOCK
  • 14
    60304A54 SHIFT SHAFT ASSEMBLY, UPPER
    SHIFT SHAFT ASSEMBLY, UPPER
  • 16
    23-26856 BUSHING, SHIFT SHAFT
    BUSHING, SHIFT SHAFT
  • 17
    73402 SHIFT LINK
    SHIFT LINK
  • 18
    12-35462 WASHER, LINK ROD (SHIFT LEVER END)
    WASHER, LINK ROD (SHIFT LEVER END)
  • 19
    11-36069 NUT, LINK ROD
    NUT, LINK ROD
  • 20
    13-29720 WASHER, WAVE - LINK ROD
    WASHER, WAVE - LINK ROD
  • 21
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 22
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 23
    52732A6 BRACKET, ANCHOR - CONTROL CABLES
    BRACKET, ANCHOR - CONTROL CABLES
  • 24
    39519 CAP, BARREL RETAINER - ANCHOR
    CAP, BARREL RETAINER - ANCHOR
  • 25
    87609A1 LEVER, NYLON - SHIFT CABLE LOCKING
    LEVER, NYLON - SHIFT CABLE LOCKING
  • 26
    17-47175 PIN, LOCKING LEVER AND COVER FASTENING
    PIN, LOCKING LEVER AND COVER FASTENING
  • 27
    39667 COVER, NYLON - SHIFT CABLE
    COVER, NYLON - SHIFT CABLE
  • 28
    87609A1 LINK, LOCKING LEVER TO COVER
    LINK, LOCKING LEVER TO COVER
  • 29
    10-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
  • 30
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 31
    8M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
    LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
