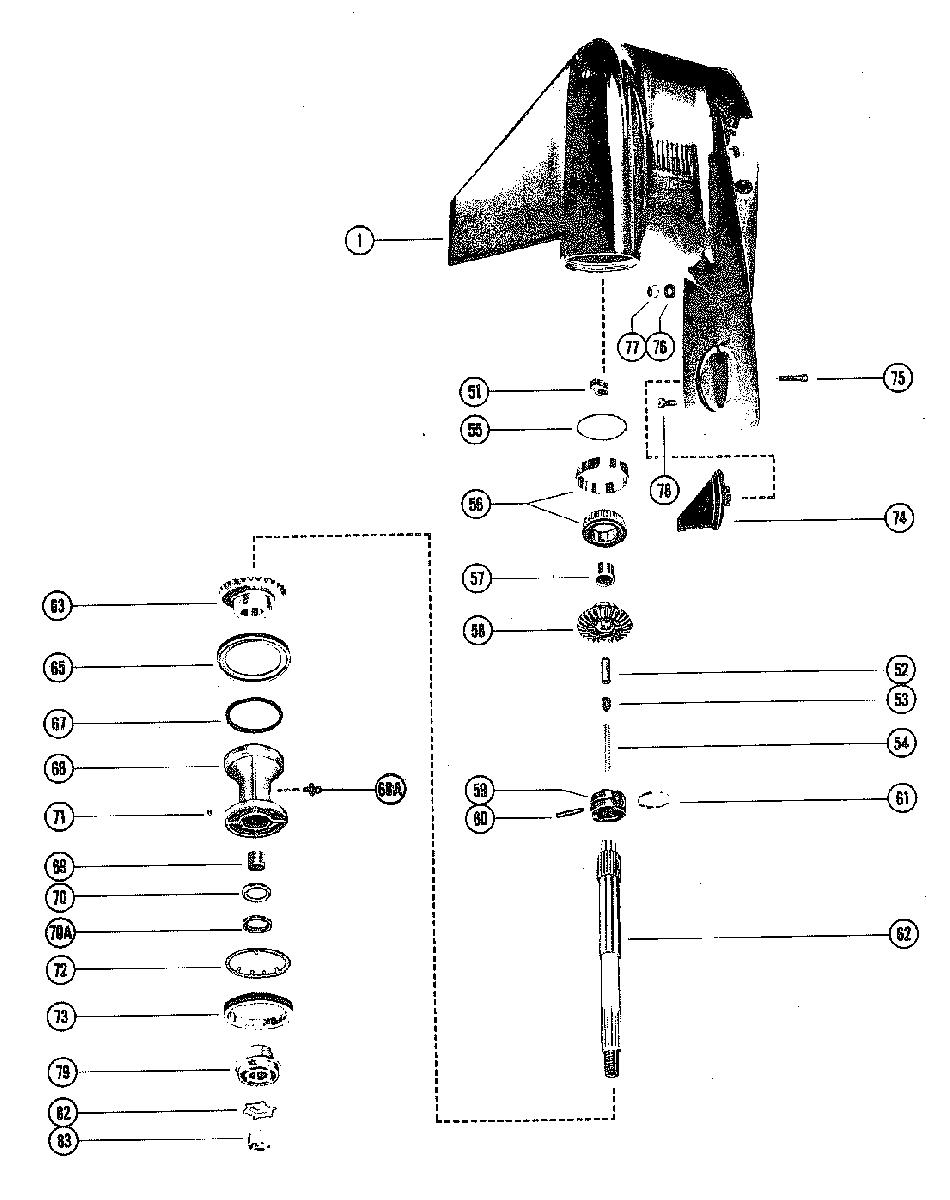

GEAR HOUSING (PROPELLER SHAFT) для Mariner - 80 5763341 THRU 6432900

  • №
    Артикул
    Название
  • -
    1655-7333A41 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • 1
    1655-7333A43 GEAR HOUSING ASS'Y - SEE PAGE 34 FOR BREAKDOWN
    GEAR HOUSING ASS'Y - SEE PAGE 34 FOR BREAKDOWN
  • 51
    760394 SHIFT CAM
    SHIFT CAM
  • 52
    30625 CAM FOLLOWER
    CAM FOLLOWER
  • 53
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 54
    24-30622 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 55
    15-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)
  • 56
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 57
    31-30895T ROLLER BEARING, FORWARD GEAR
    ROLLER BEARING, FORWARD GEAR
  • 58
    43-75314T2 FORWARD GEAR
    FORWARD GEAR
  • 59
    52-822539T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 60
    17-8M0100263 CROSS PIN, RATCHET TO PROPELLER SHAFT
    CROSS PIN, RATCHET TO PROPELLER SHAFT
  • 61
    24-30893 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 62
    44-93003 PROPELLER SHAFT
    PROPELLER SHAFT
  • 63
    43-77562T REVERSE GEAR
    REVERSE GEAR
  • 65
    12-76358 THRUST WASHER, BEARING CARRIER TO GEAR HOUSING
    THRUST WASHER, BEARING CARRIER TO GEAR HOUSING
  • 67
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 68
    41529T2 BEARING CARRIER ASSEMBLY (W/O GREASE FITTING)
    BEARING CARRIER ASSEMBLY (W/O GREASE FITTING)
  • 68
    41529T2 BEARING CARRIER ASSEMBLY W/GREASE FITTING
    BEARING CARRIER ASSEMBLY W/GREASE FITTING
  • 68A
    22-98727 GREASE FITTING W/GREASE FITTING
    GREASE FITTING W/GREASE FITTING
  • 69
    31-30956T ROLLER BEARING, BEARING CARRIER
    ROLLER BEARING, BEARING CARRIER
  • 70
    26-76868 OIL SEAL, BEARING CARRIER - INNER
    OIL SEAL, BEARING CARRIER - INNER
  • 70A
    26-70081 OIL SEAL, BEARING CARRIER - OUTER
    OIL SEAL, BEARING CARRIER - OUTER
  • 71
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 72
    14-52700 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 73
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 74
    97-31640Q4 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 75
    10-66024 SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")
  • 76
    12-45176 WASHER, DRIVE SHAFT HOUSING STUDS
    WASHER, DRIVE SHAFT HOUSING STUDS
  • 77
    11-34933 NUT, DRIVE SHAFT HOUSING STUDS
    NUT, DRIVE SHAFT HOUSING STUDS
  • 78
    10-65210 SCREW, GEAR HOUSING (1")
    SCREW, GEAR HOUSING (1")
  • 79
    13191Q01 THRUST HUB
    THRUST HUB
  • 82
    14-816629Q TAB WASHER, PROPELLER N UT
    TAB WASHER, PROPELLER N UT
  • 83
    11-52707Q1 PROPELLER NUT
    PROPELLER NUT
