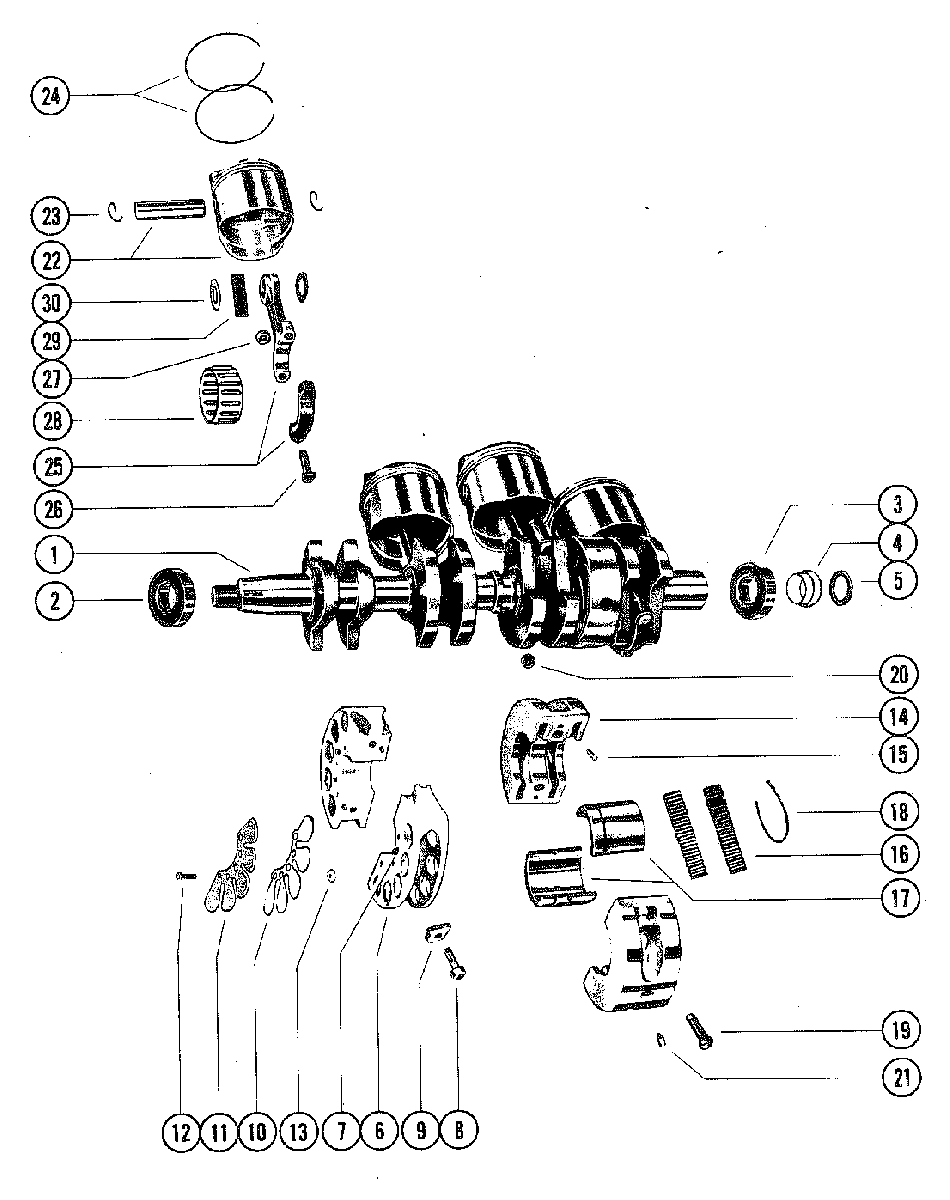

CRANKSHAFT, PISTON AND CONNECTING ROD для Mariner - 80 5763341 THRU 6432900

  • №
    Артикул
    Название
  • 1
    440-9074A2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-62567T BALL BEARING, UPPER
    BALL BEARING, UPPER
  • 3
    30-63742T BALL BEARING, LOWER
    BALL BEARING, LOWER
  • 4
    54196A6 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 5
    65800 PACKING, CARRIER
    PACKING, CARRIER
  • 6
    540-5266T5 MAIN BEARING ASSEMBLY (VALVE TYPE)
    MAIN BEARING ASSEMBLY (VALVE TYPE)
  • 7
    17-20032 DOWEL PIN, MAIN BEARING
    DOWEL PIN, MAIN BEARING
  • 8
    10-45775 SCREW, MAIN BEARING CLAMPING
    SCREW, MAIN BEARING CLAMPING
  • 9
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 10
    34-56007A1 REED SET, MATCHED - MAIN BEARING
    REED SET, MATCHED - MAIN BEARING
  • 11
    34-56008 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 12
    10-62204 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 13
    11-53153 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 14
    535-5397A4 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 15
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    DOWEL PIN, CENTER MAIN BEARING
  • 16
    29-714221 NEEDLE BEARING
    NEEDLE BEARING
  • 17
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 18
    53-26933 SNAP RING, OUTER RACE CLAMPING
    SNAP RING, OUTER RACE CLAMPING
  • 19
    10-22968 SCREW, CENTER MAIN BEARING CLAMPING
    SCREW, CENTER MAIN BEARING CLAMPING
  • 20
    11-20184 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 21
    17-47246 DOWEL PIN, STEPPED
    DOWEL PIN, STEPPED
  • 22
    774-9137A12 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 22
    774-9137A13 PISTON AND PISTON PIN ASSEMBLY (.015 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.015 O.S.)
  • 22
    774-9137A14 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
  • 23
    53-857196 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 24
    39-78816A12 PISTON RING (STANDARD)
    PISTON RING (STANDARD)
  • 24
    39-88392A12 PISTON RING (.030 O.S.)
    PISTON RING (.030 O.S.)
  • 24
    39-78811A12 PISTON RING (.015 O.S.)
    PISTON RING (.015 O.S.)
  • 25
    624-8101A3 CONNECTING ROD AND CAP ASSEMBLY
    CONNECTING ROD AND CAP ASSEMBLY
  • 26
    10-54803 SCREW, CONNECTING ROD -WITH NUT
    SCREW, CONNECTING ROD -WITH NUT
  • 27
    11-49091 NUT, CONNECTING ROD SCREW -WITH NUT
    NUT, CONNECTING ROD SCREW -WITH NUT
  • 26
    10-91012 SCREW, CONNECTING ROD - W/O NUT
    SCREW, CONNECTING ROD - W/O NUT
  • 28
    31-62596A1 BEARING ASSEMBLY, CRANKPIN
    BEARING ASSEMBLY, CRANKPIN
  • 29
    29-47270 NEEDLE BEARING, PISTON PIN
    NEEDLE BEARING, PISTON PIN
  • 30
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
