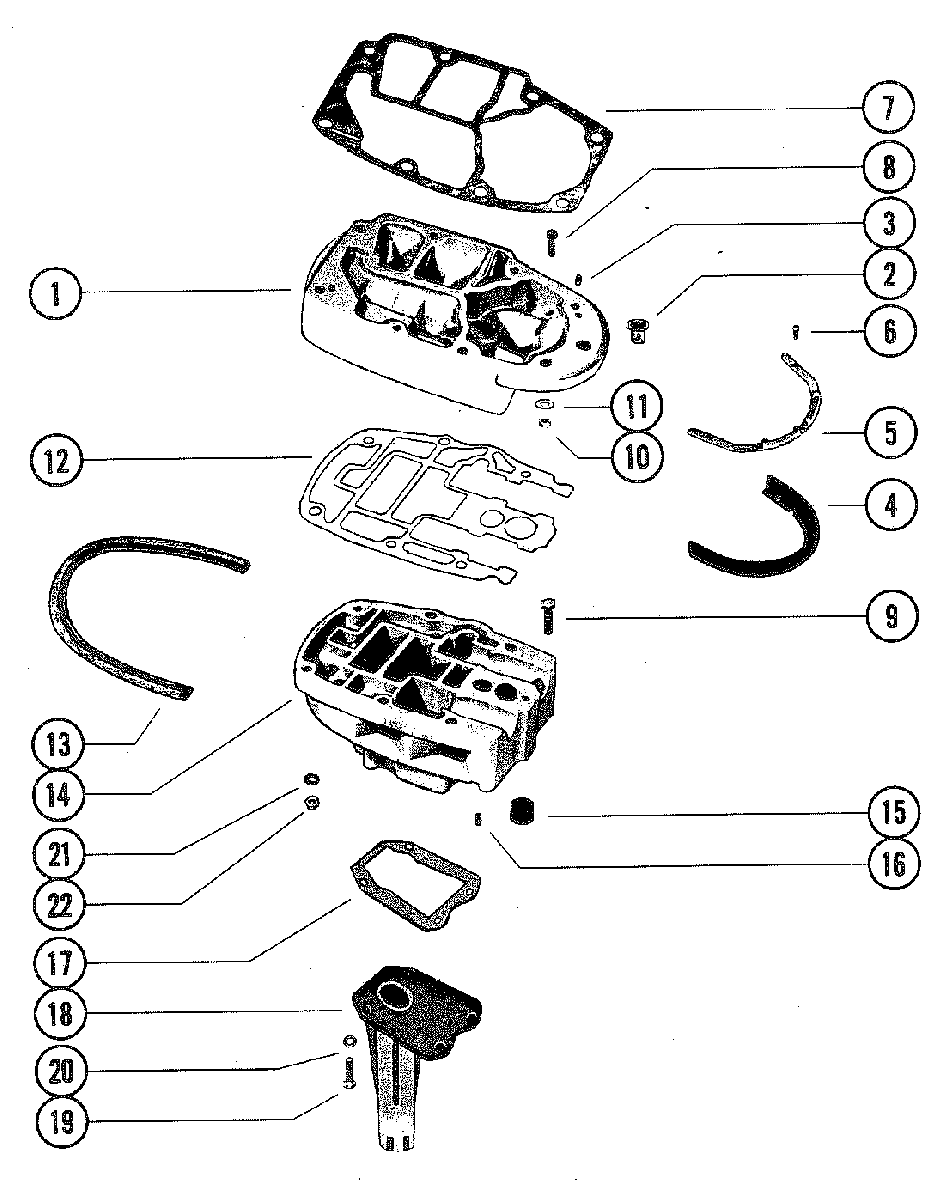

EXHAUST EXTENSION PLATE для Mariner - 80 5763341 THRU 6432900
-
№АртикулНазвание
-
143289A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
223-27132 BUSHING, NYLON - EXHAUST EXTENSION PLATEBUSHING, NYLON - EXHAUST EXTENSION PLATE
-
317-23784 DOWEL PIN, EXHAUST EXTENSION PLATEDOWEL PIN, EXHAUST EXTENSION PLATE
-
437918 SEAL, EXHAUST EXTENSION PLATESEAL, EXHAUST EXTENSION PLATE
-
599358 STRIP RETAINING - EXHAUST EXTENSION PLATESTRIP RETAINING - EXHAUST EXTENSION PLATE
-
610-37571 SCREW, SEAL AND RETAINING STRIP TO EXHAUST PLATE (1/2")SCREW, SEAL AND RETAINING STRIP TO EXHAUST PLATE (1/2")
-
727-692381 GASKET, POWERHEADGASKET, POWERHEAD
-
810-66023 SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")
-
910-66023 SCREW, HOUSING PLATE TO DRIVE SHAFT HOUSING (2")SCREW, HOUSING PLATE TO DRIVE SHAFT HOUSING (2")
-
1011-69254 NUT, CRANKCASE STUDSNUT, CRANKCASE STUDS
-
1112-20553 WASHER, CRANKCASE STUDSWASHER, CRANKCASE STUDS
-
1227-661021 GASKET, DRIVE SHAFT HOUSING PLATEGASKET, DRIVE SHAFT HOUSING PLATE
-
1326-60898 SEAL, DRIVE SHAFT HOUSING PLATESEAL, DRIVE SHAFT HOUSING PLATE
-
1443290A4 PLATE ASSEMBLY, DRIVE SHAFT HOUSINGPLATE ASSEMBLY, DRIVE SHAFT HOUSING
-
1526-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
1617-23784 DOWEL PIN, DRIVE SHAFT HOUSING PLATEDOWEL PIN, DRIVE SHAFT HOUSING PLATE
-
1727-69860 GASKET, EXHAUST TUBEGASKET, EXHAUST TUBE
-
1899698 EXHAUST TUBEEXHAUST TUBE
-
1910-65414 SCREW, EXHAUST TUBE TO DRIVE SHAFT HOUSING PLATE (3/4")SCREW, EXHAUST TUBE TO DRIVE SHAFT HOUSING PLATE (3/4")
-
2013-26992 LOCKWASHER, EXHAUST TUBE SCREWLOCKWASHER, EXHAUST TUBE SCREW
-
2112-20553 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
2211-82671013 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTON AND CONNECTING ROD
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- END CAPS, MANIFOLD AND EXHAUST COVER
- • EXHAUST EXTENSION PLATE
- FLYWHEEL, STATOR AND IGNITION COIL
- FUEL PUMP AND FUEL LINES
- GEAR HOUSING (DRIVE SHAFT)
- GEAR HOUSING (PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
- HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE)
- POWER TRIM COMPONENTS (WITHOUT CIRCUIT BREAKER AND FUSE)
- POWER TRIM CYLINDER REPAIR KITS (CASTING #78439)
- POWER TRIM CYLINDER REPAIR KITS (NO CASTING #)
- STARTER MOTOR AND WIRING HARNESS
- STARTER MOTOR ASSEMBLY (BOSCH)
- STARTER MOTOR ASSEMBLY (PRESTOLITE)
- SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND SPARK ADVANCE LEVER
- TOP COWL AND SUPPORT BRACKETS
- TRANSOM BRACKET
- TRIM CYLINDERS AND HYDRAULIC HOSES
