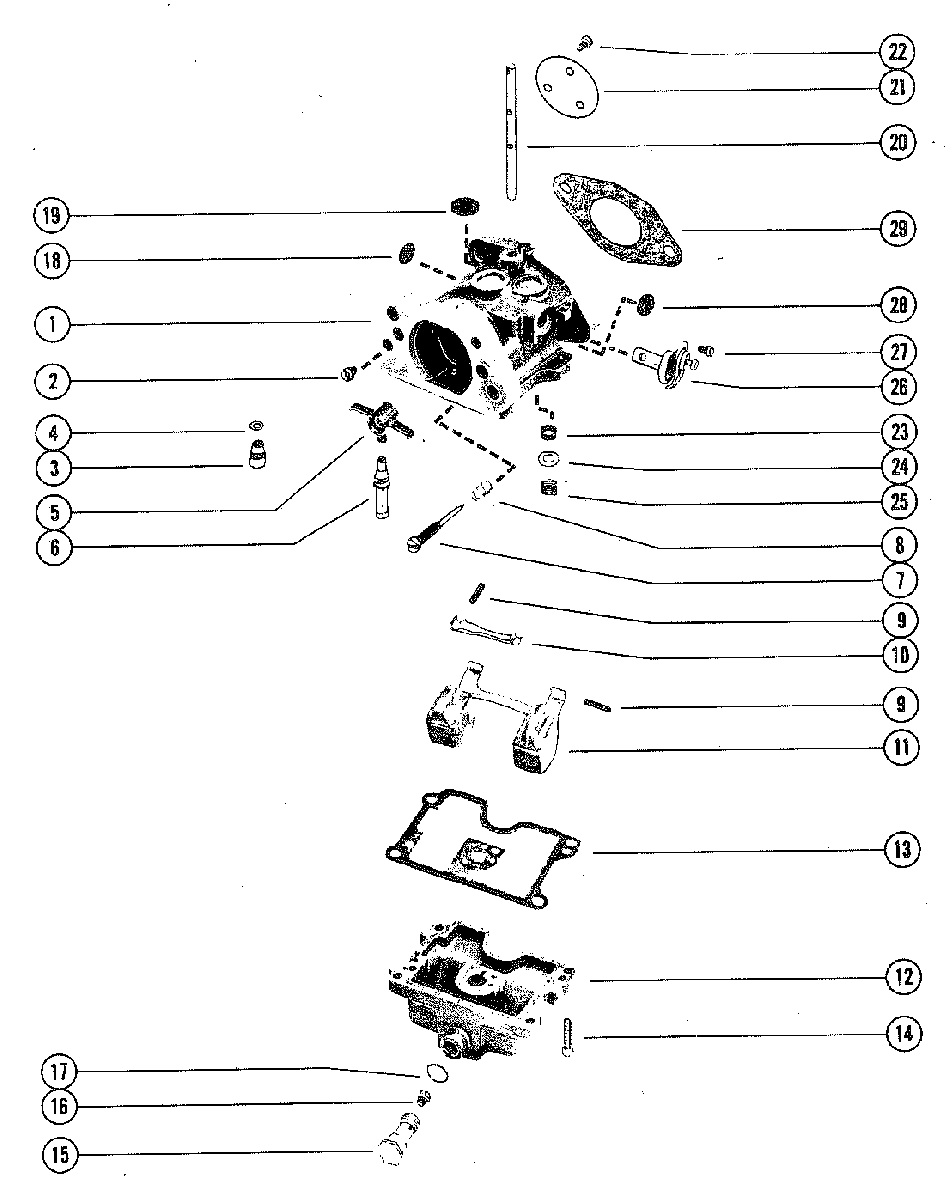

CARBURETOR ASSEMBLY для Mariner - 80 5763341 THRU 6432900

  • №
    Артикул
    Название
  • 1
    1379-6071A57 CARBURETOR ASSEMBLY (TOP)- STAMPED WM-12
    CARBURETOR ASSEMBLY (TOP)- STAMPED WM-12
  • 1
    1379-6071A58 CARBURETOR ASSEMBLY (BOTTOM) STAMPED WM-12
    CARBURETOR ASSEMBLY (BOTTOM) STAMPED WM-12
  • 1
    1379-6071A57 CARBURETOR ASSEMBLY (TOP)-STAMPED WM-14
    CARBURETOR ASSEMBLY (TOP)-STAMPED WM-14
  • 1
    1379-6071A58 CARBURETOR ASSEMBLY (BOTTOM) -STAMPED WM-14
    CARBURETOR ASSEMBLY (BOTTOM) -STAMPED WM-14
  • 2
    1395-6207 JET, VENT BOWL (.072) (WM-10)
    JET, VENT BOWL (.072) (WM-10)
  • 2
    1395-5733 JET, VENT BOWL (.092)(WM-12)(WM-14)
    JET, VENT BOWL (.092)(WM-12)(WM-14)
  • 3
    1395-83181 INLET NEEDLE AND SEAT
    INLET NEEDLE AND SEAT
  • 4
    90-8M0143356 GASKET, INLET NEEDLE AND SEAT
    GASKET, INLET NEEDLE AND SEAT
  • 5
    1395-6685 VENTURI(WM-10)
    VENTURI(WM-10)
  • 5
    52106A1 VENTURI (WM-12)(WM-14)
    VENTURI (WM-12)(WM-14)
  • 6
    90-8M0143356 NOZZLE
    NOZZLE
  • 7
    90-8M0143356 IDLE NEEDLE
    IDLE NEEDLE
  • 8
    90-8M0143356 SPRING, IDLE MIXTURE
    SPRING, IDLE MIXTURE
  • 9
    90-8M0143356 PIN, FLOAT
    PIN, FLOAT
  • 10
    90-8M0143356 LEVER, FLOAT
    LEVER, FLOAT
  • 11
    19273 FLOAT
    FLOAT
  • 12
    1395-6488 FUEL BOWL
    FUEL BOWL
  • 13
    90-8M0143356 GASKET, FUEL BOWL
    GASKET, FUEL BOWL
  • 14
    90-8M0143356 SCREW, FUWL BOWL
    SCREW, FUWL BOWL
  • 15
    1395-6199 PLUG, MAIN JET
    PLUG, MAIN JET
  • 16
    1395-6247 JET, MAIN (.090)(WM-10)
    JET, MAIN (.090)(WM-10)
  • 16
    1399-3518 JET, MAIN (.082)(WM-12)(WM-14)
    JET, MAIN (.082)(WM-12)(WM-14)
  • 17
    90-8M0143356 GASKET, MAIN JET PLUG
    GASKET, MAIN JET PLUG
  • 18
    90-8M0143356 SCREEN, FUEL INLET
    SCREEN, FUEL INLET
  • 19
    90-8M0143356 WELCK PLUG (9/16")
    WELCK PLUG (9/16")
  • 20
    1395-4807 SHAFT, THROTTLE (TOP)
    SHAFT, THROTTLE (TOP)
  • 20
    1395-7942 SHAFT, THROTTLE (BOTTOM)
    SHAFT, THROTTLE (BOTTOM)
  • 21
    1395-6196 VALVE, THROTTLE (WM-10)
    VALVE, THROTTLE (WM-10)
  • 21
    1395-7639 VALVE, THROTTLE (WM-12)(WM-14)
    VALVE, THROTTLE (WM-12)(WM-14)
  • 22
    90-8M0143356 SCREW, VALVE TO THROTTLE SHAFT
    SCREW, VALVE TO THROTTLE SHAFT
  • 23
    1395-6204 SEAL, THROTTLE SHAFT
    SEAL, THROTTLE SHAFT
  • 24
    1395-6203 WASHER, THROTTLE SHAFT
    WASHER, THROTTLE SHAFT
  • 25
    90-8M0143356 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 26
    1395-6198 VALVE ASSEMBLY, ENRICHMENT
    VALVE ASSEMBLY, ENRICHMENT
  • 27
    90-8M0143356 SCREW, ENRICHMENT BRACKET
    SCREW, ENRICHMENT BRACKET
  • 28
    90-8M0143356 WELCH PLUG (7/16")
    WELCH PLUG (7/16")
  • 29
    27-733771 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • --
    1395-6200 GASKET KIT
    GASKET KIT
  • --
    812953 REPAIR PARTS KIT (WM-10)
    REPAIR PARTS KIT (WM-10)
  • --
    812953 REPAIR PARTS KIT (WM-12)
    REPAIR PARTS KIT (WM-12)
  • --
    812953 REPAIR PARTS KIT (WM-14)
    REPAIR PARTS KIT (WM-14)
