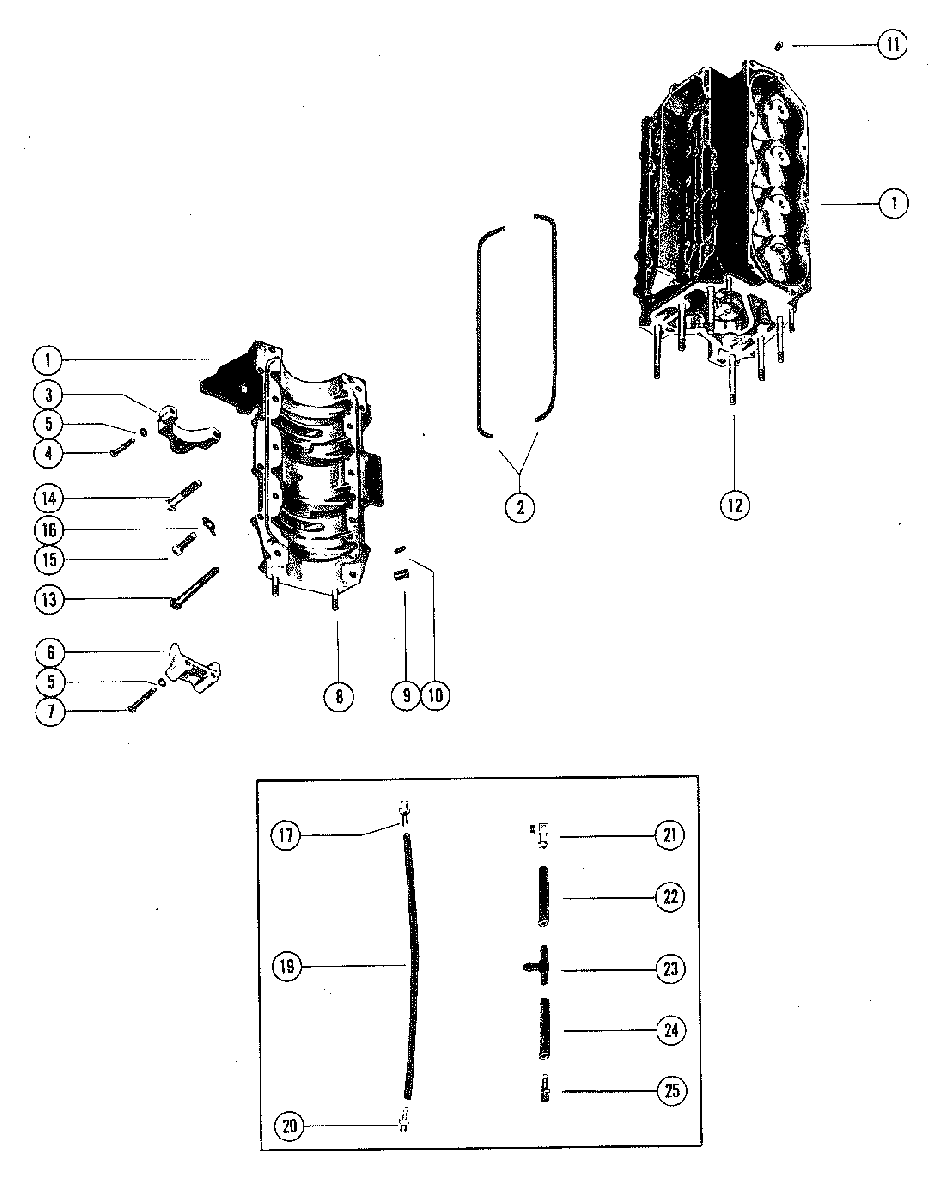

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mariner - 80 5763341 THRU 6432900

  • №
    Артикул
    Название
  • 1
    871-8338A3 BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6076351 AND BELOW
    CANADA 7188282 AND BELOW
    BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6076351 AND BELOW
    CANADA 7188282 AND BELOW
  • 1
    871-8338A3 BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6076352 AND UP
    CANADA 7188283 AND UP
    BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6076352 AND UP
    CANADA 7188283 AND UP
  • 2
    27-53650 GASKET, CRANKCASE TO CYLINDER BLOCK
    GASKET, CRANKCASE TO CYLINDER BLOCK
  • 3
    56029T COVER, STARTER MOTOR (UPPER)
    COVER, STARTER MOTOR (UPPER)
  • 4
    10-31984 SCREW, COVER TO CRANKCASE (1-3/8")
    SCREW, COVER TO CRANKCASE (1-3/8")
  • 4
    10-35385 SCREW, COVER TO CRANKCASE (1-3/4")
    SCREW, COVER TO CRANKCASE (1-3/4")
  • 5
    13-26993 LOCKWASHER, COVER SCREW
    LOCKWASHER, COVER SCREW
  • 6
    76867 COVER, STARTER MOTOR (LOWER)
    COVER, STARTER MOTOR (LOWER)
  • 7
    10-73279 SCREW, COVER TO CRANKCASE (1-7/8")
    SCREW, COVER TO CRANKCASE (1-7/8")
  • 7
    10-73658 SCREW, COVER TO CRANKCASE (5-1/2")
    SCREW, COVER TO CRANKCASE (5-1/2")
  • 8
    16-64281 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1-7/8")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1-7/8")
  • 9
    17-43044 PIN, DOWEL- CRANKCASE TO CYLINDER BLOCK
    PIN, DOWEL- CRANKCASE TO CYLINDER BLOCK
  • 10
    17-63779 PIN, DOWEL-CYLINDER BLOCK TO MAIN BEARING
    PIN, DOWEL-CYLINDER BLOCK TO MAIN BEARING
  • 11
    66517 RESTRICTOR, CRANKCASE BLEED
    RESTRICTOR, CRANKCASE BLEED
  • 12
    16-64282 STUD,CYLINDER BLOCK TO EXHAUST PLATE (4")
    STUD,CYLINDER BLOCK TO EXHAUST PLATE (4")
  • 13
    10-57841 SCREW, CRANKCASE TO CYLINDER BLOCK 92-3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK 92-3/4")
  • 13
    10-74824 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")
  • 14
    10-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
  • 15
    10-20359 SCREW, CENTER MAIN BEARING LOCKING (1")
    SCREW, CENTER MAIN BEARING LOCKING (1")
  • 16
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 17
    21-42866 CHECK VALVE, BLEED HOSE-TOP
    CHECK VALVE, BLEED HOSE-TOP
  • 19
    32-9938779 HOSE, CYLINDER BLEED (12-1/2")
    HOSE, CYLINDER BLEED (12-1/2")
  • 20
    21-428671 CHECK VALVE, BLEED HOSE-BOTTOM
    CHECK VALVE, BLEED HOSE-BOTTOM
  • 21
    22-996642 ELBOW, BALANCE HOSE TO CYLINDER BLOCK-UPPER
    ELBOW, BALANCE HOSE TO CYLINDER BLOCK-UPPER
  • 22
    32-8M0108355 HOSE ASSEMBLY, BALANCE (6-1/4")
    HOSE ASSEMBLY, BALANCE (6-1/4")
  • 23
    22-130342 TEE, BALANCE HOSE TO CYLINDER BLOCK-LOWER
    TEE, BALANCE HOSE TO CYLINDER BLOCK-LOWER
  • 24
    32-9938779 HOSE, BALANCE (5")
    HOSE, BALANCE (5")
  • 25
    22-56759 FITTING, AIR INLET COVER
    FITTING, AIR INLET COVER
