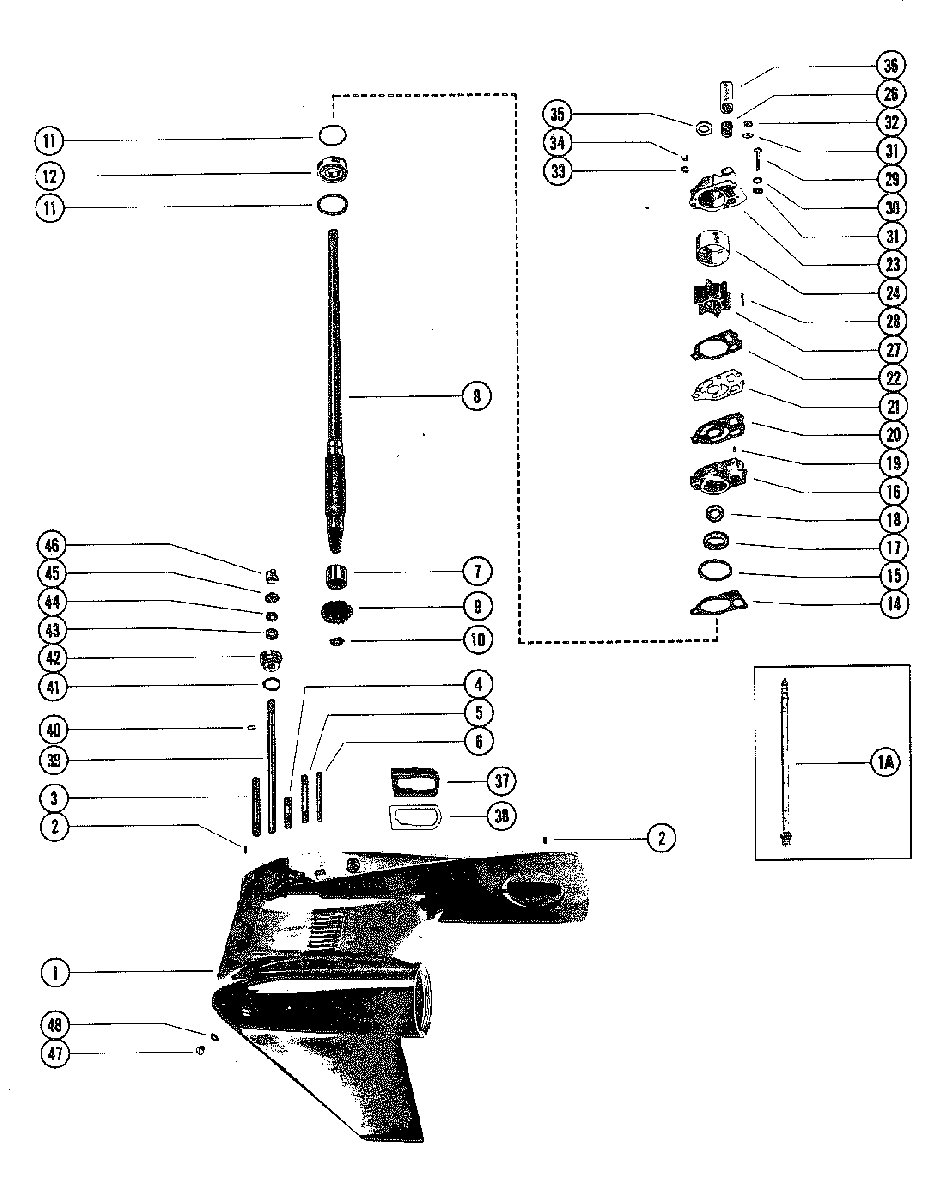

GEAR HOUSING (DRIVE SHAFT) для Mariner - 80 5763341 THRU 6432900
-
№АртикулНазвание
-
-1655-7333A41 GEAR HOUSING ASSEMBLY, COMPLETEGEAR HOUSING ASSEMBLY, COMPLETE
-
11655-7333A43 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
1A22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETERCONNECTOR ASSEMBLY, SPEEDOMETER
-
217-8M0084726 DOWEL PIN, GEAR HOUSING LOCATINGDOWEL PIN, GEAR HOUSING LOCATING
-
316-57921 STUD, GEAR HOUSING (4")STUD, GEAR HOUSING (4")
-
416-8M0133358 STUD, GEAR HOUSING (2-1/16")STUD, GEAR HOUSING (2-1/16")
-
516-8M0034463 STUD, WATER PUMP (3-3/8")STUD, WATER PUMP (3-3/8")
-
616-69501 STUD, WATER PUMP (3-1/8")STUD, WATER PUMP (3-1/8")
-
731-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
845-42646 DRIVE SHAFTDRIVE SHAFT
-
943-75316T PINION GEAR, DRIVE SHAFTPINION GEAR, DRIVE SHAFT
-
1011-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1123-70412 SPACER, BEARING TO WATER PUMPSPACER, BEARING TO WATER PUMP
-
1115-57007A1 SHIM, BEARING TO WATER PUMPSHIM, BEARING TO WATER PUMP
-
1231-69220T ROLLER BEARING, DRIVE SHAFTROLLER BEARING, DRIVE SHAFT
-
1427-856704 GASKET, WATER PUMP TO GEAR HOUSINGGASKET, WATER PUMP TO GEAR HOUSING
-
1525-33145 "O" RING, WATER PUMP"O" RING, WATER PUMP
-
1646-96146A5 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1726-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1826-16977 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1917-8M0084627 DOWEL PIN, WATER PUMPDOWEL PIN, WATER PUMP
-
2027-8M0090319 GASKET, LOWER - WATER PUMPGASKET, LOWER - WATER PUMP
-
21324351 PLATE, FACE - WATER PUMPPLATE, FACE - WATER PUMP
-
2227-858524 GASKET, UPPER - WATER PUMPGASKET, UPPER - WATER PUMP
-
2346-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2448752T INSERT, WATER PUMPINSERT, WATER PUMP
-
2626-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2747-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2828-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2910-30720 SCREW, WATER PUMP (1/4-20 - HEX HEAD)SCREW, WATER PUMP (1/4-20 - HEX HEAD)
-
2910-96411 SCREW, WATER PUMP (14-8 - HEX WASHER HEAD)SCREW, WATER PUMP (14-8 - HEX WASHER HEAD)
-
3013-26992 LOCKWASHER, WATER PUMP SCREWLOCKWASHER, WATER PUMP SCREW
-
3112-29245 WASHER, WATER PUMP SCREW AND STUDWASHER, WATER PUMP SCREW AND STUD
-
3211-35888 NUT, WATER PUMP FASTENING SCREWNUT, WATER PUMP FASTENING SCREW
-
3312-36001 WASHER, WATER PUMP STUDWASHER, WATER PUMP STUD
-
3411-82670911 NUT, WATER PUMP STUDNUT, WATER PUMP STUD
-
3525-30271 RING, RUBBER DRIVE SHAFTRING, RUBBER DRIVE SHAFT
-
3623-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3737641001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
3838051 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
3976062A1 SHAFT ASSEMBLY, SHIFTSHAFT ASSEMBLY, SHIFT
-
4053-29641 "E" RING, RETAINING - SHIFT SHAFT"E" RING, RETAINING - SHIFT SHAFT
-
4125-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4223-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4326-8164641 OIL SEAL, SHIFT SHAFT HOUSINGOIL SEAL, SHIFT SHAFT HOUSING
-
4412-77674 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4578036 SPACER, LOWER - REVERSE LOCKING-NOT USED WITH POWER TRIMSPACER, LOWER - REVERSE LOCKING-NOT USED WITH POWER TRIM
-
4643308T1 CAM, REVERSE LOCKING- NOT USED WITH POWER TRIMCAM, REVERSE LOCKING- NOT USED WITH POWER TRIM
-
4710-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
4722-8M0058389 SCREW, DRAIN (MAGNETIC)SCREW, DRAIN (MAGNETIC)
-
4812-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
