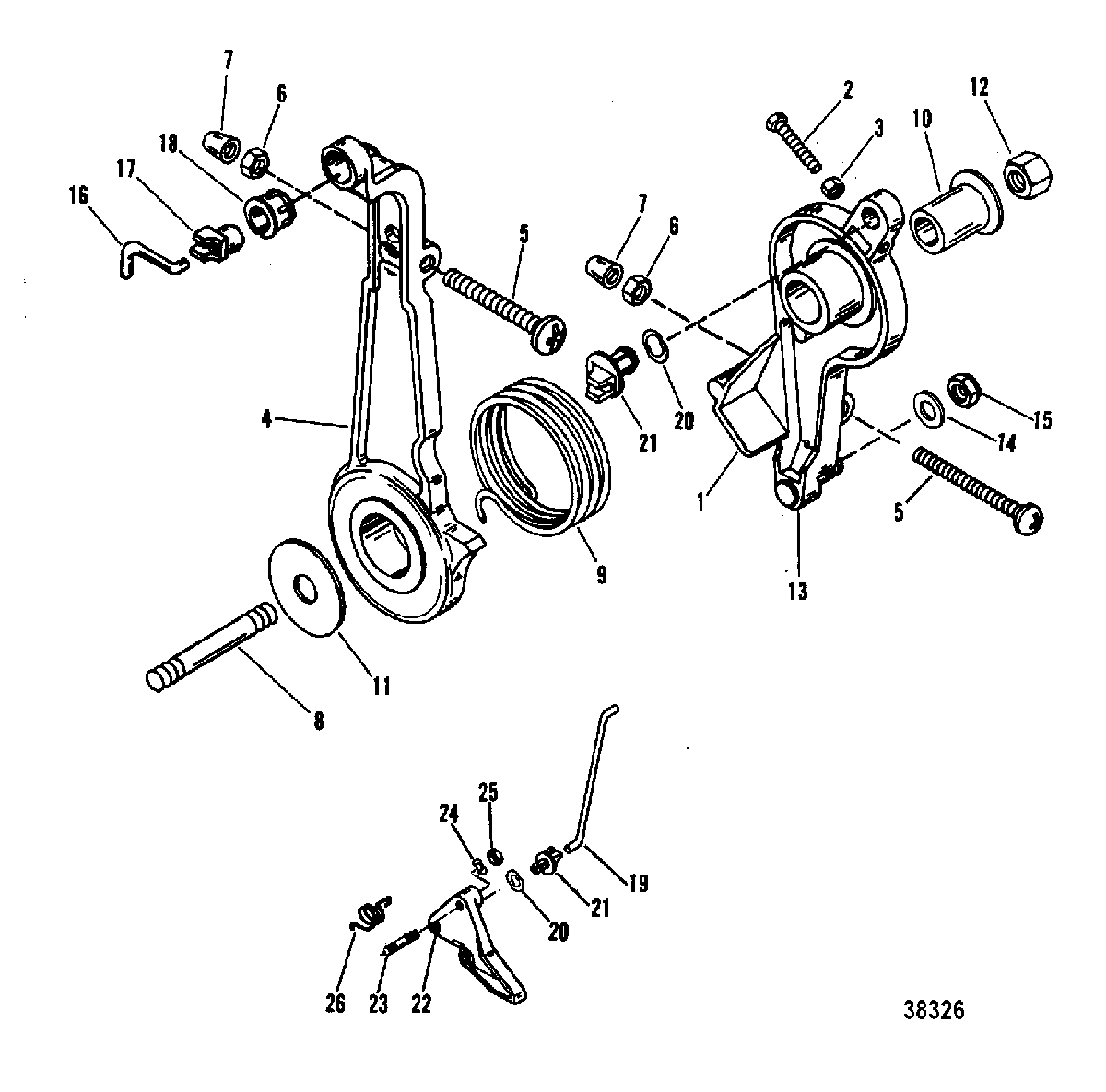

THROTTLE LEVER AND LINKAGE для Mariner - 80 (3 CYL.) 0A996142 THRU 0B240450

  • №
    Артикул
    Название
  • 1
    42946T1 LEVER, THROTTLE
    LEVER, THROTTLE
  • 2
    10-817582 SCREW, ADJUSTING
    SCREW, ADJUSTING
  • 3
    11-400211 NUT, (M5), JAM-ADJUSTING SCREW
    NUT, (M5), JAM-ADJUSTING SCREW
  • 4
    429471 LEVER, SPARK ADVANCE
    LEVER, SPARK ADVANCE
  • 5
    10-814776 SCREW, ADJUSTING
    SCREW, ADJUSTING
  • 6
    11-400212 NUT, JAM-ADJUSTING SCREW
    NUT, JAM-ADJUSTING SCREW
  • 7
    42942 CAP, NYLON-ADJUSTING
    CAP, NYLON-ADJUSTING
  • 8
    16-42986 STUD, LEVERS
    STUD, LEVERS
  • 9
    24-55162 SPRING, THROTTLE/SPARK ADVANCE LEVER
    SPRING, THROTTLE/SPARK ADVANCE LEVER
  • 10
    23-812930A1 BUSHING, LEVER STUD
    BUSHING, LEVER STUD
  • 11
    12-42980 WASHER, LEVER STUD
    WASHER, LEVER STUD
  • 12
    11-90517 NUT, (M10), LEVER STUD
    NUT, (M10), LEVER STUD
  • 13
    42927 INSERT, THROTTLE LEVER
    INSERT, THROTTLE LEVER
  • 14
    12-35459 WASHER, THROTTLE LEVER PIN
    WASHER, THROTTLE LEVER PIN
  • 15
    11-401386 NUT, (M6), THROTTLE LEVER PIN
    NUT, (M6), THROTTLE LEVER PIN
  • 16
    878172 ROD, SPARK ADVANCE
    ROD, SPARK ADVANCE
  • 17
    93421 SWIVEL BALL
    SWIVEL BALL
  • 18
    93254 SWIVEL BASE
    SWIVEL BASE
  • 19
    878420T ROD, THROTTLE
    ROD, THROTTLE
  • 20
    13-25806 WAVE WASHER, SWIVEL BUSHING
    WAVE WASHER, SWIVEL BUSHING
  • 21
    23-932481 BUSHING, SWIVEL
    BUSHING, SWIVEL
  • 22
    42948A7 CAM, THROTTLE
    CAM, THROTTLE
  • 23
    16-8161949 STUD, THROTTLE CAM
    STUD, THROTTLE CAM
  • 24
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel, THROTTLE CAM STUD
    WASHER, (.255 x .620 x .030) Stainless Steel, THROTTLE CAM STUD
  • 25
    11-401386 NUT, (M6), THROTTLE CAM STUD
    NUT, (M6), THROTTLE CAM STUD
  • 26
    24-14159 SPRING, CAM RETURN
    SPRING, CAM RETURN
