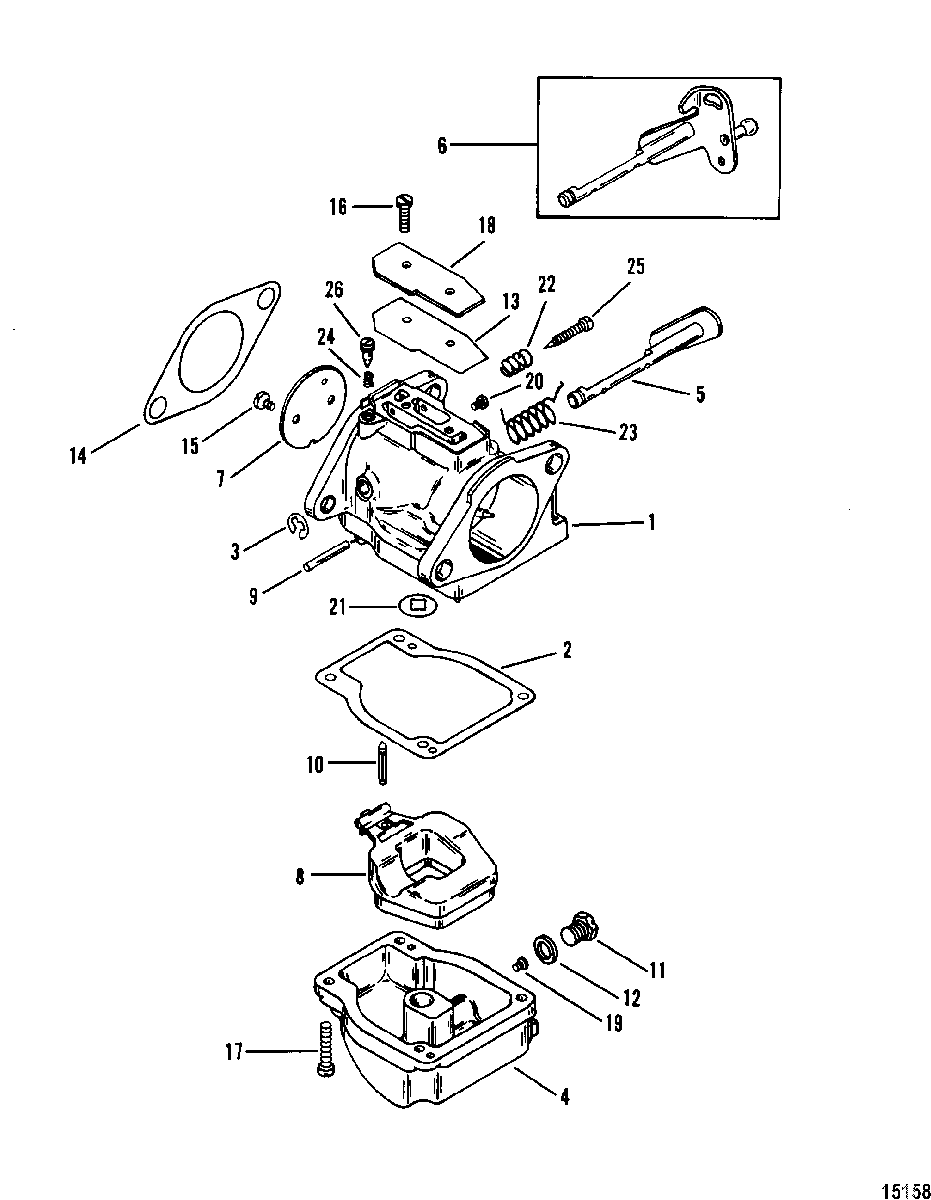

CARBURETOR для Mariner - 80 (3 CYL.) 0A996142 THRU 0B240450

  • №
    Артикул
    Название
  • 1
    3301-9012A14 CARBURETOR ASSEMBLY
    (UPPER) 70 - WME-4
    CARBURETOR ASSEMBLY
    (UPPER) 70 - WME-4
  • 1
    3301-9012A15 CARBURETOR ASSEMBLY
    (MIDDLE)70 - WME-4
    CARBURETOR ASSEMBLY
    (MIDDLE)70 - WME-4
  • 1
    3301-9012A16 CARBURETOR ASSEMBLY
    (LOWER)70 - WME-4
    CARBURETOR ASSEMBLY
    (LOWER)70 - WME-4
  • 1
    3301-9012A71 CARBURETOR
    (UPPER) 75 - WME-6
    CARBURETOR
    (UPPER) 75 - WME-6
  • 1
    3301-9012A72 CARBURETOR ASSEMBLY
    (MIDDLE) 75 - WME-6
    CARBURETOR ASSEMBLY
    (MIDDLE) 75 - WME-6
  • 1
    3301-9012A73 CARBURETOR ASSEMBLY
    (LOWER) 75 - WME-6
    CARBURETOR ASSEMBLY
    (LOWER) 75 - WME-6
  • 1
    3301-9012A5 CARBURETOR ASSEMBLY
    (UPPER) 80 - WME-1
    CARBURETOR ASSEMBLY
    (UPPER) 80 - WME-1
  • 1
    3301-9012A6 CARBURETOR ASSEMBLY
    (MIDDLE) 80 - WME-1
    CARBURETOR ASSEMBLY
    (MIDDLE) 80 - WME-1
  • 1
    3301-9012A7 CARBURETOR ASSEMBLY
    (LOWER) 80 - WME-1
    CARBURETOR ASSEMBLY
    (LOWER) 80 - WME-1
  • 1
    3301-9012A17 CARBURETOR ASSEMBLY
    (UPPER) 90 - WME-5
    CARBURETOR ASSEMBLY
    (UPPER) 90 - WME-5
  • 1
    3301-9012A18 CARBURETOR ASSEMBLY
    (MIDDLE) 90 - WME-5
    CARBURETOR ASSEMBLY
    (MIDDLE) 90 - WME-5
  • 1
    3301-9012A19 CARBURETOR ASSEMBLY
    (LOWER) 90 - WME-5
    CARBURETOR ASSEMBLY
    (LOWER) 90 - WME-5
  • 2
    NSS NOT SOLD SEPARATE, GASKET-FUEL BOWL
    NOT SOLD SEPARATE, GASKET-FUEL BOWL
  • 3
    NSS NOT SOLD SEPARATE, RETAINING RING
    NOT SOLD SEPARATE, RETAINING RING
  • 4
    1395-811696 BOWL, Fuel
    (UPPER)
    BOWL, Fuel
    (UPPER)
  • 4
    1395-811693 BOWL, Fuel
    (MIDDLE/LOWER)
    BOWL, Fuel
    (MIDDLE/LOWER)
  • 5
    1395-9591 SHAFT, Throttle (UPPER/LOWER)
    SHAFT, Throttle (UPPER/LOWER)
  • 6
    19270 SHAFT, Throttle (MIDDLE)
    SHAFT, Throttle (MIDDLE)
  • 7
    1395-9593 VALVE, Throttle
    (WME-1/WME-6)
    VALVE, Throttle
    (WME-1/WME-6)
  • 7
    1395-9609 VALVE, Throttle
    (WME-4/WME-5)
    VALVE, Throttle
    (WME-4/WME-5)
  • 8
    1395-9594 FLOAT
    FLOAT
  • 9
    NSS NOT SOLD SEPARATE, FLOAT SHAFT
    NOT SOLD SEPARATE, FLOAT SHAFT
  • 10
    1395-879194011 VALVE, Inlet Needle
    VALVE, Inlet Needle
  • 11
    1395-811694 PLUG, MAIN JET
    PLUG, MAIN JET
  • 12
    NSS NOT SOLD SEPARATE, GASKET-PLUG
    NOT SOLD SEPARATE, GASKET-PLUG
  • 13
    NSS NOT SOLD SEPARATE, GASKET-COVER PLATE
    NOT SOLD SEPARATE, GASKET-COVER PLATE
  • 14
    27-151724 GASKET, FLANGE
    GASKET, FLANGE
  • 15
    NSS NOT SOLD SEPARATE, SCREW-THROTTLE VALVE
    NOT SOLD SEPARATE, SCREW-THROTTLE VALVE
  • 16
    1395-9597 SCREW, COVER PLATE
    SCREW, COVER PLATE
  • 17
    1395-808612 SCREW, FUEL BOWL
    SCREW, FUEL BOWL
  • 18
    1395-9598 COVER PLATE
    COVER PLATE
  • 19
    1399-4216 JET, (.064), MAIN FUEL
    (80)
    JET, (.064), MAIN FUEL
    (80)
  • 19
    1395-6029 JET, (.068), MAIN FUEL
    (75)
    JET, (.068), MAIN FUEL
    (75)
  • 19
    1395-6207 JET, (.072), MAIN FUEL
    (70/90)
    JET, (.072), MAIN FUEL
    (70/90)
  • 20
    1395-8423 JET, (.094), VENT (.094)
    JET, (.094), VENT (.094)
  • 21
    NSS NOT SOLD SEPARATE, GASKET-NOZZLE WELL
    NOT SOLD SEPARATE, GASKET-NOZZLE WELL
  • 22
    NSS NOT SOLD SEPARATE, SPRING-IDLE NEEDLE
    NOT SOLD SEPARATE, SPRING-IDLE NEEDLE
  • 23
    NSS NOT SOLD SEPARATE, SPRING-THROTTLE RETURN
    NOT SOLD SEPARATE, SPRING-THROTTLE RETURN
  • 24
    NSS NOT SOLD SEPARATE, SPRING-IDLE AIR
    NOT SOLD SEPARATE, SPRING-IDLE AIR
  • 25
    NSS NOT SOLD SEPARATE, IDLE NEEDLE
    NOT SOLD SEPARATE, IDLE NEEDLE
  • 26
    NSS NOT SOLD SEPARATE, IDLE AIR NEEDLE
    NOT SOLD SEPARATE, IDLE AIR NEEDLE
  • -
    1395-8112231 GASKET KIT
    GASKET KIT
  • -
    1395-8236354 REPAIR KIT
    REPAIR KIT
