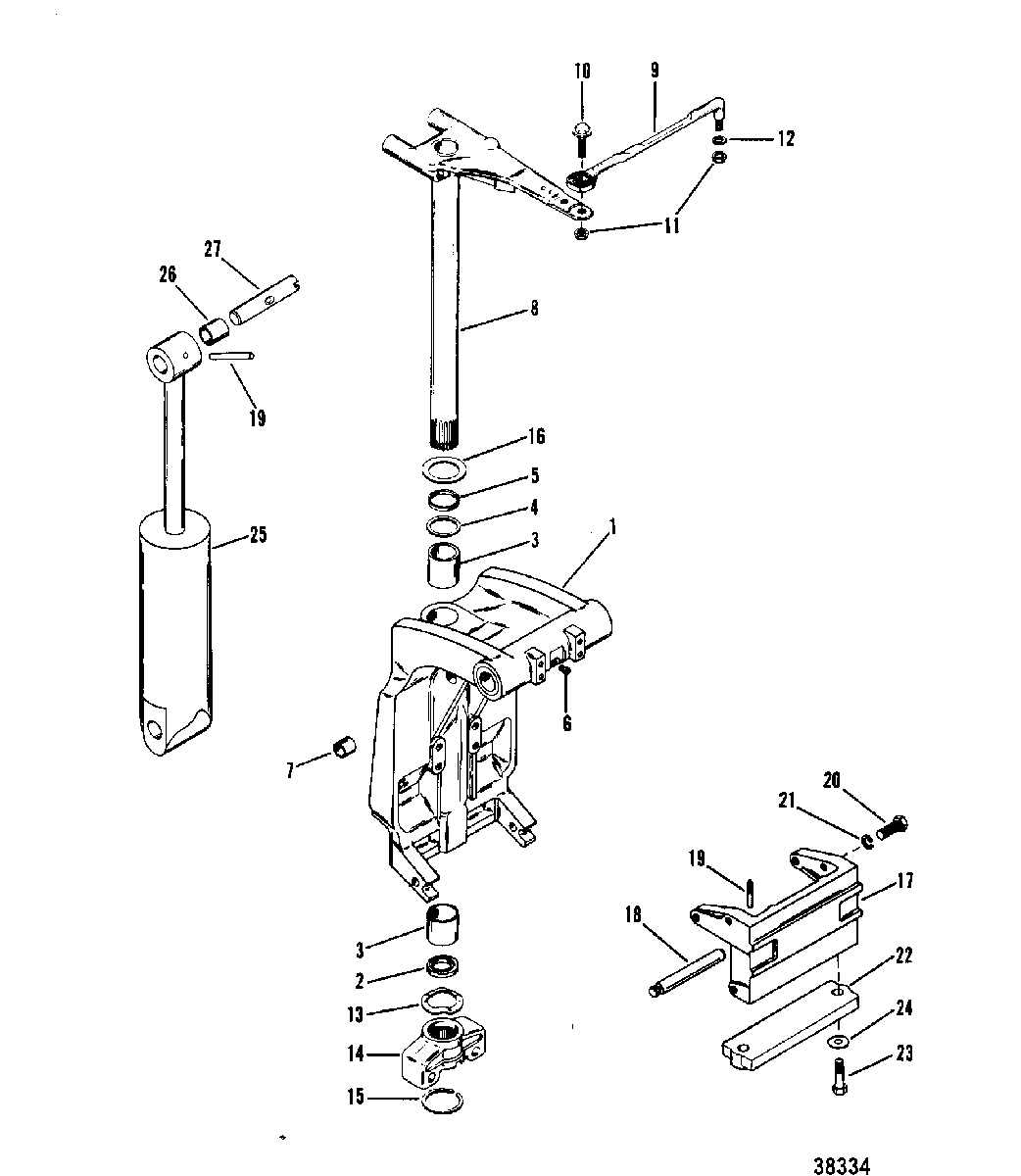

SWIVEL BRACKET AND STEERING ARM для Mariner - 80 (3 CYL.) 0A996142 THRU 0B240450

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY
    (MERCURY)
    SWIVEL BRACKET ASSEMBLY
    (MERCURY)
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY
    (MARINER)
    SWIVEL BRACKET ASSEMBLY
    (MARINER)
  • 2
    26-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)
    SEAL, Oil, SWIVEL BRACKET (LOWER)
  • 3
    23-818764 BUSHING, SWIVEL BRACKET - LOWER AND UPPER
    BUSHING, SWIVEL BRACKET - LOWER AND UPPER
  • 4
    25-33466 O-RING, SWIVEL BRACKET - UPPER
    O-RING, SWIVEL BRACKET - UPPER
  • 5
    23-67668 SPACER, SWIVEL BRACKET - UPPER
    SPACER, SWIVEL BRACKET - UPPER
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 8
    99661A2 SWIVEL PIN ASSEMBLY
    (MERCURY)
    SWIVEL PIN ASSEMBLY
    (MERCURY)
  • 8
    99661A4 SWIVEL PIN ASSEMBLY, Mariner
    SWIVEL PIN ASSEMBLY, Mariner
  • 8
    12079A8 SWIVEL PIN ASSEMBLY
    (MERCURY)(HANDLE MODELS)
    SWIVEL PIN ASSEMBLY
    (MERCURY)(HANDLE MODELS)
  • 8
    12079A9 SWIVEL PIN ASSEMBLY
    (MARINER)(HANDLE MODELS)
    SWIVEL PIN ASSEMBLY
    (MARINER)(HANDLE MODELS)
  • 9
    92876A12 LINK ASSEMBLY, Steering
    LINK ASSEMBLY, Steering
  • 10
    10-849838 SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
    SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
  • 11
    11-8M0042636 NUT, (.375-24), STEERING LINK SCREW
    NUT, (.375-24), STEERING LINK SCREW
  • 12
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
    WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
  • 13
    13-78854 WAVE WASHER, BOTTOM YOKE
    WAVE WASHER, BOTTOM YOKE
  • 14
    42961A06 YOKE ASSEMBLY, Bottom
    (MERCURY)
    YOKE ASSEMBLY, Bottom
    (MERCURY)
  • 14
    42961A06 YOKE ASSEMBLY, Bottom
    (MARINER)
    YOKE ASSEMBLY, Bottom
    (MARINER)
  • 15
    53-67684 RING, Retaining, BOTTOM YOKE
    RING, Retaining, BOTTOM YOKE
  • 16
    12-67670 WASHER, THRUST - SWIVEL BRACKET
    WASHER, THRUST - SWIVEL BRACKET
  • 17
    99653 BRACKET, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
    BRACKET, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
  • 18
    99619 SHAFT, SHOCK ABSORBER (LOWER)
    NOT USED WITH POWER TRIM
    SHAFT, SHOCK ABSORBER (LOWER)
    NOT USED WITH POWER TRIM
  • 19
    17-821539 PIN, Groove, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
    PIN, Groove, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
  • 20
    10-4000377 SCREW, (M10 x 30), BRACKET
    NOT USED WITH POWER TRIM
    SCREW, (M10 x 30), BRACKET
    NOT USED WITH POWER TRIM
  • 21
    13-400258 LOCKWASHER, (M10) Stainless Steel, BRACKET SCREW
    NOT USED WITH POWER TRIM
    LOCKWASHER, (M10) Stainless Steel, BRACKET SCREW
    NOT USED WITH POWER TRIM
  • 22
    97-818298Q1 ANODE ASSEMBLY
    NOT USED WITH POWER TRIM
    ANODE ASSEMBLY
    NOT USED WITH POWER TRIM
  • 23
    10-4000332 SCREW, (M6 x 35), ANODE
    NOT USED WITH POWER TRIM
    SCREW, (M6 x 35), ANODE
    NOT USED WITH POWER TRIM
  • 24
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREW
    NOT USED WITH POWER TRIM
    WASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREW
    NOT USED WITH POWER TRIM
  • 25
    55-99724T15 SHOCK ABSORBER
    (MERCURY) NOT USED WITH POWER TRIM MERCURY
    SHOCK ABSORBER
    (MERCURY) NOT USED WITH POWER TRIM MERCURY
  • 25
    55-99724T15 SHOCK ABSORBER
    (MARINER) NOT USED WITH POWER TRIM MARINER
    SHOCK ABSORBER
    (MARINER) NOT USED WITH POWER TRIM MARINER
  • -
    41760A2 REPAIR KIT, Shock Absorber
    REPAIR KIT, Shock Absorber
  • 26
    23-821207 BUSHING, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
    BUSHING, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
  • 27
    99625002 SHAFT, SHOCK ABSORBER (UPPER)
    NOT USED WITH POWER TRIM
    SHAFT, SHOCK ABSORBER (UPPER)
    NOT USED WITH POWER TRIM
  • -
    27-43004A99 GASKET SET
    GASKET SET
