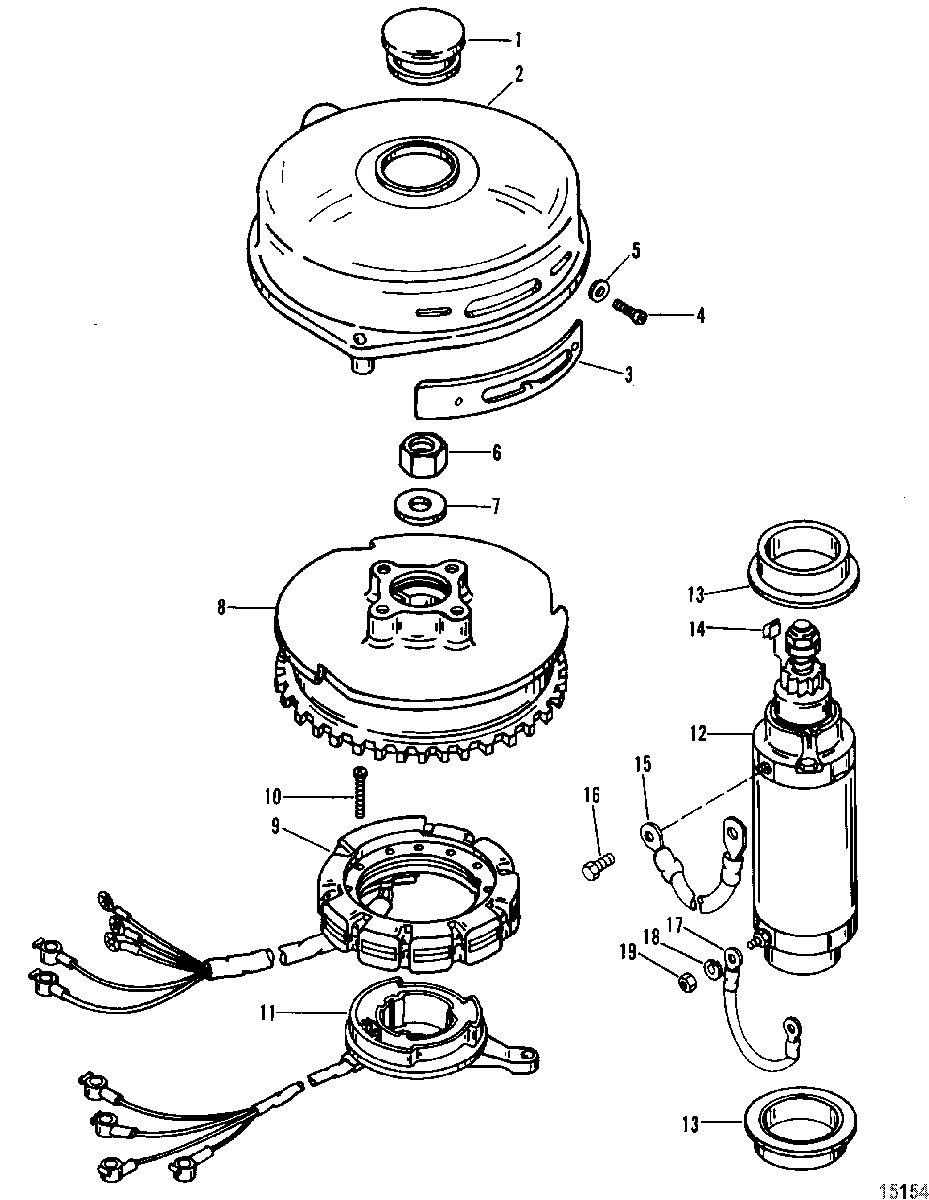

FLYWHEEL AND STARTER MOTOR для Mariner - 80 (3 CYL.) 0A996142 THRU 0B240450

  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, Yellow, FLYWHEEL
    PLUG, Yellow, FLYWHEEL
  • 2
    42956A1 COVER ASSEMBLY, FLYWHEEL
    COVER ASSEMBLY, FLYWHEEL
  • 3
    79022 MARKER, TIMING
    MARKER, TIMING
  • 4
    10-37572 SCREW, (.190-32 x .380), TIMING MARKER
    SCREW, (.190-32 x .380), TIMING MARKER
  • 5
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREW
    WASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREW
  • 6
    11-42979 NUT, (M16), FLYWHEEL
    NUT, (M16), FLYWHEEL
  • 7
    12-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL
    WASHER, (.641 x 1.250 x .190), FLYWHEEL
  • 8
    261-859234T30 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 9
    398-8778A10 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 10
    10-4007325 SCREW, (M5 x 25), STATOR
    SCREW, (M5 x 25), STATOR
  • 11
    99021A3 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 12
    50-893891T STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 13
    23-8M0034918 COLLAR, STARTER MOTOR
    COLLAR, STARTER MOTOR
  • 14
    8M0043376 STOP, RUBBER-STARTER MOTOR
    STOP, RUBBER-STARTER MOTOR
  • 15
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, STARTER MOTOR TO PLATE
    CABLE ASSEMBLY, (6.00 Inches) Black, STARTER MOTOR TO PLATE
  • 16
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, WIRE TO STARTER MOTOR
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, WIRE TO STARTER MOTOR
  • 17
    84-88439A20 WIRE, STARTER MOTOR (BLACK)
    WIRE, STARTER MOTOR (BLACK)
  • 18
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
    LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
  • 19
    11-64015 NUT, (.250-20), STARTER MOTOR TERMINAL
    NUT, (.250-20), STARTER MOTOR TERMINAL
