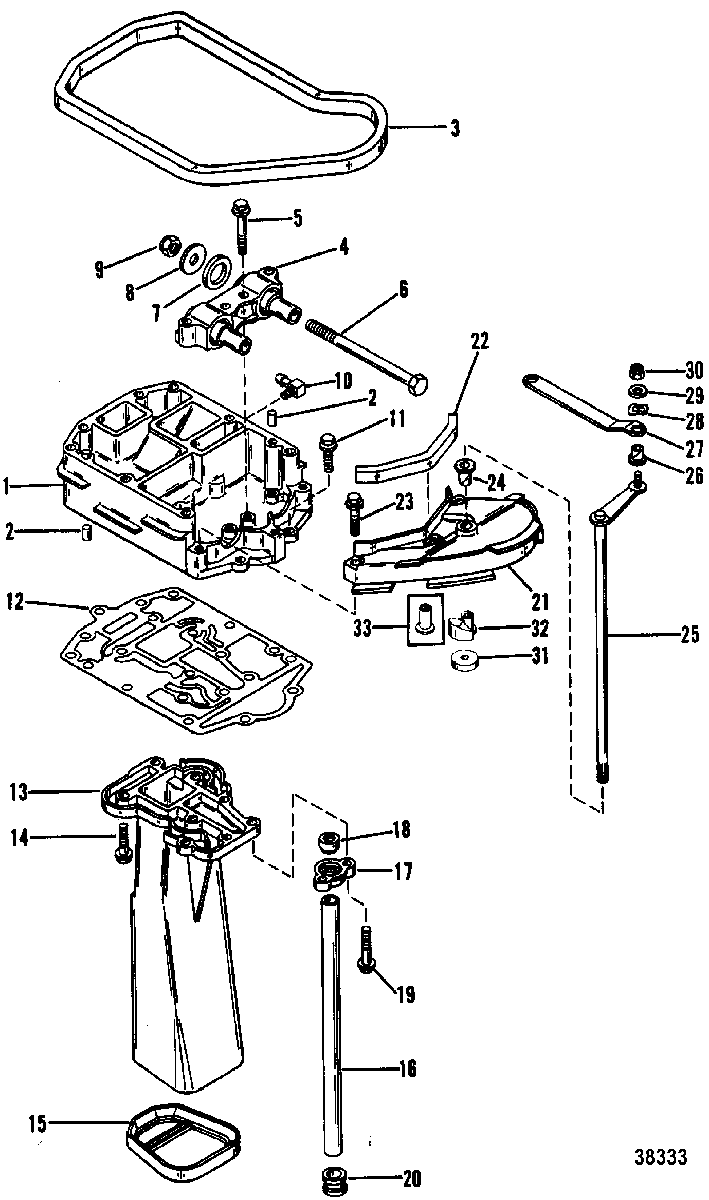

EXHAUST PLATE для Mariner - 80 (3 CYL.) 0A996142 THRU 0B240450

  • №
    Артикул
    Название
  • 1
    42954A1 PLATE ASSEMBLY, EXHAUST
    PLATE ASSEMBLY, EXHAUST
  • 2
    17-23784 PIN, Dowel
    PIN, Dowel
  • 3
    42939 SEAL, LOWER COWL
    SEAL, LOWER COWL
  • 4
    42949T1 MOUNT, (3.25 Inch), UPPER
    (LONG)
    MOUNT, (3.25 Inch), UPPER
    (LONG)
  • 4
    443441 MOUNT, (3.25 Inch), UPPER
    (X-LONG)
    MOUNT, (3.25 Inch), UPPER
    (X-LONG)
  • 5
    10-82155050 SCREW, UPPER MOUNT TO EXHAUST PLATE
    SCREW, UPPER MOUNT TO EXHAUST PLATE
  • 6
    10-898487 BOLT, (M12 x 175), UPPER MOUNT
    BOLT, (M12 x 175), UPPER MOUNT
  • 6
    10-12515 SCREW, (M12 x 160), UPPER MOUNT
    (HANDLE MODELS)
    SCREW, (M12 x 160), UPPER MOUNT
    (HANDLE MODELS)
  • 7
    12-32834 WASHER, UPPER MOUNT SCREW
    WASHER, UPPER MOUNT SCREW
  • 8
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, UPPER MOUNT SCREW
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, UPPER MOUNT SCREW
  • 9
    11-896963 NUT, (M12), UPPER MOUNT SCREW
    NUT, (M12), UPPER MOUNT SCREW
  • 10
    22-996642 ELBOW, EXHAUSE PLATE
    ELBOW, EXHAUSE PLATE
  • 11
    10-82127335 SCREW, (M8 x 1.25 x 35) , EXHAUSE PLATE
    SCREW, (M8 x 1.25 x 35) , EXHAUSE PLATE
  • 11
    10-4010770 SCREW, (M8 x 70), EXHAUSE PLATE
    SCREW, (M8 x 70), EXHAUSE PLATE
  • 12
    27-430086 GASKET, EXHAUST PLATE
    GASKET, EXHAUST PLATE
  • 13
    42966T TUBE, Exhaust
    TUBE, Exhaust
  • 14
    10-4010735 SCREW, (M8 x 35), EXHAUST TUBE TO PLATE
    SCREW, (M8 x 35), EXHAUST TUBE TO PLATE
  • 15
    8M0039075 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 16
    32-430141 TUBE, Water
    (LONG)
    TUBE, Water
    (LONG)
  • 16
    32-430142 TUBE, Water
    (X-LONG)
    TUBE, Water
    (X-LONG)
  • 17
    99019 CLAMP, WATER TUBE SEAL
    CLAMP, WATER TUBE SEAL
  • 18
    42941001 SEAL, Water Tube (UPPER)
    SEAL, Water Tube (UPPER)
  • 19
    10-4010750 SCREW, (M8 x 50), CLAMP
    SCREW, (M8 x 50), CLAMP
  • 20
    25-93221002 GROMMET, WATER TUBE
    GROMMET, WATER TUBE
  • 21
    42953A2 BRACKET ASSEMBLY, COWL (LOWER)
    BRACKET ASSEMBLY, COWL (LOWER)
  • 22
    43405 SEAL, LOWER COWL BRACKET
    SEAL, LOWER COWL BRACKET
  • 23
    10-81742755 SCREW, LOWER COWL BRACKET
    SCREW, LOWER COWL BRACKET
  • 24
    23-48237 BUSHING, SHIFT SHAFT
    BUSHING, SHIFT SHAFT
  • 25
    79932A9 SHIFT SHAFT ASSEMBLY (UPPER)
    SHIFT SHAFT ASSEMBLY (UPPER)
  • 26
    23-42994 BUSHING, SHIFT SHAFT
    BUSHING, SHIFT SHAFT
  • 27
    42912A1 SHIFT LINK
    SHIFT LINK
  • 28
    13-29720 WAVE WASHER, SHIFT SHAFT
    WAVE WASHER, SHIFT SHAFT
  • 29
    12-24664 WASHER, (M4 x 20), SHIFT SHAFT
    WASHER, (M4 x 20), SHIFT SHAFT
  • 30
    11-401386 NUT, (M6), SHIFT SHAFT
    NUT, (M6), SHIFT SHAFT
  • 31
    23-813745 SPACER, SHIFT SHAFT
    (LONG)
    SPACER, SHIFT SHAFT
    (LONG)
  • 31
    23-11289 SPACER, SHIFT SHAFT
    (X-LONG)
    SPACER, SHIFT SHAFT
    (X-LONG)
  • 32
    43053 COUPLING, SHIFT SHAFT )
    (NON POWER TRIM
    COUPLING, SHIFT SHAFT )
    (NON POWER TRIM
  • 33
    43585 COUPLING, SHIFT SHAFT
    (POWER TRIM)
    COUPLING, SHIFT SHAFT
    (POWER TRIM)
  • -
    27-43004A99 GASKET SET
    GASKET SET
