Tachometer для Mariner - 80 (3 CYL.) 0A996142 THRU 0B240450
-

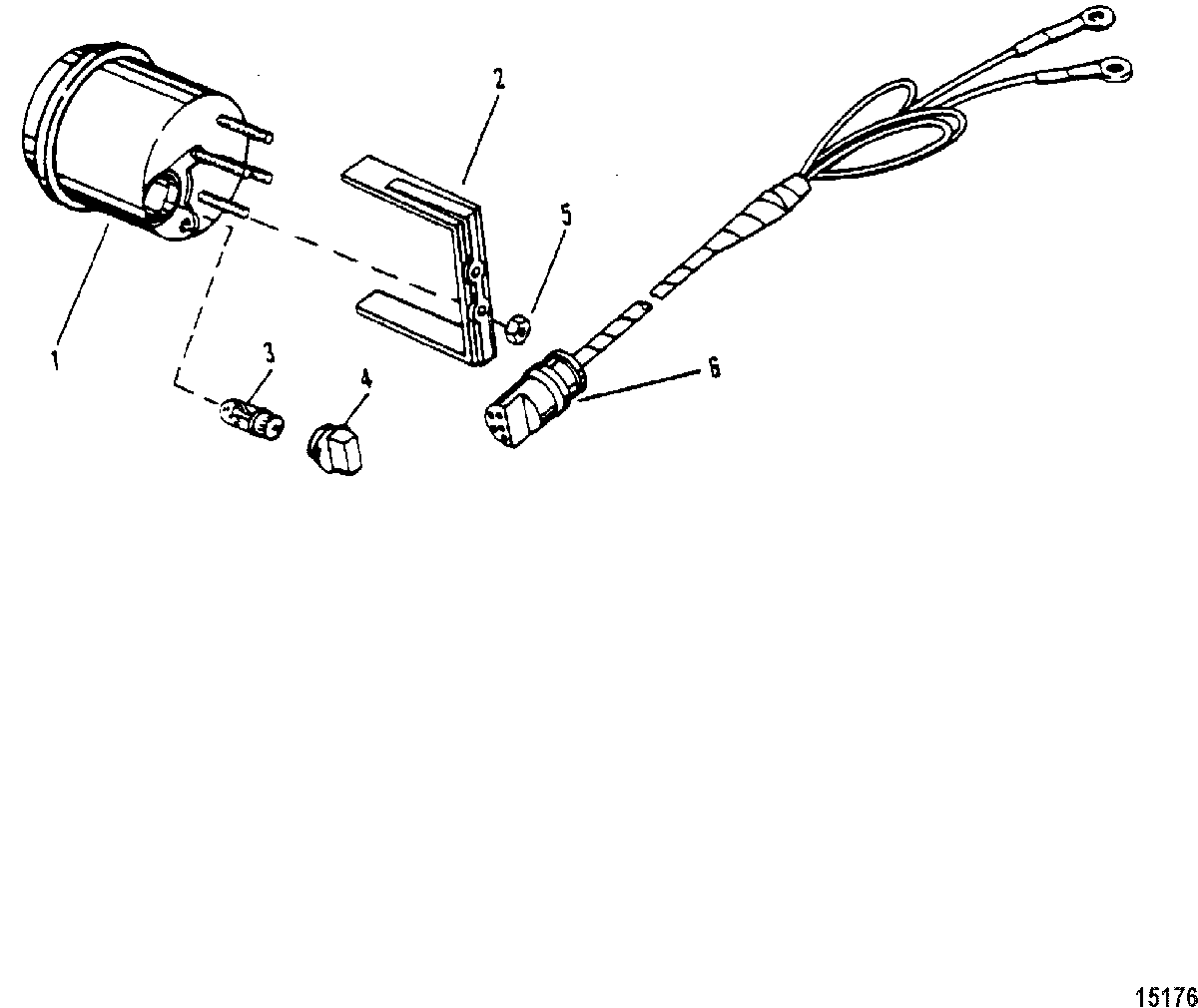

№АртикулНазвание
-
179-895283Q43 TACHOMETER, 6KTACHOMETER, 6K
-
279101T BRACKET, MountingBRACKET, Mounting
-
388-72729 LIGHT BULB, Wedge Base (14V - .19W)LIGHT BULB, Wedge Base (14V - .19W)
-
488-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
511-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
684-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)HARNESS ASSEMBLY, Tachometer (5.00 Feet)
