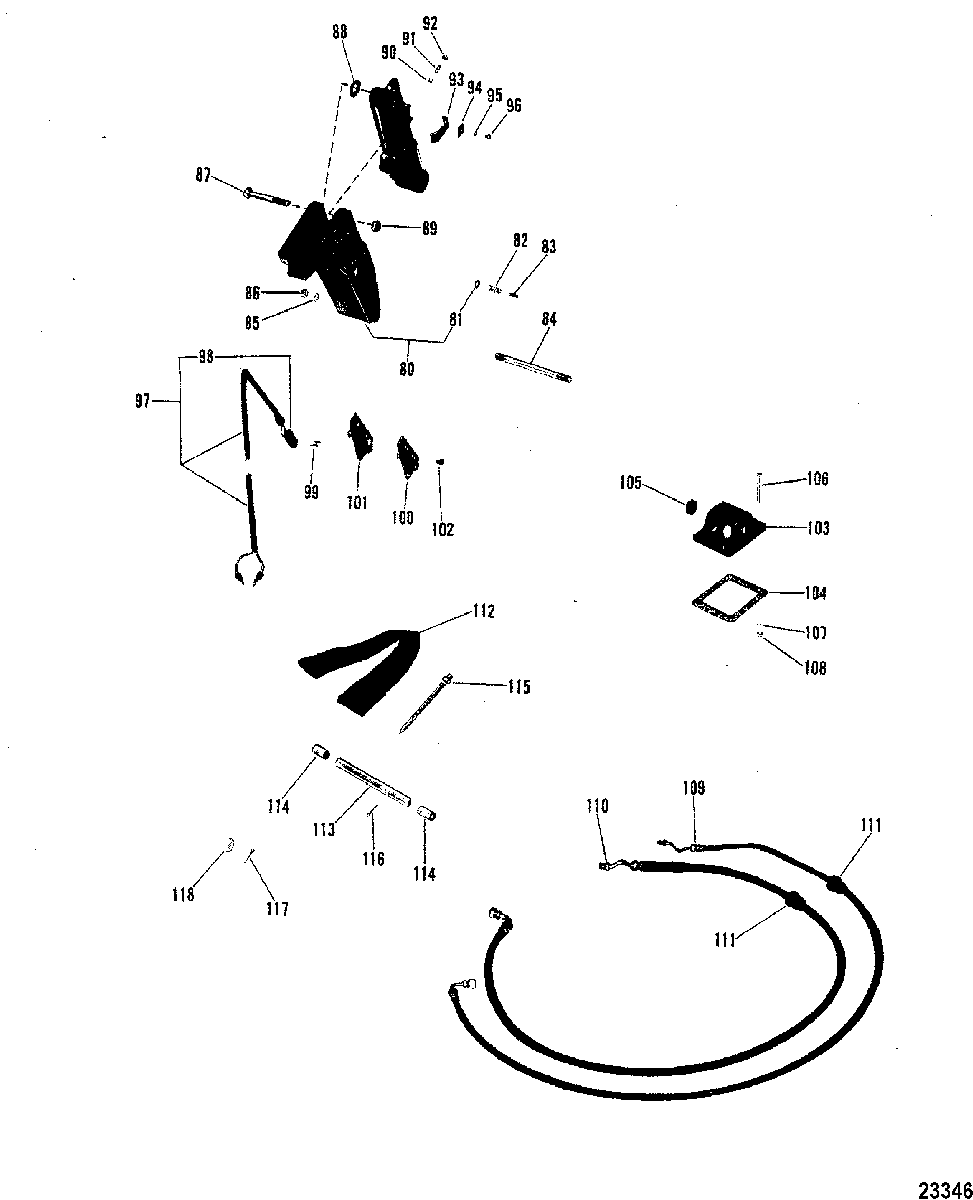

POWER TRIM для Mariner - 60 (2 CYL.) E-675-00101 THRU E-675-001170

  • №
    Артикул
    Название
  • 80
    89807A1 BRACKET ASSEMBLY, MOUNTING (STARBOARD)
    BRACKET ASSEMBLY, MOUNTING (STARBOARD)
  • 81
    26-70608 SEAL, Oil
    SEAL, Oil
  • 82
    89290 PLUNGER, LIMIT SWITCH
    PLUNGER, LIMIT SWITCH
  • 83
    24-95881 SPRING, TENSION
    SPRING, TENSION
  • 84
    16-71794 STUD
    STUD
  • 85
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 86
    11-22053 NUT, (5/16-24)
    NUT, (5/16-24)
  • 87
    10-45328 SCREW, (.437-20 x 3.560), CYLINDER TO BRACKET
    SCREW, (.437-20 x 3.560), CYLINDER TO BRACKET
  • 88
    12-37807 WASHER (STARBOARD ONLY)
    WASHER (STARBOARD ONLY)
  • 89
    11-20696 NUT
    NUT
  • 90
    24-24390 SPRING, TENSION
    SPRING, TENSION
  • 91
    16-8M0034461 STUD, (#10-32 x .930), ADJUSTING
    STUD, (#10-32 x .930), ADJUSTING
  • 92
    11-859124 NUT, (#10-32) Stainless Steel, JAM
    NUT, (#10-32) Stainless Steel, JAM
  • 93
    71855 CAM
    CAM
  • 94
    86967 PLATE, CAM RETAINING
    PLATE, CAM RETAINING
  • 95
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 96
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 97
    45326A2 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 98
    23-45354 BUSHING, RUBBER
    BUSHING, RUBBER
  • 99
    10-47255 SCREW, (#4-40 x .625), SWITCH TO BRACKET
    SCREW, (#4-40 x .625), SWITCH TO BRACKET
  • 100
    45287 COVER
    COVER
  • 101
    27-45275 GASKET
    GASKET
  • 102
    10-24942 SCREW, (10-32 x 0.4375), COVER TO BRACKET
    SCREW, (10-32 x 0.4375), COVER TO BRACKET
  • 103
    87774A1 COVER, TRANSOM INLET
    COVER, TRANSOM INLET
  • 104
    27-45274 GASKET
    GASKET
  • 105
    25-45507 GROMMET, RUBBER
    GROMMET, RUBBER
  • 106
    10-32866 SCREW, (#10-32 x 2.00) Stainless Steel, INLET COVER TO BOAT
    SCREW, (#10-32 x 2.00) Stainless Steel, INLET COVER TO BOAT
  • 107
    12-20878 WASHER
    WASHER
  • 108
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
  • 109
    32-88005 HOSE, TRIM
    12/32 INCH OD
    HOSE, TRIM
    12/32 INCH OD
  • 110
    32-88006 HOSE, LIFT (17/32 INCH OD)
    HOSE, LIFT (17/32 INCH OD)
  • 111
    23-35977 GROMMET, RUBBER
    GROMMET, RUBBER
  • 112
    73519A1 STRAP, Tilt Stop
    STRAP, Tilt Stop
  • 113
    77295 TUBE, STOP MOUNTING
    TUBE, STOP MOUNTING
  • 114
    23-71795 SPACER
    SPACER
  • 115
    66368 STA-STRAP
    STA-STRAP
  • 116
    18-36002 COTTER PIN
    COTTER PIN
  • 117
    18-45882 COTTER PIN
    COTTER PIN
  • 118
    12-39304 WASHER
    WASHER
  • -
    64507A1 REPAIR KIT (Includes the piston, piston slipper seal and all o-rings necessary to rebuild one cylinder)
    REPAIR KIT (Includes the piston, piston slipper seal and all o-rings necessary to rebuild one cylinder)
  • -
    64505A1 RETAINER ASSEMBLY (Includes the cylinder rod retainer, rod scraper, and scraper retainer for one cylinder)
    RETAINER ASSEMBLY (Includes the cylinder rod retainer, rod scraper, and scraper retainer for one cylinder)
