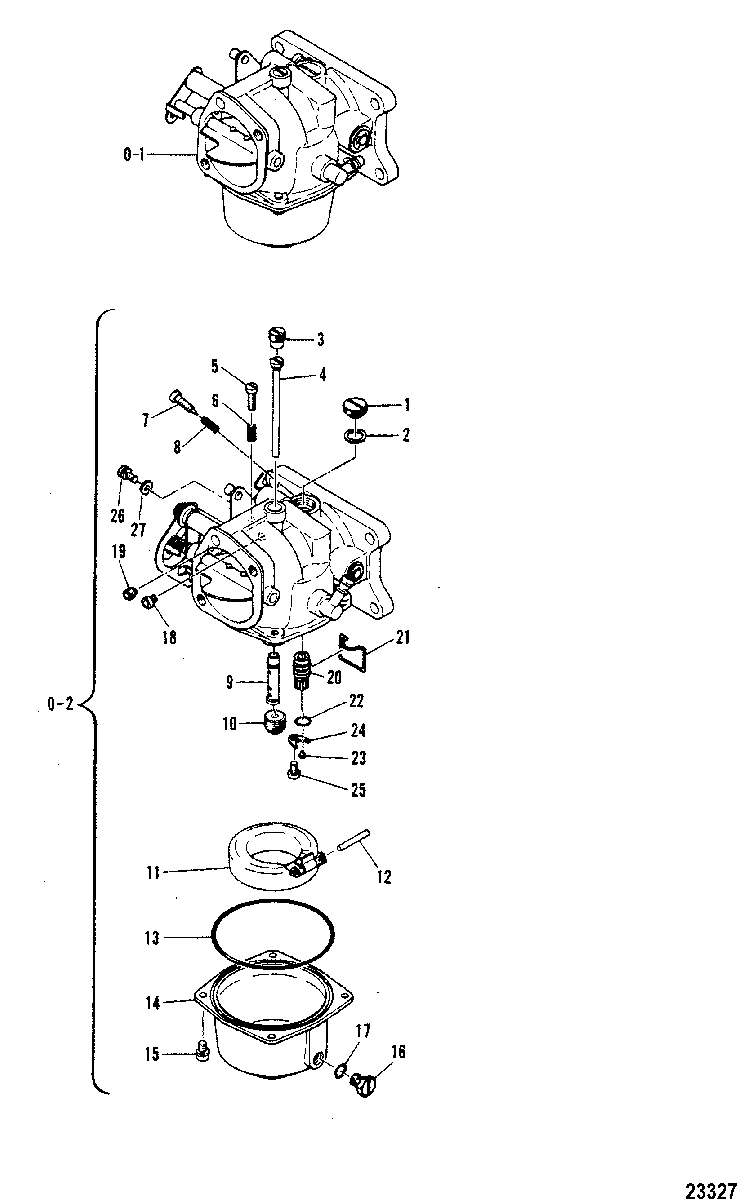

CARBURETOR для Mariner - 60 (2 CYL.) E-675-00101 THRU E-675-001170

  • №
    Артикул
    Название
  • 0-1
    1383-7161M CARBURETOR ASSEMBLY (UPPER)
    SN# S-675-000781/L-675-302051 & Up
    CARBURETOR ASSEMBLY (UPPER)
    SN# S-675-000781/L-675-302051 & Up
  • 0-1
    1383-6931M CARBURETOR ASSEMBLY (UPPER)
    SN# S-675-000780/L-675-302050 & Below
    CARBURETOR ASSEMBLY (UPPER)
    SN# S-675-000780/L-675-302050 & Below
  • 0-2
    1383-7162M CARBURETOR ASSEMBLY (LOWER)
    SN# S-675-000781/L-675-302051 & Up
    CARBURETOR ASSEMBLY (LOWER)
    SN# S-675-000781/L-675-302051 & Up
  • 0-2
    1383-6940M CARBURETOR ASSEMBLY (LOWER)
    SN# S-675-000780/L-675-302050 & Below
    CARBURETOR ASSEMBLY (LOWER)
    SN# S-675-000780/L-675-302050 & Below
  • 1
    10-81292M SCREW, PLUG
    SCREW, PLUG
  • 2
    12-81701M WASHER
    WASHER
  • 3
    10-81279M SCREW, PLUG
    SCREW, PLUG
  • 4
    84417M JET, PILOT (#85)
    SN# S-675-000781/L-675-302051 & Up
    JET, PILOT (#85)
    SN# S-675-000781/L-675-302051 & Up
  • 4
    81282M JET, PILOT (#92)
    SN# S-675-000780/L-675-302050 & Below
    JET, PILOT (#92)
    SN# S-675-000780/L-675-302050 & Below
  • 5
    10-81277M SCREW, THROTTLE (UPPER)
    SCREW, THROTTLE (UPPER)
  • 6
    24-82080M SPRING, COMPRESSION (UPPER)
    SPRING, COMPRESSION (UPPER)
  • 7
    10-81281M SCREW, IDLE SPEED
    SCREW, IDLE SPEED
  • 8
    24-82073M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 9
    81287M NOZZLE, MAIN
    NOZZLE, MAIN
  • 10
    84418M JET, MAIN (#175)
    SN# S-675-000781/L-675-302051 & Up
    JET, MAIN (#175)
    SN# S-675-000781/L-675-302051 & Up
  • 10
    81283M JET, MAIN (#180)
    SN# S-675-000780/L-675-302050 & Below
    JET, MAIN (#180)
    SN# S-675-000780/L-675-302050 & Below
  • 11
    97848M FLOAT
    FLOAT
  • 12
    17-81278M PIN, FLOAT
    PIN, FLOAT
  • 13
    25-82288M O-RING, FLOAT BOWL
    O-RING, FLOAT BOWL
  • 14
    81290M FLOAT BOWL
    FLOAT BOWL
  • 15
    10-81758M SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 16
    10-81293M SCREW, Drain
    SCREW, Drain
  • 17
    25-81695M O-RING, DRAIN SCREW
    O-RING, DRAIN SCREW
  • 18
    81288M PILOT, AIR JET (#100)
    PILOT, AIR JET (#100)
  • 19
    81286M JET (#160)
    JET (#160)
  • 20
    82780M NEEDLE, Inlet
    NEEDLE, Inlet
  • 21
    54-8M0120624 CLIP
    CLIP
  • 22
    25-82261M O-RING
    O-RING
  • 23
    17-92639M PIN, VALVE
    PIN, VALVE
  • 24
    80026M RETAINER
    RETAINER
  • 25
    10-82499M SCREW
    SCREW
  • 26
    10-83371M SCREW (UPPER)
    SN# S-675-000781/L-675-302051 & Up
    SCREW (UPPER)
    SN# S-675-000781/L-675-302051 & Up
  • 27
    12-83372M WASHER (UPPER)
    SN# S-675-000781/L-675-302051 & Up
    WASHER (UPPER)
    SN# S-675-000781/L-675-302051 & Up
  • -
    84419M REPAIR KIT (Fits All Four (4) Carbs)
    REPAIR KIT (Fits All Four (4) Carbs)
  • -
    27-84168M GASKET SET
    GASKET SET
