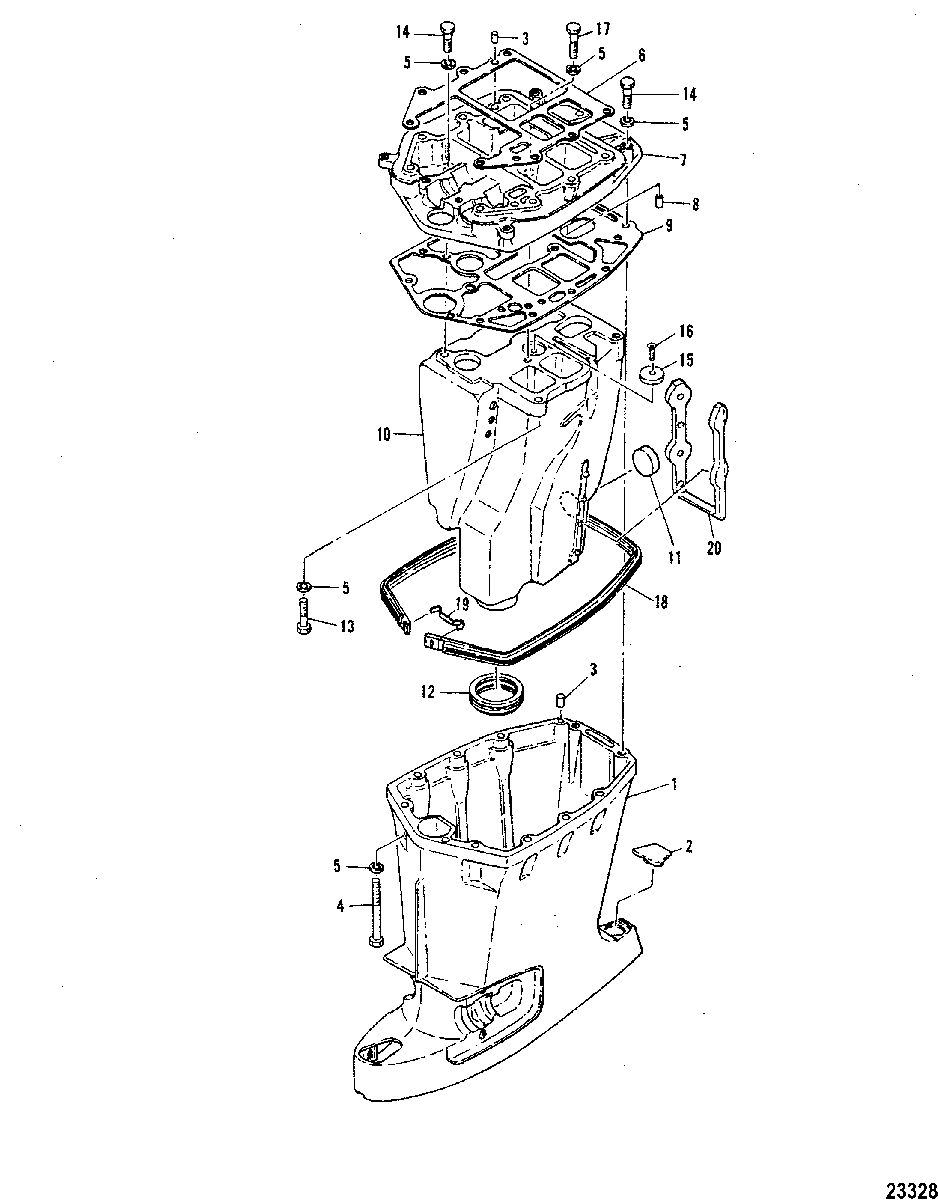

DRIVESHAFT HOUSING для Mariner - 60 (2 CYL.) E-675-00101 THRU E-675-001170

  • №
    Артикул
    Название
  • 1
    1587-9284M HOUSING, Driveshaft (SHORT SHAFT)
    SN# S-675-000781/L-675-302051 & Up
    HOUSING, Driveshaft (SHORT SHAFT)
    SN# S-675-000781/L-675-302051 & Up
  • 1
    1587-8615M HOUSING, Driveshaft (SHORT SHAFT)
    SN# S-675-000780/L-675-302050 & Below
    HOUSING, Driveshaft (SHORT SHAFT)
    SN# S-675-000780/L-675-302050 & Below
  • 1
    1587-9285M DRIVESHAFT (LONG SHAFT)
    SN# S-675-000781/L-675-302051 & Up
    DRIVESHAFT (LONG SHAFT)
    SN# S-675-000781/L-675-302051 & Up
  • 1
    1587-8616M HOUSING, Driveshaft (LONG SHAFT)
    SN# S-675-000780/L-675-302050 & Below
    HOUSING, Driveshaft (LONG SHAFT)
    SN# S-675-000780/L-675-302050 & Below
  • 2
    81442M CAP, DRIVESHAFT HOUSING (SHORT SHAFT)
    CAP, DRIVESHAFT HOUSING (SHORT SHAFT)
  • 2
    81442M CAP, DRIVESHAFT HOUSING (LONG SHAFT)
    CAP, DRIVESHAFT HOUSING (LONG SHAFT)
  • 3
    17-82364M PIN, Dowel
    PIN, Dowel
  • 4
    10-84427M BOLT
    BOLT
  • 5
    13-82215M LOCKWASHER
    LOCKWASHER
  • 6
    27-16717 GASKET, EXHAUST GUIDE - UPPER
    GASKET, EXHAUST GUIDE - UPPER
  • 7
    41849M GUIDE, EXHAUST
    GUIDE, EXHAUST
  • 8
    23-84426M BUSHING
    BUSHING
  • 9
    27-98952M GASKET, EXHAUST GUIDE - LOWER
    GASKET, EXHAUST GUIDE - LOWER
  • 10
    84420M HOUSING, Exhaust Tube (SHORT SHAFT)
    SN# S-675-000781/L-675-302051 & Up
    HOUSING, Exhaust Tube (SHORT SHAFT)
    SN# S-675-000781/L-675-302051 & Up
  • 10
    82989M HOUSING, Exhaust Tube (SHORT SHAFT)
    SN# S-675-000780/L-675-302050 & Below
    HOUSING, Exhaust Tube (SHORT SHAFT)
    SN# S-675-000780/L-675-302050 & Below
  • 10
    84421M HOUSING, Exhaust Tube (LONG SHAFT)
    SN# S-675-000781/L-675-302051 & Up
    HOUSING, Exhaust Tube (LONG SHAFT)
    SN# S-675-000781/L-675-302051 & Up
  • 10
    82990M HOUSING, Exhaust Tube (LONG SHAFT)
    SN# S-675-000780/L-675-302050 & Below
    HOUSING, Exhaust Tube (LONG SHAFT)
    SN# S-675-000780/L-675-302050 & Below
  • 11
    19-81922M PLUG
    PLUG
  • 12
    27-81440M SEAL, INNER TO OUTER HOUSING
    SEAL, INNER TO OUTER HOUSING
  • 13
    10-82442M BOLT
    BOLT
  • 14
    10-95416M BOLT
    BOLT
  • 15
    84422M ANODE
    SN# S-675-000781/L-675-302051 & Up
    ANODE
    SN# S-675-000781/L-675-302051 & Up
  • 15
    43107M ANODE
    SN# S-675-000780/L-675-302050 & Below
    ANODE
    SN# S-675-000780/L-675-302050 & Below
  • 16
    10-92679M BOLT
    SN# S-675-000781/L-675-302051 & Up
    BOLT
    SN# S-675-000781/L-675-302051 & Up
  • 16
    10-84367M SCREW
    SN# S-675-000780/L-675-302050 & Below
    SCREW
    SN# S-675-000780/L-675-302050 & Below
  • 17
    10-97749M BOLT
    BOLT
  • 18
    27-83033M SEAL, RUBBER
    SEAL, RUBBER
  • 19
    83034M HOOK, RUBBER SEAL
    HOOK, RUBBER SEAL
  • 20
    84424M DAMPER (SHORT SHAFT)
    SN# S-675-000781/L-675-302051 & Up
    DAMPER (SHORT SHAFT)
    SN# S-675-000781/L-675-302051 & Up
  • 20
    84425M DAMPER (LONG SHAFT)
    SN# S-675-000780/L-675-302050 & Below
    DAMPER (LONG SHAFT)
    SN# S-675-000780/L-675-302050 & Below
  • -
    27-84168M GASKET SET
    GASKET SET
  • -
    27-84179M GASKET SET
    GASKET SET
