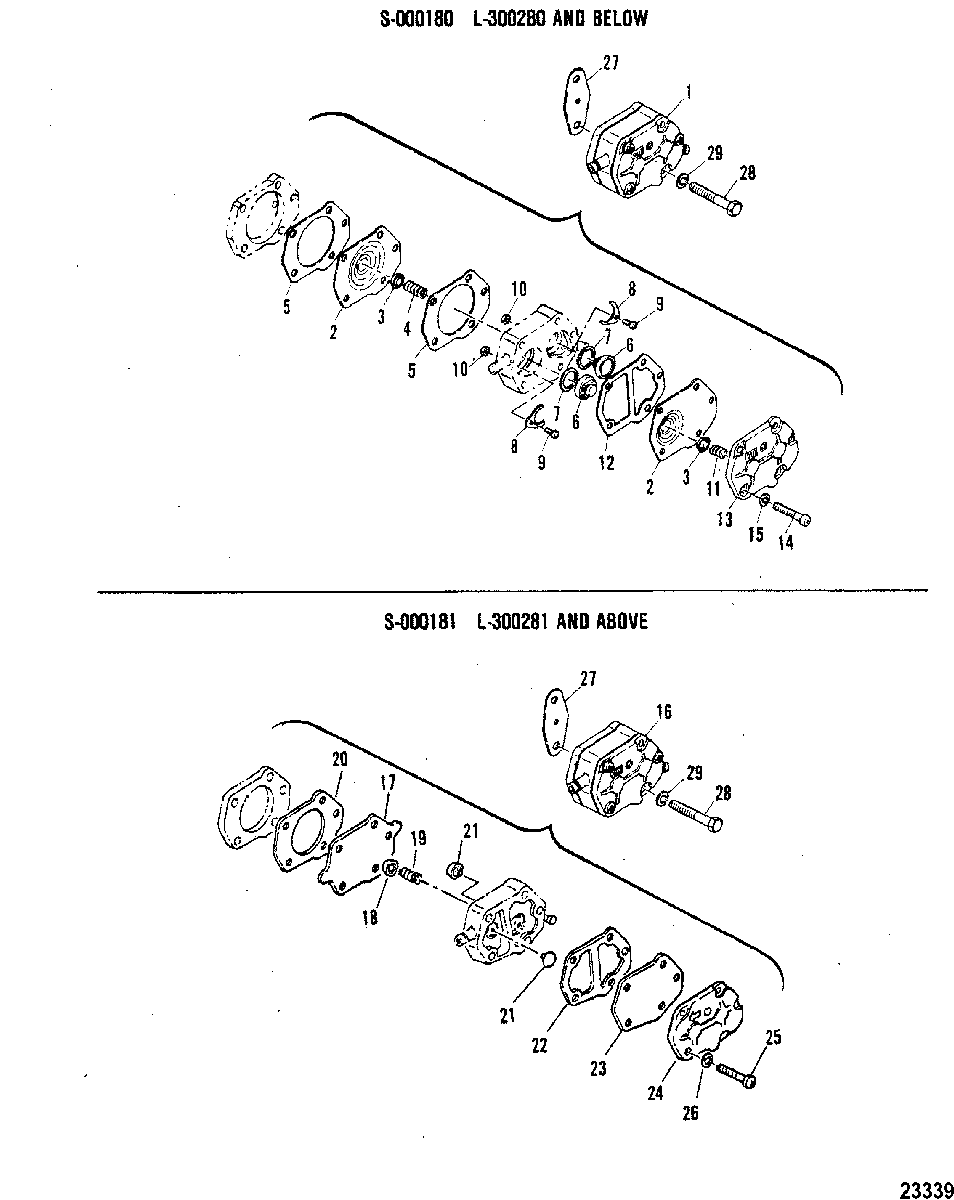

FUEL PUMP для Mariner - 60 (2 CYL.) E-675-00101 THRU E-675-001170

  • №
    Артикул
    Название
  • 1
    43113T PUMP ASSEMBLY, Fuel
    SN# S-675-000180/L-675-300280 & Below
    PUMP ASSEMBLY, Fuel
    SN# S-675-000180/L-675-300280 & Below
  • 2
    80606M DIAPHRAGM
    SN# S-675-000180/L-675-300280 & Below
    DIAPHRAGM
    SN# S-675-000180/L-675-300280 & Below
  • 3
    80611M PLATE, SPRING GUIDE
    SN# S-675-000180/L-675-300280 & Below
    PLATE, SPRING GUIDE
    SN# S-675-000180/L-675-300280 & Below
  • 4
    24-80610M SPRING
    SN# S-675-000180/L-675-300280 & Below
    SPRING
    SN# S-675-000180/L-675-300280 & Below
  • 5
    27-80613 GASKET, BODY TO BASE
    SN# S-675-000180/L-675-300280 & Below
    GASKET, BODY TO BASE
    SN# S-675-000180/L-675-300280 & Below
  • 6
    21-80608M CHECK VALVE
    SN# S-675-000180/L-675-300280 & Below
    CHECK VALVE
    SN# S-675-000180/L-675-300280 & Below
  • 7
    27-80612M GASKET, CHECK VALVE
    SN# S-675-000180/L-675-300280 & Below
    GASKET, CHECK VALVE
    SN# S-675-000180/L-675-300280 & Below
  • 8
    80609M RETAINER, CHECK VALVE
    SN# S-675-000180/L-675-300280 & Below
    RETAINER, CHECK VALVE
    SN# S-675-000180/L-675-300280 & Below
  • 9
    10-82511M SCREW
    SN# S-675-000180/L-675-300280 & Below
    SCREW
    SN# S-675-000180/L-675-300280 & Below
  • 9
    10-82511M SCREW
    SN# S-675-000180/L-675-300280 & Below
    SCREW
    SN# S-675-000180/L-675-300280 & Below
  • 11
    11-82537M NUT
    SN# S-675-000180/L-675-300280 & Below
    NUT
    SN# S-675-000180/L-675-300280 & Below
  • 11
    24-80615M SPRING
    SN# S-675-000180/L-675-300280 & Below
    SPRING
    SN# S-675-000180/L-675-300280 & Below
  • 12
    27-80614 GASKET, BODY TO COVER
    SN# S-675-000180/L-675-300280 & Below
    GASKET, BODY TO COVER
    SN# S-675-000180/L-675-300280 & Below
  • 13
    80607M COVER
    SN# S-675-000180/L-675-300280 & Below
    COVER
    SN# S-675-000180/L-675-300280 & Below
  • 14
    10-82522M SCREW
    SN# S-675-000180/L-675-300280 & Below
    SCREW
    SN# S-675-000180/L-675-300280 & Below
  • 15
    13-82186M WASHER, LOCK
    SN# S-675-000180/L-675-300280 & Below
    WASHER, LOCK
    SN# S-675-000180/L-675-300280 & Below
  • 16
    43113T PUMP ASSEMBLY, Fuel
    SN# S-675-000181/L-675-300281 & Up
    PUMP ASSEMBLY, Fuel
    SN# S-675-000181/L-675-300281 & Up
  • 17
    80606M DIAPHRAGM
    SN# S-675-000181/L-675-300281 & Up
    DIAPHRAGM
    SN# S-675-000181/L-675-300281 & Up
  • 18
    80611M PLATE, SPRING GUIDE
    SN# S-675-000181/L-675-300281 & Up
    PLATE, SPRING GUIDE
    SN# S-675-000181/L-675-300281 & Up
  • 19
    24-80610M SPRING
    SN# S-675-000181/L-675-300281 & Up
    SPRING
    SN# S-675-000181/L-675-300281 & Up
  • 20
    27-80613 GASKET, BODY TO BASE
    SN# S-675-000181/L-675-300281 & Up
    GASKET, BODY TO BASE
    SN# S-675-000181/L-675-300281 & Up
  • 21
    21-84650M CHECK VALVE
    SN# S-675-000181/L-675-300281 & Up
    CHECK VALVE
    SN# S-675-000181/L-675-300281 & Up
  • 22
    27-80614 GASKET, BODY TO COVER
    SN# S-675-000181/L-675-300281 & Up
    GASKET, BODY TO COVER
    SN# S-675-000181/L-675-300281 & Up
  • 23
    84141M DIAPHRAGM
    SN# S-675-000181/L-675-300281 & Up
    DIAPHRAGM
    SN# S-675-000181/L-675-300281 & Up
  • 24
    80607M COVER
    SN# S-675-000181/L-675-300281 & Up
    COVER
    SN# S-675-000181/L-675-300281 & Up
  • 25
    10-82522M SCREW
    SN# S-675-000181/L-675-300281 & Up
    SCREW
    SN# S-675-000181/L-675-300281 & Up
  • 26
    13-82186M WASHER, LOCK
    SN# S-675-000181/L-675-300281 & Up
    WASHER, LOCK
    SN# S-675-000181/L-675-300281 & Up
  • 27
    27-80757 GASKET, FUEL PUMP TO CRANKCASE
    GASKET, FUEL PUMP TO CRANKCASE
  • 28
    10-827043M BOLT
    BOLT
  • 29
    12-82213M WASHER
    WASHER
  • -
    27-84168M GASKET SET
    GASKET SET
