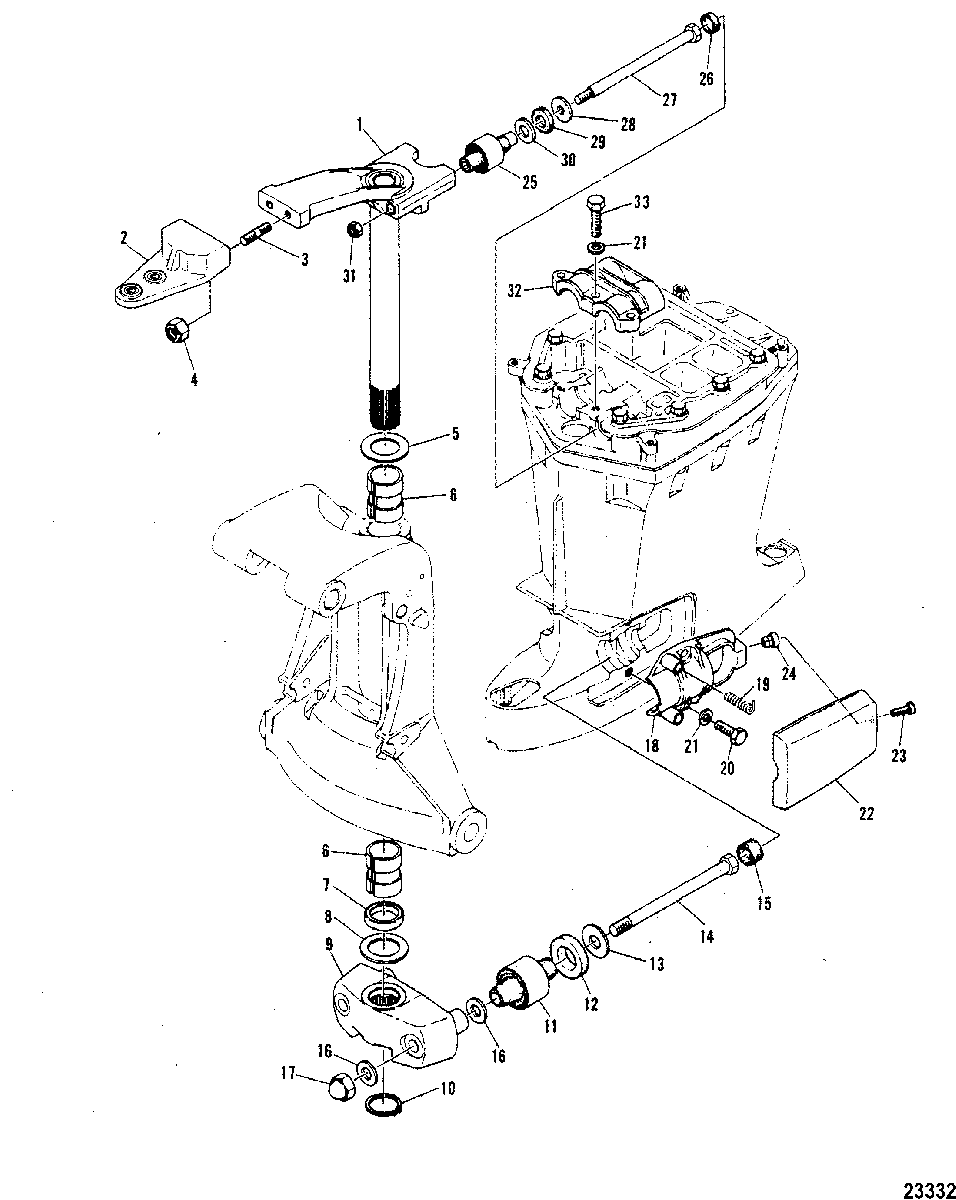

MOUNTING SYSTEM для Mariner - 60 (2 CYL.) E-675-00101 THRU E-675-001170

  • №
    Артикул
    Название
  • 1
    19144M ARM AND SHAFT ASSEMBLY (SHORT SHAFT)
    ARM AND SHAFT ASSEMBLY (SHORT SHAFT)
  • 1
    19145T ARM AND SHAFT ASSEMBLY (LONG SHAFT)
    ARM AND SHAFT ASSEMBLY (LONG SHAFT)
  • 2
    81482M PLATE, STEERING (RIDE GUIDE)
    PLATE, STEERING (RIDE GUIDE)
  • 3
    16-81742M STUD, STEERING PLATE
    STUD, STEERING PLATE
  • 4
    11-81785M LOCKNUT
    LOCKNUT
  • 5
    12-19146M WASHER
    WASHER
  • 6
    23-81955M BUSHING
    BUSHING
  • 7
    26-98950M SEAL, Oil, STEERING SHAFT
    SEAL, Oil, STEERING SHAFT
  • 8
    12-81839M WASHER
    WASHER
  • 9
    81432M HOUSING, LOWER MOUNT
    HOUSING, LOWER MOUNT
  • 10
    53-82325M CIRCLIP
    CIRCLIP
  • 11
    84430M MOUNT, LOWER
    SN# S-675-000781/L-675-302051 & Up
    MOUNT, LOWER
    SN# S-675-000781/L-675-302051 & Up
  • 11
    81435M MOUNT, Housing
    SN# S-675-000780/L-675-302050 & Below
    MOUNT, Housing
    SN# S-675-000780/L-675-302050 & Below
  • 12
    12-84431M WASHER
    SN# S-675-000781/L-675-302051 & Up
    WASHER
    SN# S-675-000781/L-675-302051 & Up
  • 12
    12-81860M WASHER
    SN# S-675-000780/L-675-302050 & Below
    WASHER
    SN# S-675-000780/L-675-302050 & Below
  • 13
    12-84432M WASHER
    SN# S-675-000781/L-675-302051 & Up
    WASHER
    SN# S-675-000781/L-675-302051 & Up
  • 13
    12-83915M WASHER
    SN# S-675-000780/L-675-302050 & Below
    WASHER
    SN# S-675-000780/L-675-302050 & Below
  • 14
    10-81717M BOLT
    BOLT
  • 15
    81436M BUMPER
    BUMPER
  • 16
    12-84429M WASHER
    SN# S-675-000781/L-675-302051 & Up
    WASHER
    SN# S-675-000781/L-675-302051 & Up
  • 16
    12-81811M WASHER
    SN# S-675-000780/L-675-302050 & Below
    WASHER
    SN# S-675-000780/L-675-302050 & Below
  • 17
    11-82397M NUT
    NUT
  • 18
    84433M RETAINER, LOWER MOUNT
    SN# S-675-000781/L-675-302051 & Up
    RETAINER, LOWER MOUNT
    SN# S-675-000781/L-675-302051 & Up
  • 18
    81433M RETAINER, LOWER MOUNT
    SN# S-675-000780/L-675-302050 & Below
    RETAINER, LOWER MOUNT
    SN# S-675-000780/L-675-302050 & Below
  • 19
    24-82087M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 20
    10-43106M BOLT
    BOLT
  • 21
    13-82215M LOCKWASHER
    LOCKWASHER
  • 22
    81434M COVER, LOWER MOUNT
    COVER, LOWER MOUNT
  • 23
    10-83870M SCREW
    SCREW
  • 24
    11-81779M NUT
    NUT
  • 25
    81676T MOUNT, Housing, UPPER
    MOUNT, Housing, UPPER
  • 26
    81431M BUMPER
    BUMPER
  • 27
    10-81714M BOLT
    BOLT
  • 28
    12-81825M WASHER
    WASHER
  • 29
    12-81857M WASHER
    WASHER
  • 30
    12-81803M WAHSER
    WAHSER
  • 31
    11-81783M NUT
    NUT
  • 32
    81429M RETAINER, UPPER MOUNT
    RETAINER, UPPER MOUNT
  • 33
    10-82442M BOLT
    BOLT
