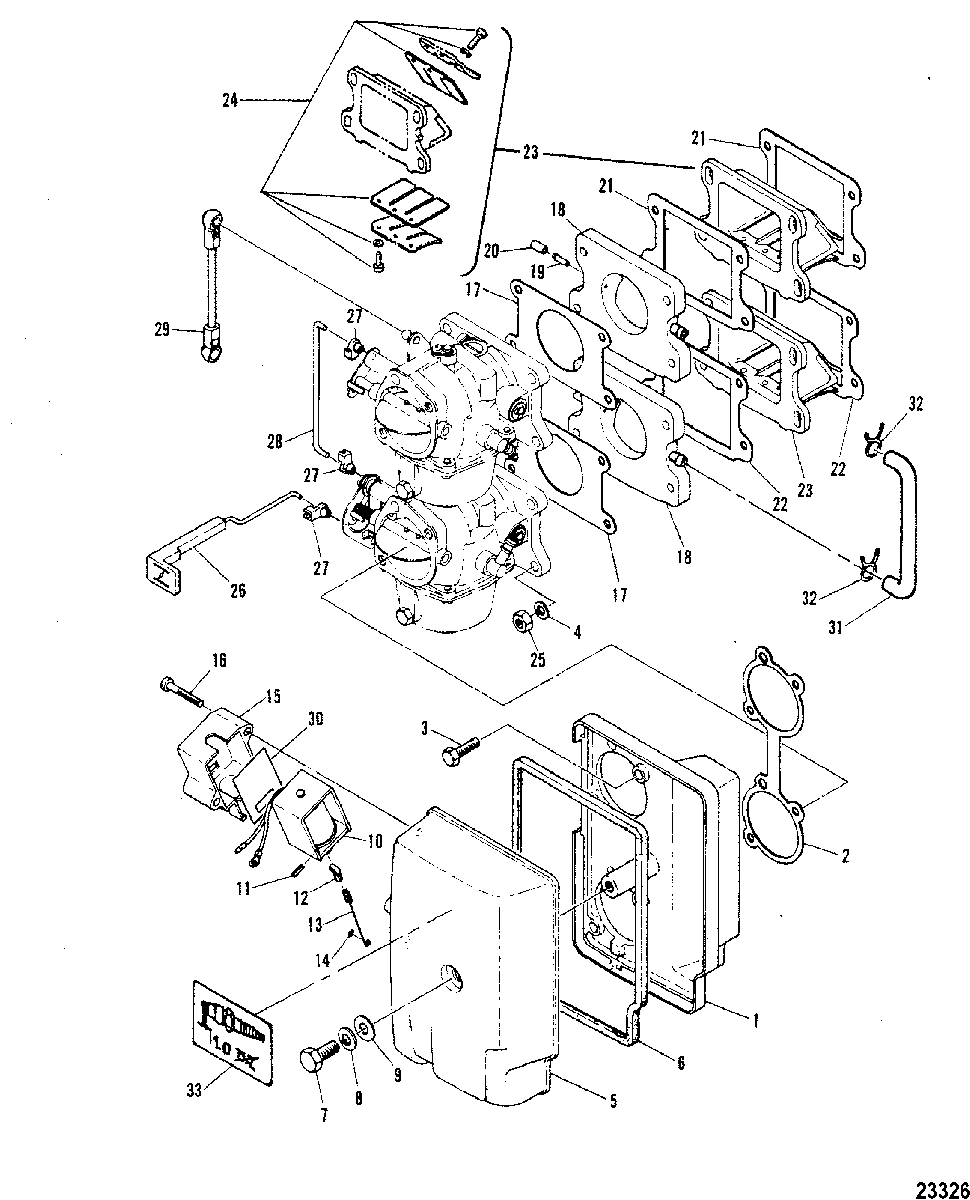

INTAKE MANIFOLD для Mariner - 60 (2 CYL.) E-675-00101 THRU E-675-001170

  • №
    Артикул
    Название
  • 1
    81274M BASE, AIR INTAKE
    BASE, AIR INTAKE
  • 2
    27-81276M GASKET, AIR INTAKE TO CARBURETOR
    GASKET, AIR INTAKE TO CARBURETOR
  • 3
    10-84058M BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 4
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 5
    81275M COVER, AIR INTAKE
    COVER, AIR INTAKE
  • 6
    27-81273M GASKET, AIR INTAKE
    GASKET, AIR INTAKE
  • 7
    10-82438M BOLT
    BOLT
  • 8
    13-82215M WASHER, LOCK
    WASHER, LOCK
  • 9
    12-82217M WASHER
    WASHER
  • 10
    89-84410M SOLENOID
    SN# S-675-000626/L-675-301586 & Up
    SOLENOID
    SN# S-675-000626/L-675-301586 & Up
  • 10
    89-84410M SOLENOID
    SN# S-675-000625/L-675-301585 & Below
    SOLENOID
    SN# S-675-000625/L-675-301585 & Below
  • 11
    17-82145M PIN, ROLL
    PIN, ROLL
  • 12
    84411M HOOK, WIRE PULL
    SN# S-675-000626/L-675-301586 & Up
    HOOK, WIRE PULL
    SN# S-675-000626/L-675-301586 & Up
  • 12
    81553M HOOK, WIRE PULL
    SN# S-675-000625/L-675-301585 & Below
    HOOK, WIRE PULL
    SN# S-675-000625/L-675-301585 & Below
  • 13
    84412M WIRE, PULL
    SN# S-675-000626/L-675-301586 & Up
    WIRE, PULL
    SN# S-675-000626/L-675-301586 & Up
  • 13
    81552M WIRE, PULL
    SN# S-675-000625/L-675-301585 & Below
    WIRE, PULL
    SN# S-675-000625/L-675-301585 & Below
  • 14
    25-82258M O-RING, PULL WIRE
    O-RING, PULL WIRE
  • 15
    81551M COVER, SOLENOID
    COVER, SOLENOID
  • 16
    10-82522M SCREW
    SCREW
  • 17
    27-81272 GASKET, CARBURETOR TO MANIFOLD
    GASKET, CARBURETOR TO MANIFOLD
  • 18
    92632M MANIFOLD, INTAKE
    SN# S-675-000781/L-675-302051 & Up
    MANIFOLD, INTAKE
    SN# S-675-000781/L-675-302051 & Up
  • 18
    92677M MANIFOLD, INTAKE
    SN# S-675-000780/L-675-302050 & Below
    MANIFOLD, INTAKE
    SN# S-675-000780/L-675-302050 & Below
  • 19
    22-80122M FITTING, OVER FLOW
    FITTING, OVER FLOW
  • 20
    80454M CAP, OVER FLOW PIPE
    CAP, OVER FLOW PIPE
  • 21
    27-81269M GASKET, MANIFOLD TO REED VALVE - UPPER
    GASKET, MANIFOLD TO REED VALVE - UPPER
  • 22
    27-81270M GASKET, MANIFOLD TO REED VALVE - LOWER
    GASKET, MANIFOLD TO REED VALVE - LOWER
  • 23
    34-92633M REED VALVE
    SN# S-675-000781/L-675-302051 & Up
    REED VALVE
    SN# S-675-000781/L-675-302051 & Up
  • 23
    34-95630M REED VALVE
    SN# S-675-000780/L-675-302050 & Below
    REED VALVE
    SN# S-675-000780/L-675-302050 & Below
  • 24
    34-92634M REED SET (REED STOPS NOT INCLUDED)
    REED SET (REED STOPS NOT INCLUDED)
  • 25
    11-82389M NUT
    NUT
  • 26
    81337M ROD, CHOKE
    ROD, CHOKE
  • 27
    16333 BRACKET, CHOKE LEVER
    BRACKET, CHOKE LEVER
  • 28
    810938M ROD, CHOKE LINK
    ROD, CHOKE LINK
  • 29
    810939M ROD, THROTTLE ADJUSTMENT
    ROD, THROTTLE ADJUSTMENT
  • 30
    81554M DAMPER
    DAMPER
  • 31
    32-84415M HOSE
    SN# S-675-000781/L-675-302051 & Up
    HOSE
    SN# S-675-000781/L-675-302051 & Up
  • 32
    54-82047M CLAMP, HOSE
    SN# S-675-000781/L-675-302051 & Up
    CLAMP, HOSE
    SN# S-675-000781/L-675-302051 & Up
  • 33
    37-84416M DECAL
    SN# S-675-000781/L-675-302051 & Up
    DECAL
    SN# S-675-000781/L-675-302051 & Up
  • -
    27-84168M GASKET SET
    GASKET SET
  • -
    84419M REPAIR KIT
    REPAIR KIT
