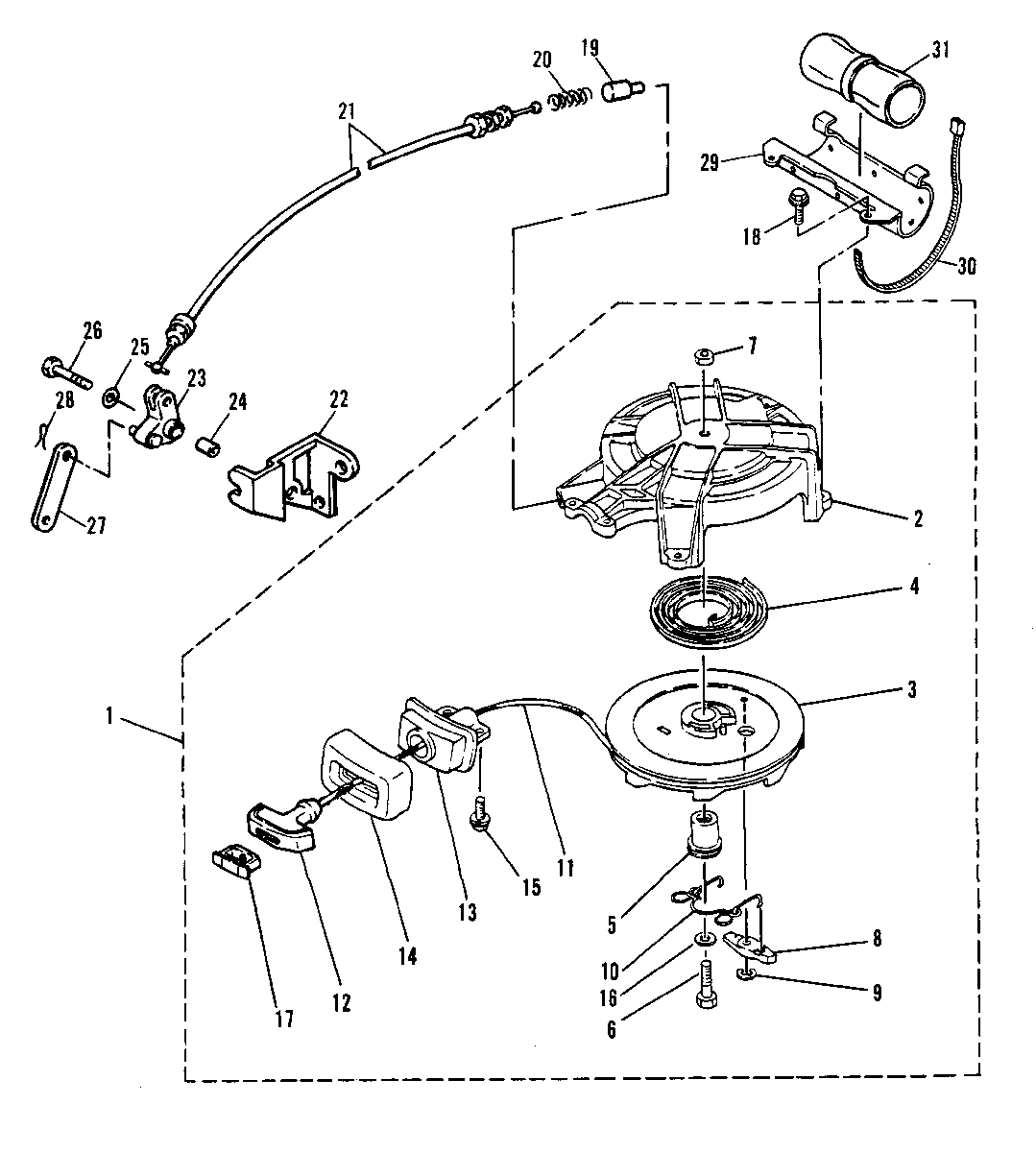

RECOIL STARTER для Mariner - 5C 6E3-102151 AND UP

  • №
    Артикул
    Название
  • 1
    2169-9217M STARTER ASS'Y
    STARTER ASS'Y
  • 2
    2169-9218M CASE, STARTER
    CASE, STARTER
  • 3
    50-99986M STARTER, SHEAVE
    STARTER, SHEAVE
  • 4
    24-95484M SPRING, SPIRAL
    SPRING, SPIRAL
  • 5
    91680M SHAFT
    SHAFT
  • 6
    10-83285M BOLT
    SERIAL (M-110396 ML-406501) AND ABOVE
    BOLT
    SERIAL (M-110396 ML-406501) AND ABOVE
  • 6
    10-91681M BOLT
    SERIAL (M-110395 ML-406500) AND BELOW
    BOLT
    SERIAL (M-110395 ML-406500) AND BELOW
  • 7
    11-82389M NUT
    NUT
  • 8
    83252M PAWL, DRIVE
    PAWL, DRIVE
  • 9
    53-84895M SNAP RING
    SNAP RING
  • 10
    24-91682M SPRING, DRIVE PAWL
    SPRING, DRIVE PAWL
  • 11
    50-12066Q10 STARTER ROPE
    STARTER ROPE
  • 12
    95468M HANDLE, STARTER
    HANDLE, STARTER
  • 13
    41251M GUIDE, ROPE
    GUIDE, ROPE
  • 14
    91685M SEAL, RUBBER
    SEAL, RUBBER
  • 15
    10-91686M BOLT
    BOLT
  • 16
    12-92564M WASHER
    SERIAL (M-110396 ML-406501) AND ABOVE
    WASHER
    SERIAL (M-110396 ML-406501) AND ABOVE
  • 17
    18841M COVER
    SERIAL (M-154200 ML-430160) AND ABOVE
    COVER
    SERIAL (M-154200 ML-430160) AND ABOVE
  • 17
    814491A1 COVER
    SERIAL (M-006976 THRU 154199 ML-304984 THRU 430159)
    COVER
    SERIAL (M-006976 THRU 154199 ML-304984 THRU 430159)
  • 18
    10-91674M BOLT
    BOLT
  • 19
    81106M PLUNGER
    PLUNGER
  • 20
    24-82079M SPRING
    SPRING
  • 21
    96391M WIRE COMPLETE
    WIRE COMPLETE
  • 22
    96392M BRACKET
    SERIAL (M-159237 ML-433188) AND ABOVE
    BRACKET
    SERIAL (M-159237 ML-433188) AND ABOVE
  • 22
    96392M BRACKET
    SERIAL (M-159236 ML-433187) AND BELOW
    BRACKET
    SERIAL (M-159236 ML-433187) AND BELOW
  • 23
    96393M ARM
    ARM
  • 24
    23-81974M COLLAR
    COLLAR
  • 25
    12-83769M WASHER
    WASHER
  • 26
    10-84058M BOLT
    BOLT
  • 27
    96383M LINK
    LINK
  • 28
    18-82051M CLIP
    CLIP
  • 29
    96394M BRACKET
    BRACKET
  • 30
    61990 STRAP
    SERIAL (M-006976 ML-304984) AND ABOVE
    STRAP
    SERIAL (M-006976 ML-304984) AND ABOVE
  • 30
    54-816311T STRAP
    SERIAL (M-006975 ML-304983) AND BELOW
    STRAP
    SERIAL (M-006975 ML-304983) AND BELOW
  • 31
    91-803581 TOOL KIT
    TOOL KIT
