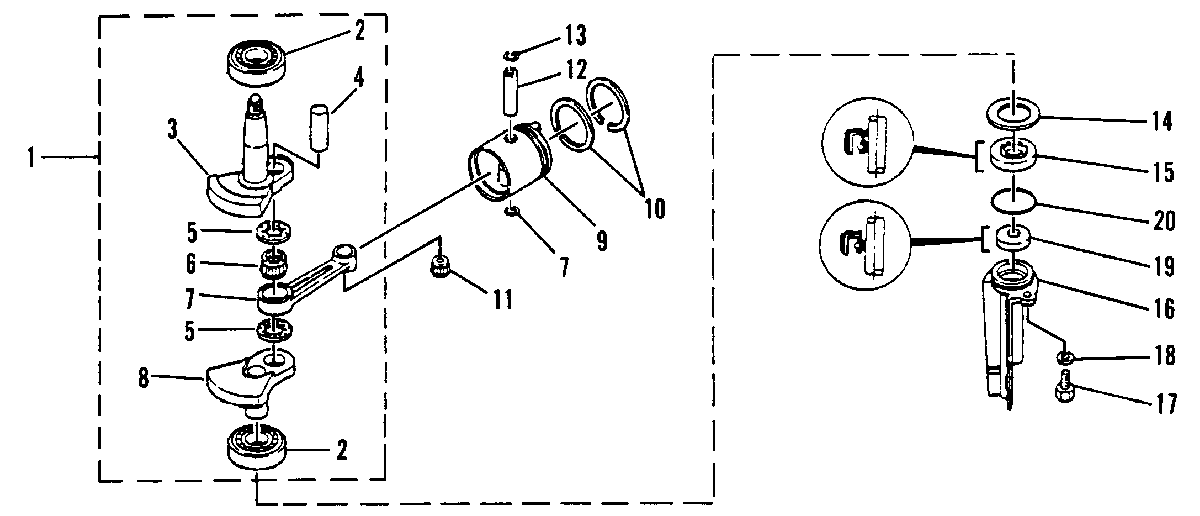

CRANKSHAFT AND PISTON для Mariner - 5C 6E3-102151 AND UP

  • №
    Артикул
    Название
  • 1
    463-8388M CRANK SHAFT ASS'Y
    CRANK SHAFT ASS'Y
  • 2
    30-18859T BEARING
    BEARING
  • 3
    99084M CRANKSHAFT 1
    CRANKSHAFT 1
  • 4
    17-14193M PIN, CRANKSHAFT 1
    PIN, CRANKSHAFT 1
  • 5
    12-84620M WASHER
    WASHER
  • 6
    31-99083M BEARING, CYLINDERICAL
    BEARING, CYLINDERICAL
  • 7
    629-9491M ROD, CONNECTING
    ROD, CONNECTING
  • 8
    99085M CRANKSHAFT 2
    CRANKSHAFT 2
  • 9
    761-8389M PISTON (STD)
    PISTON (STD)
  • 10
    39-14197T PISTON RING SET (STD)
    PISTON RING SET (STD)
  • 11
    31-91721M BEARING
    BEARING
  • 12
    41-80005M PIN
    SERIAL (M-136244 ML-420839) AND ABOVE
    PIN
    SERIAL (M-136244 ML-420839) AND ABOVE
  • 12
    41-80005M PIN
    SERIAL (M-136243 ML-420838) AND BELOW
    PIN
    SERIAL (M-136243 ML-420838) AND BELOW
  • 13
    53-82342M SNAP RING
    SNAP RING
  • 14
    15-83423M WASHER
    WASHER
  • 15
    26-18843M OIL SEAL
    SERIAL (M-154200 ML-430160) AND ABOVE
    OIL SEAL
    SERIAL (M-154200 ML-430160) AND ABOVE
  • 15
    26-18843M OIL SEAL
    SERIAL (M-154199 ML-430159) AND BELOW
    OIL SEAL
    SERIAL (M-154199 ML-430159) AND BELOW
  • 16
    814455M HOUSING, OIL SEAL
    SERIAL (M-159237 ML-433188) AND ABOVE
    HOUSING, OIL SEAL
    SERIAL (M-159237 ML-433188) AND ABOVE
  • 16
    814455M HOUSING, OIL SEAL
    SERIAL (M-149804 THRU 159236 ML-427442 THRU 433187)
    HOUSING, OIL SEAL
    SERIAL (M-149804 THRU 159236 ML-427442 THRU 433187)
  • 16
    814455M HOUSING, OIL SEAL
    SERIAL (M-154199 ML-430159) AND BELOW
    HOUSING, OIL SEAL
    SERIAL (M-154199 ML-430159) AND BELOW
  • 17
    10-826957M BOLT
    BOLT
  • 18
    12-82214M WASHER
    WASHER
  • 19
    26-95472M OIL SEAL
    SERIAL (M-006976 ML-304984) AND ABOVE
    OIL SEAL
    SERIAL (M-006976 ML-304984) AND ABOVE
  • 19
    26-91726M OIL SEAL
    SERIAL (M-006975 ML-304983) AND BELOW
    OIL SEAL
    SERIAL (M-006975 ML-304983) AND BELOW
  • 20
    25-91727M O-RING
    O-RING
