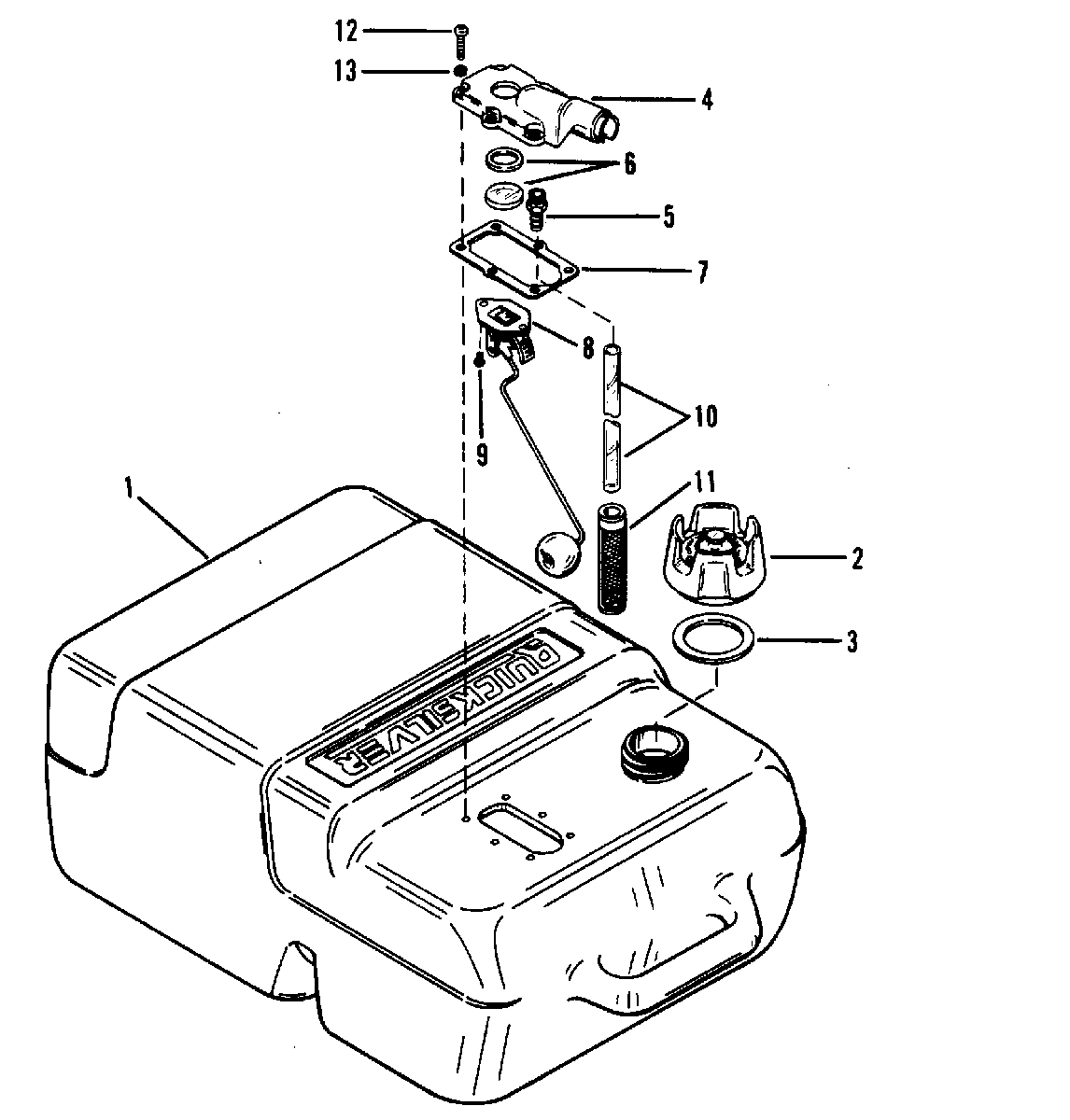

FUEL TANK (PLASTIC-6.6 GALLON) для Mariner - 5C 6E3-102151 AND UP

  • №
    Артикул
    Название
  • 1
    1259-812410A1 FUEL TANK ASSEMBLY (PLASTIC-6.6 GAL.)
    FUEL TANK ASSEMBLY (PLASTIC-6.6 GAL.)
  • 2
    1259-812410A1 FILLER CAP
    FILLER CAP
  • 3
    27-8169771 GASKET, FILLER CAP
    GASKET, FILLER CAP
  • 4
    17792A1 PICK-UP BODY ASSEMBLY
    PICK-UP BODY ASSEMBLY
  • 5
    22-826178 ADAPTOR
    ADAPTOR
  • 6
    98542A1 WINDOW ASSEMBLY
    WINDOW ASSEMBLY
  • 7
    27-18026 GASKET, PICK-UP BODY
    GASKET, PICK-UP BODY
  • 8
    17971A2 FUEL GAUGE ASSEMBLY
    FUEL GAUGE ASSEMBLY
  • 9
    10-62568 SCREW, FUEL GAUGE
    SCREW, FUEL GAUGE
  • 10
    12-35044 HOSE
    HOSE
  • 11
    35-823534 FILTER
    FILTER
  • 12
    10-18027 SCREW, PICK-UP BODY
    SCREW, PICK-UP BODY
  • 13
    12-29070 WASHER, PICK-UP BODY SCREW
    WASHER, PICK-UP BODY SCREW
