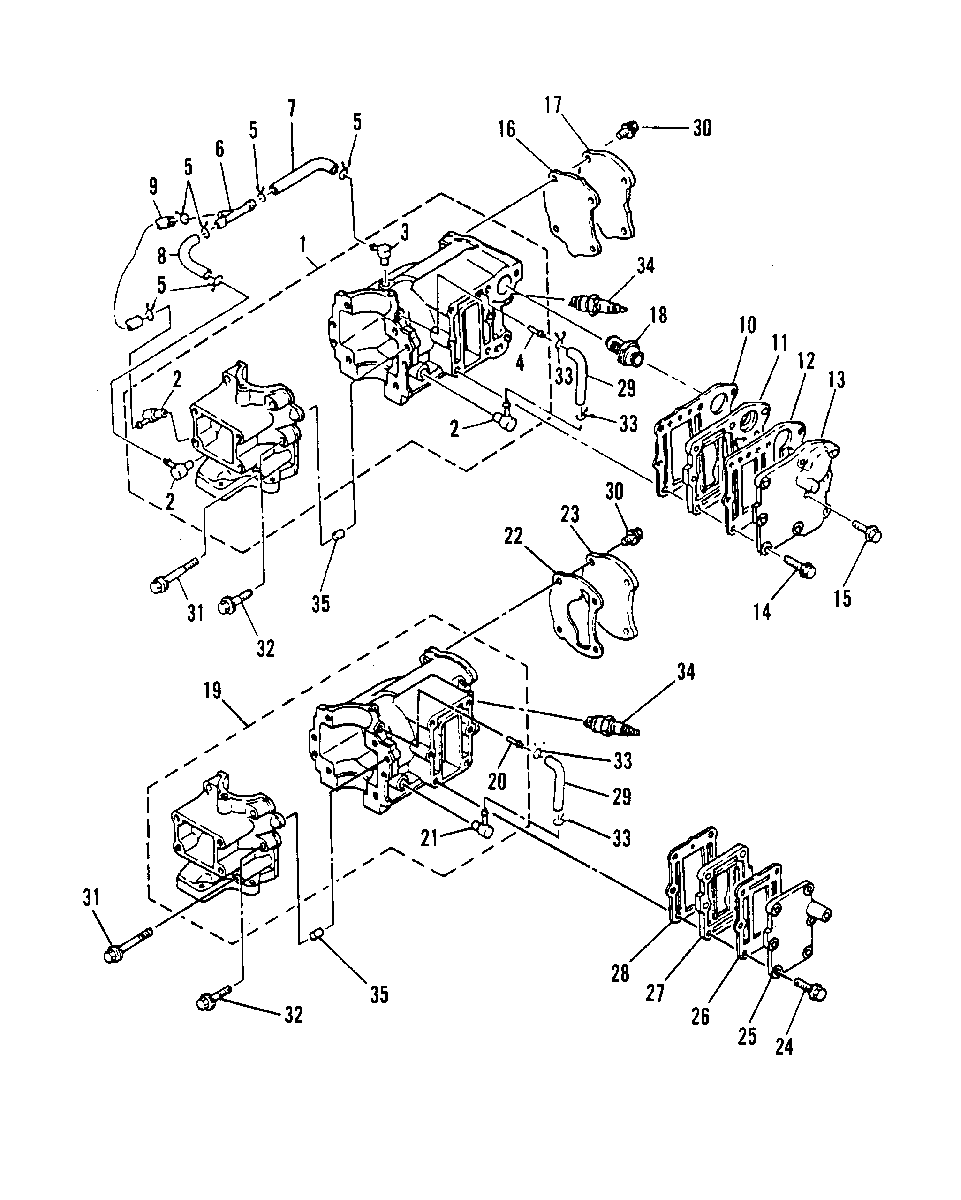

CRANKCASE AND CYLINDER HEAD для Mariner - 5C 6E3-102151 AND UP

  • №
    Артикул
    Название
  • 1
    968-9507M CRANKCASE ASS'Y
    SERIAL (M-108871 ML-404901) AND ABOVE
    CRANKCASE ASS'Y
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 2
    21-80727M CHECK VALVE ASS'Y
    SERIAL (M-108871 ML-404901) AND ABOVE
    CHECK VALVE ASS'Y
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 3
    22-99988M NIPPLE, HOSE
    SERIAL (M-108871 ML-404901) AND ABOVE
    NIPPLE, HOSE
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 4
    22-80122M FITTING
    SERIAL (M-108871 ML-404901) AND ABOVE
    FITTING
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 5
    54-82046M CLIP
    SERIAL (M-108871 ML-404901) AND ABOVE
    CLIP
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 6
    22-99989M FITTING, JOINT
    SERIAL (M-108871 ML-404901) AND ABOVE
    FITTING, JOINT
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 7
    32-811045M HOSE
    SERIAL (M-108871 ML-404901) AND ABOVE
    HOSE
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 8
    32-811045M HOSE
    SERIAL (M-108871 ML-404901) AND ABOVE
    HOSE
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 9
    32-811045M HOSE
    SERIAL (M-108871 ML-404901) AND ABOVE
    HOSE
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 10
    27-99998M GASKET, INNER COVER
    SERIAL (M-108871 ML-404901) AND ABOVE
    GASKET, INNER COVER
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 11
    99999001 INNER COVER, EXHAUST
    SERIAL (M-108871 ML-404901) AND ABOVE
    INNER COVER, EXHAUST
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 12
    27-41279M GASKET, OUTER COVER
    SERIAL (M-108871 ML-404901) AND ABOVE
    GASKET, OUTER COVER
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 13
    41281M OUTER COVER, EXHAUST
    SERIAL (M-108871 ML-404901) AND ABOVE
    OUTER COVER, EXHAUST
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 14
    10-11945M BOLT
    SERIAL (M-108871 ML-404901) AND ABOVE
    BOLT
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 15
    10-91686M BOLT
    SERIAL (M-108871 ML-404901) AND ABOVE
    BOLT
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 16
    27-41283M GASKET, HEAD COVER
    SERIAL (M-108871 ML-404901) AND ABOVE
    GASKET, HEAD COVER
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 17
    811680M COVER, CYLINDER HEAD
    SERIAL (M-108871 ML-404901) AND ABOVE
    COVER, CYLINDER HEAD
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 18
    11919001 THERMOSTAT
    SERIAL (M-136244 ML-420839) AND ABOVE
    THERMOSTAT
    SERIAL (M-136244 ML-420839) AND ABOVE
  • 18
    83282M THERMOSTAT
    SERIAL (M-108871 THRU 136243 ML-404901 THRU 420838)
    THERMOSTAT
    SERIAL (M-108871 THRU 136243 ML-404901 THRU 420838)
  • 19
    968-8387M CRANKCASE ASS'Y
    SERIAL (M-108870 ML-404900) AND BELOW
    CRANKCASE ASS'Y
    SERIAL (M-108870 ML-404900) AND BELOW
  • 20
    22-80122M FITTING
    SERIAL (M-108870 ML-404900) AND BELOW
    FITTING
    SERIAL (M-108870 ML-404900) AND BELOW
  • 21
    21-80727M CHECK VALVE ASS'Y
    SERIAL (M-108870 ML-404900) AND BELOW
    CHECK VALVE ASS'Y
    SERIAL (M-108870 ML-404900) AND BELOW
  • 22
    27-96384M GASKET, HEAD COVER
    SERIAL (M-108870 ML-404900) AND BELOW
    GASKET, HEAD COVER
    SERIAL (M-108870 ML-404900) AND BELOW
  • 23
    96381M COVER, CYLINDER HEAD
    SERIAL (M-108870 ML-404900) AND BELOW
    COVER, CYLINDER HEAD
    SERIAL (M-108870 ML-404900) AND BELOW
  • 24
    10-11945M BOLT
    SERIAL (M-108870 ML-404900) AND BELOW
    BOLT
    SERIAL (M-108870 ML-404900) AND BELOW
  • 25
    96399M OUTER COVER, EXHAUST
    SERIAL (M-108870 ML-404900) AND BELOW
    OUTER COVER, EXHAUST
    SERIAL (M-108870 ML-404900) AND BELOW
  • 26
    27-96380M GASKET, OUTER COVER
    SERIAL (M-108870 ML-404900) AND BELOW
    GASKET, OUTER COVER
    SERIAL (M-108870 ML-404900) AND BELOW
  • 27
    96397M INNER COVER, EXHAUST
    SERIAL (M-108870 ML-404900) AND BELOW
    INNER COVER, EXHAUST
    SERIAL (M-108870 ML-404900) AND BELOW
  • 28
    27-96398M GASKET, INNER COVER
    SERIAL (M-108870 ML-404900) AND BELOW
    GASKET, INNER COVER
    SERIAL (M-108870 ML-404900) AND BELOW
  • 29
    32-811045M HOSE
    HOSE
  • 30
    10-91686M BOLT
    BOLT
  • 31
    10-91710M BOLT
    BOLT
  • 32
    10-91681M BOLT
    BOLT
  • 33
    54-82046M CLIP
    CLIP
  • 34
    33-8M0114739 SPARK PLUG
    SPARK PLUG
  • 35
    17-82364M PIN
    PIN
  • 35
    18854M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
    REPLACEMENT PARTS
    POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
    REPLACEMENT PARTS
  • 35
    27-14196M GASKET SET, POWERHEAD
    REPLACEMENT PARTS SERIAL (M-144067 ML-425167) AND ABOVE
    GASKET SET, POWERHEAD
    REPLACEMENT PARTS SERIAL (M-144067 ML-425167) AND ABOVE
  • 35
    27-41289M GASKET SET, POWERHEAD
    REPLACEMENT PARTS SERIAL (M-108871 THRU 144066 ML-404901 THRU 425196)
    GASKET SET, POWERHEAD
    REPLACEMENT PARTS SERIAL (M-108871 THRU 144066 ML-404901 THRU 425196)
  • 35
    27-96386M GASKET SET, POWERHEAD
    REPLACEMENT PARTS SERIAL (M-108870 ML-404900) AND BELOW
    GASKET SET, POWERHEAD
    REPLACEMENT PARTS SERIAL (M-108870 ML-404900) AND BELOW
