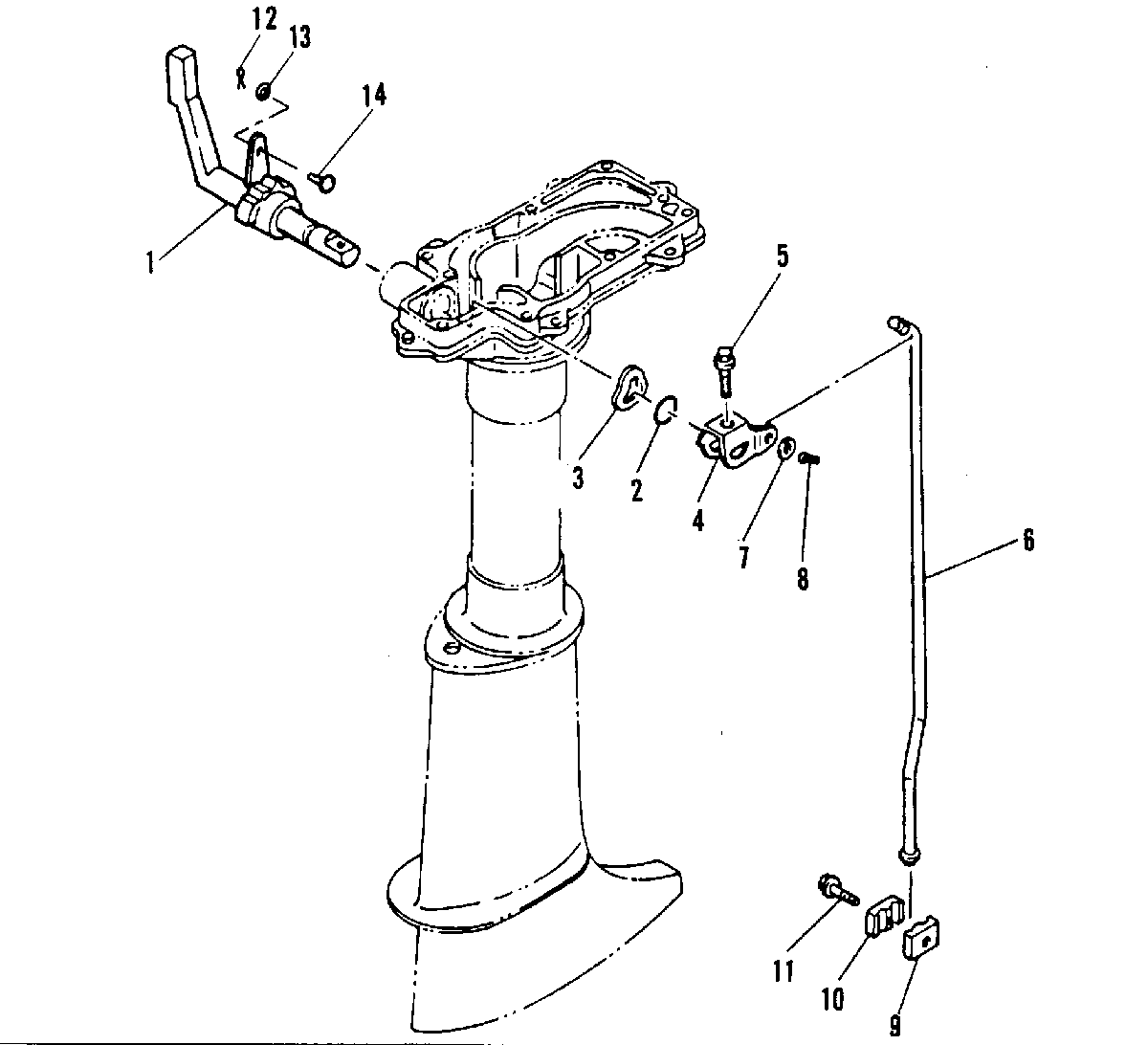

GEAR SHIFT LINKAGE для Mariner - 5C 6E3-102151 AND UP
-
№АртикулНазвание
-
195486M HANDLE, GEAR SHIFTHANDLE, GEAR SHIFT
-
225-91774M O-RINGO-RING
-
313-91775M WASHER, WAVEWASHER, WAVE
-
491776M LEVER, SHIFT RODLEVER, SHIFT ROD
-
510-11945M BOLTBOLT
-
691777M ROD, SHIFT (SHORT)ROD, SHIFT (SHORT)
-
691778M ROD, SHIFT (LONG)ROD, SHIFT (LONG)
-
712-82211M WASHERWASHER
-
818-82125M PIN, COTTERPIN, COTTER
-
998959M CONNECTOR, SHIFT ROD
SERIAL (M-102656 ML-040111) AND ABOVECONNECTOR, SHIFT ROD
SERIAL (M-102656 ML-040111) AND ABOVE -
980049M CONNECTOR, SHIFT ROD
SERIAL (M-102655 ML-40110) AND BELOWCONNECTOR, SHIFT ROD
SERIAL (M-102655 ML-40110) AND BELOW -
1098960M CONNECTOR, SHIFT ROD
SERIAL (M-102656 ML-040111) AND ABOVECONNECTOR, SHIFT ROD
SERIAL (M-102656 ML-040111) AND ABOVE -
1080050M CONNECTOR, SHIFT ROD
SERIAL (M-102655 ML-040110) AND BELOWCONNECTOR, SHIFT ROD
SERIAL (M-102655 ML-040110) AND BELOW -
1110-91674M BOLTBOLT
-
1218-96560M PINPIN
-
1312-83768M WASHERWASHER
-
1418-82125M PINPIN
