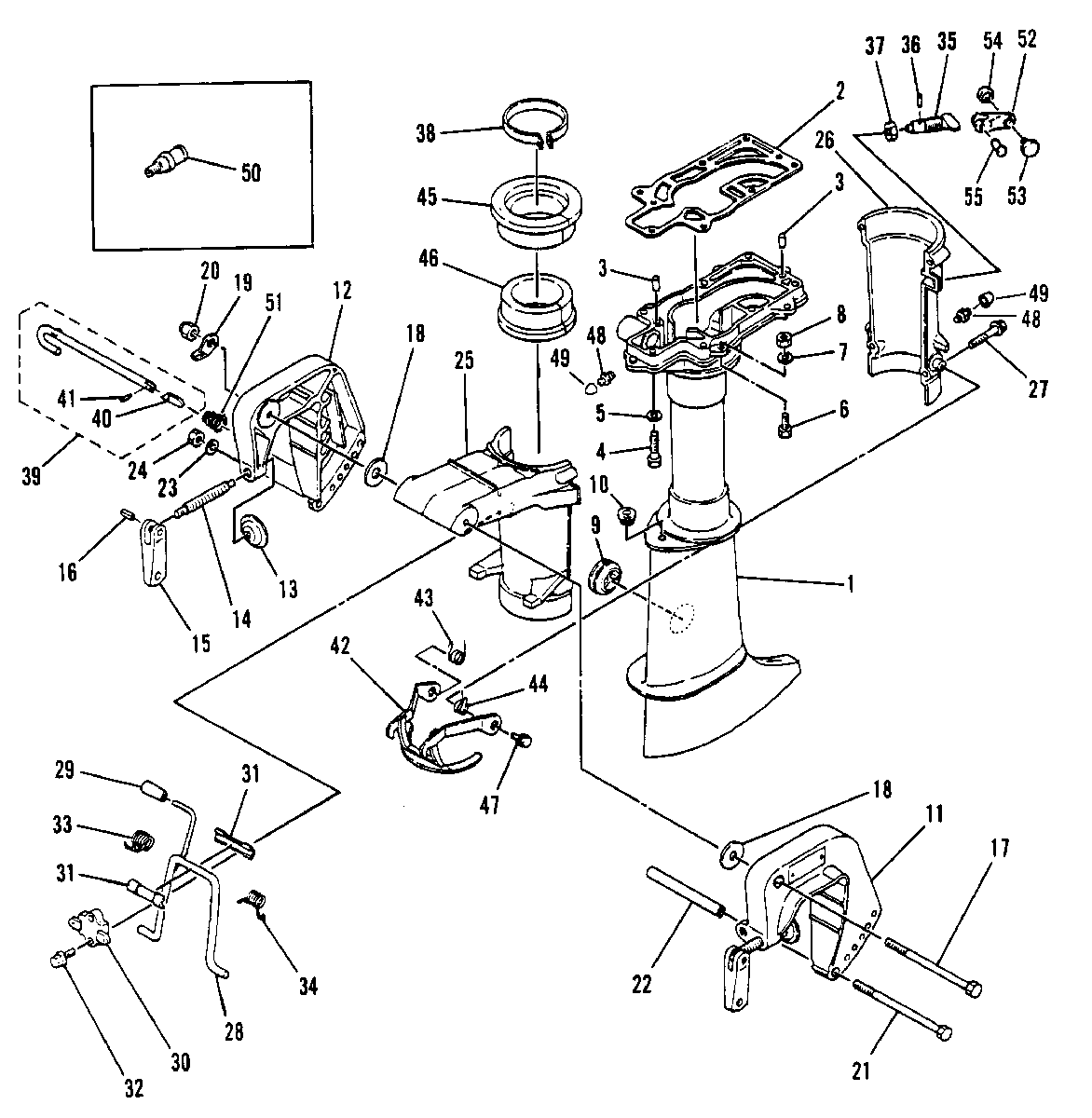

DRIVESHAFT HOUSING/ CLAMP AND SWIVEL BRACKET для Mariner - 5C 6E3-102151 AND UP

  • №
    Артикул
    Название
  • 21
    10-82858M BOLT
    BOLT
  • 22
    23-82116M SPACER
    SPACER
  • 23
    12-82214M WASHER
    WASHER
  • 24
    11-82389M NUT
    NUT
  • 25
    1485-811997M BRACKET, SWIVEL
    SERIAL (M-162953 ML-435351) AND ABOVE
    BRACKET, SWIVEL
    SERIAL (M-162953 ML-435351) AND ABOVE
  • 25
    1485-9705M BRACKET, SWIVEL
    SERIAL (M-162952 ML-435350) AND BELOW
    BRACKET, SWIVEL
    SERIAL (M-162952 ML-435350) AND BELOW
  • 26
    1485-9342M BRACKET, SWIVEL
    SERIAL (M-136244 ML-420839) AND ABOVE
    BRACKET, SWIVEL
    SERIAL (M-136244 ML-420839) AND ABOVE
  • 26
    1485-9216M BRACKET, SWIVEL
    SERIAL (M-136243 ML-420838) AND BELOW
    BRACKET, SWIVEL
    SERIAL (M-136243 ML-420838) AND BELOW
  • 27
    10-91788M BOLT
    BOLT
  • 28
    91789M LEVER, TILIT STOP
    LEVER, TILIT STOP
  • 29
    91790M KNOB, TILT
    KNOB, TILT
  • 30
    91791M BRACKET, SWIVEL
    BRACKET, SWIVEL
  • 31
    23-80097M BUSHING
    BUSHING
  • 32
    10-91674M BOLT
    BOLT
  • 33
    24-82110M SPRING
    SPRING
  • 34
    24-82111M SPRING
    SPRING
  • 35
    10-810947M SCREW, FRICTION PIECE
    SERIAL (M-162953 ML-435351) AND ABOVE
    SCREW, FRICTION PIECE
    SERIAL (M-162953 ML-435351) AND ABOVE
  • 35
    10-17496M SCREW, FRICTION PIECE
    SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350)
    SCREW, FRICTION PIECE
    SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350)
  • 35
    10-98962M SCREW, FRICTION PIECE
    SERIAL (M-154199 ML-430159) AND BELOW
    SCREW, FRICTION PIECE
    SERIAL (M-154199 ML-430159) AND BELOW
  • 36
    17-91793M PIN
    SERIAL (M-154199 ML-430159) AND BELOW
    PIN
    SERIAL (M-154199 ML-430159) AND BELOW
  • 37
    11-82382M NUT
    NUT
  • 38
    17497M PIECE, FRICTION
    PIECE, FRICTION
  • 39
    17-91795M TILT ROD ASS'Y
    TILT ROD ASS'Y
  • 40
    82857M STOPPER PLATE
    STOPPER PLATE
  • 41
    17-82144M PIN
    PIN
  • 42
    91796M PLATE, TILT LOCK
    PLATE, TILT LOCK
  • 43
    24-91797M SPRING
    SPRING
  • 44
    24-91798M SPRING
    SPRING
  • 45
    23-41258M BUSHING, PIVOT SHAFT
    BUSHING, PIVOT SHAFT
  • 46
    23-41821M BUSHING, PIVOT SHAFT
    BUSHING, PIVOT SHAFT
  • 47
    10-96292M BOLT
    BOLT
  • 48
    22-82369M FITTING, GREASE
    SERIAL (M-136244 ML-420839) AND ABOVE
    FITTING, GREASE
    SERIAL (M-136244 ML-420839) AND ABOVE
  • 49
    81439M CAP, GREASE FITTING
    SERIAL (M-136244 THRU 159236 ML-420838 THRU 433187)
    CAP, GREASE FITTING
    SERIAL (M-136244 THRU 159236 ML-420838 THRU 433187)
  • 50
    22-8M0121335 PLUG, WATER CHECK (OPT)
    SERIAL (M-136244 ML-420839) AND ABOVE
    PLUG, WATER CHECK (OPT)
    SERIAL (M-136244 ML-420839) AND ABOVE
  • 50
    22-8M0121335 PLUG, WATER CHECK (OPT)
    SERIAL (M-136243 ML-420838) AND BELOW
    PLUG, WATER CHECK (OPT)
    SERIAL (M-136243 ML-420838) AND BELOW
  • 51
    24-814456M SPRING, CONICAL
    SERIAL (M-159237 ML-433188) AND ABOVE
    SPRING, CONICAL
    SERIAL (M-159237 ML-433188) AND ABOVE
  • 52
    810948M KNOB, STEERING LOCK
    SERIAL (M-162953 ML-435351) AND ABOVE
    KNOB, STEERING LOCK
    SERIAL (M-162953 ML-435351) AND ABOVE
  • 53
    810949M INDICATOR
    SERIAL (M-162953 ML-435351) AND ABOVE
    INDICATOR
    SERIAL (M-162953 ML-435351) AND ABOVE
  • 54
    810950M INDICATOR
    SERIAL (M-162953 ML-435351) AND ABOVE
    INDICATOR
    SERIAL (M-162953 ML-435351) AND ABOVE
  • 55
    17-810951M RIVET
    SERIAL (M-162953 ML-435351) AND ABOVE
    RIVET
    SERIAL (M-162953 ML-435351) AND ABOVE
