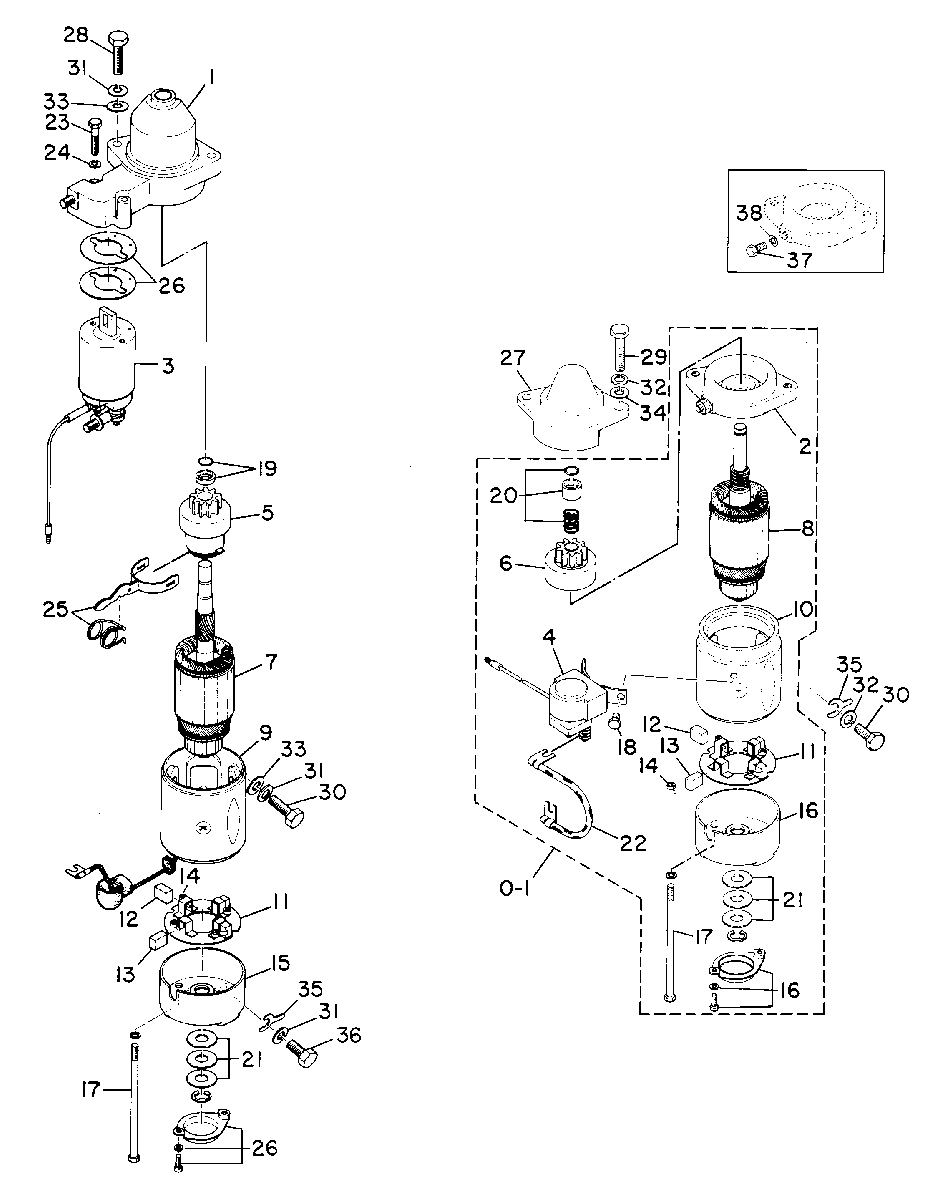

ELECTRIC STARTER MOTOR для Mariner - 55 663-02730 AND BELOW
-
№АртикулНазвание
-
0-150-97072T ELECTRIC MORTOR ASS'YELECTRIC MORTOR ASS'Y
-
181501M BRACKET, DRIVE END COVER
SERIAL 00000000-00002005BRACKET, DRIVE END COVER
SERIAL 00000000-00002005 -
283654M FRONT BRACKET
SERIAL 00002006-09999999FRONT BRACKET
SERIAL 00002006-09999999 -
389-81512M SOLENOID, STARTER MOTOR
SERIAL 00000000-00002005SOLENOID, STARTER MOTOR
SERIAL 00000000-00002005 -
489-81513M SWITCH
SERIAL 00002006-09999999SWITCH
SERIAL 00002006-09999999 -
581503M PINION, STARTER
SERIAL 00000000-00002005PINION, STARTER
SERIAL 00000000-00002005 -
681504T GEAR
SERIAL 00002006-09999999GEAR
SERIAL 00002006-09999999 -
781509M ARMATURE
SERIAL 00000000-00002006ARMATURE
SERIAL 00000000-00002006 -
827-815010M ARMATURE
SERIAL 00002006-09999999ARMATURE
SERIAL 00002006-09999999 -
981492M STATOR
SERIAL 00000000-00002005STATOR
SERIAL 00000000-00002005 -
1081493M STATOR
SERIAL 00002006-09999999STATOR
SERIAL 00002006-09999999 -
1181507M BRUSH HOLDERBRUSH HOLDER
-
1281494M BRUSH, POSITIVEBRUSH, POSITIVE
-
1381495M BRUSH, NEGATIVEBRUSH, NEGATIVE
-
1381495M BRUSH, NEGATIVEBRUSH, NEGATIVE
-
1424-81496M SPRING, BRUSHSPRING, BRUSH
-
1581498M COVER, COMMUNTATOR END
SERIAL 00000000-00002005COVER, COMMUNTATOR END
SERIAL 00000000-00002005 -
1681499M REAR COVER
SERIAL 00002006-09999999REAR COVER
SERIAL 00002006-09999999 -
1710-81500M THRU-BOLT, COVER ATTACHINGTHRU-BOLT, COVER ATTACHING
-
1810-84088M BOLT
SERIAL 00002006-09999999BOLT
SERIAL 00002006-09999999 -
1981511M PINION STOP KIT
SERIAL 00000000-00002005PINION STOP KIT
SERIAL 00000000-00002005 -
2092671M RING, STOP
SERIAL 00002006-09999999RING, STOP
SERIAL 00002006-09999999 -
2112-81491M WASHER KITWASHER KIT
-
2281497M WIRE, LEAD
SERIAL 00002006-09999999WIRE, LEAD
SERIAL 00002006-09999999 -
2310-83285M BOLT, SOLENOID ATTCHING
SERIAL 00000000-00002005BOLT, SOLENOID ATTCHING
SERIAL 00000000-00002005 -
2412-82214M WASHER, SOLENOID BOLT
SERIAL 00000000-00002005WASHER, SOLENOID BOLT
SERIAL 00000000-00002005 -
2581506M LEVER, SOLENOID
SERIAL 00000000-00002005LEVER, SOLENOID
SERIAL 00000000-00002005 -
2681514M DUST COVER KIT
SERIAL 00000000-00002005DUST COVER KIT
SERIAL 00000000-00002005 -
2781508M COVER
SERIAL 00002006-09999999COVER
SERIAL 00002006-09999999 -
2810-82442M BOLT, STARTER ATTACHING
SERIAL 00000000-00002005BOLT, STARTER ATTACHING
SERIAL 00000000-00002005 -
2910-84236M BOLT, HEXAGON
SERIAL 00002006-09999999BOLT, HEXAGON
SERIAL 00002006-09999999 -
3010-84342M BOLT, FRAME ATTACHINGBOLT, FRAME ATTACHING
-
3113-82215M LOCK WASHER, COVER BOLT
SERIAL 00000000-00002005LOCK WASHER, COVER BOLT
SERIAL 00000000-00002005 -
3213-82215M WASHER, SPRING
SERIAL 00002006-09999999WASHER, SPRING
SERIAL 00002006-09999999 -
3312-82217M WASHER
SERIAL 00000000-00002006WASHER
SERIAL 00000000-00002006 -
3412-82217M WASHER, PLATE
SERIAL 00002006-09999999WASHER, PLATE
SERIAL 00002006-09999999 -
3581485M TERMINALTERMINAL
-
3610-82438M BOLT, COVER
SERIAL 00000000-00002005BOLT, COVER
SERIAL 00000000-00002005 -
3710-82437M BOLT
SERIAL 00002461-09999999BOLT
SERIAL 00002461-09999999 -
3813-82215M WASHER
SERIAL 00002461-09999999WASHER
SERIAL 00002461-09999999
