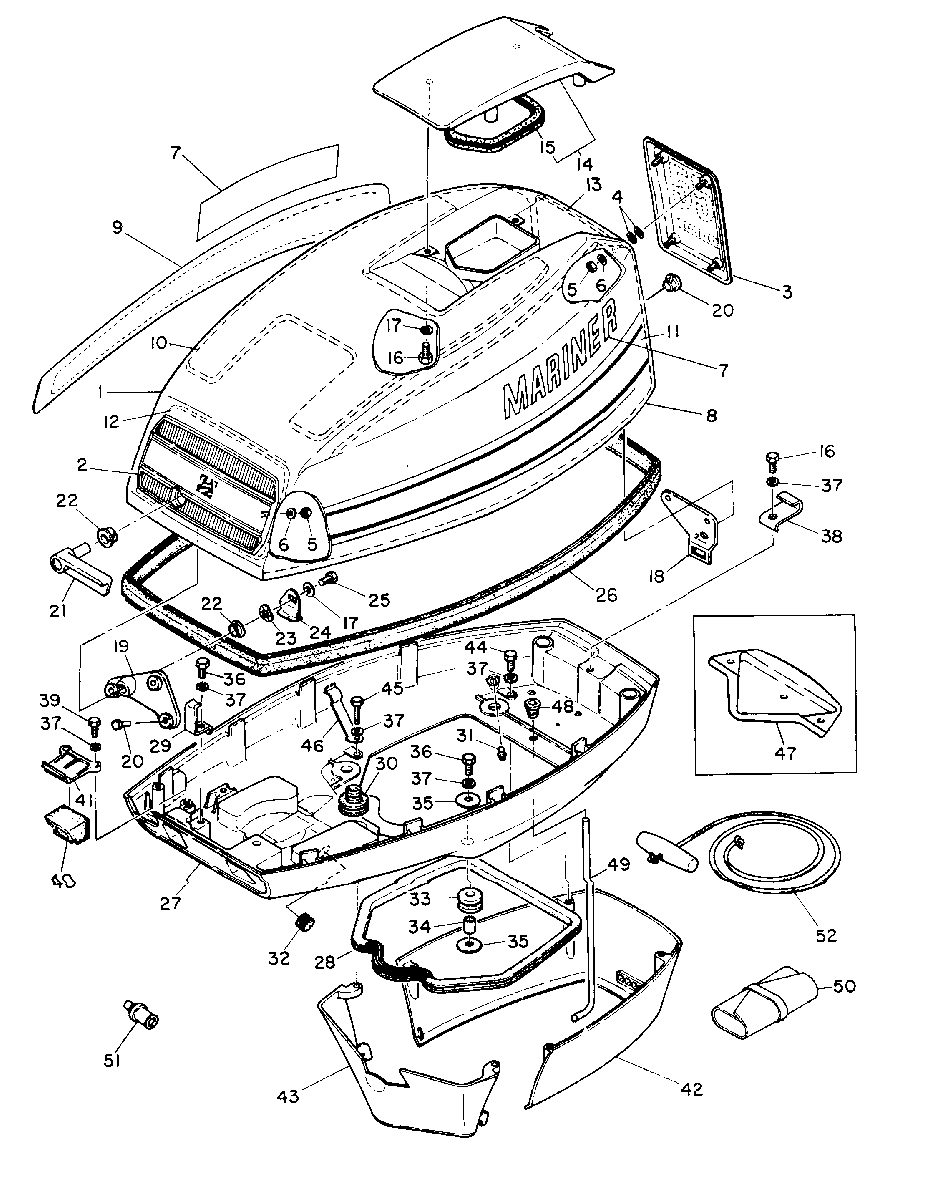

COWLING для Mariner - 55 663-02730 AND BELOW

  • №
    Артикул
    Название
  • 1
    2168-6837M TOP COWL ASS'Y
    TOP COWL ASS'Y
  • 2
    81366M EMBLEM, FRONT
    EMBLEM, FRONT
  • 3
    81367M EMBLEM,REAR
    EMBLEM,REAR
  • 4
    12-80884M DAMPER
    DAMPER
  • 5
    11-82388M NUT, APPLIQUE ATTACHING
    NUT, APPLIQUE ATTACHING
  • 6
    12-82211M WASHER
    WASHER
  • 7
    37-81114M DECAL, MARINER
    DECAL, MARINER
  • 8
    37-82865M DECAL,TRIM-PORT
    DECAL,TRIM-PORT
  • 9
    37-82865M DECAL, TRIM-STARBOARD
    DECAL, TRIM-STARBOARD
  • 10
    83232M RUBBER SOUND BLANKETS
    SERIAL 00000000-00002430
    RUBBER SOUND BLANKETS
    SERIAL 00000000-00002430
  • 11
    83233M RUBBER SOUND BLANKETS
    SERIAL 00000000-00002430
    RUBBER SOUND BLANKETS
    SERIAL 00000000-00002430
  • 12
    84323M RUBBER SOUND BLANKETS
    SERIAL 00000000-00002430
    RUBBER SOUND BLANKETS
    SERIAL 00000000-00002430
  • 13
    83235M RUBBER SOUND BLANKETS
    SERIAL 00000000-00002430
    RUBBER SOUND BLANKETS
    SERIAL 00000000-00002430
  • 14
    81363M AIR DUCT ASS'Y
    AIR DUCT ASS'Y
  • 15
    83146M SEAL, RUBBER
    SEAL, RUBBER
  • 17
    12-82214M WASHER
    WASHER
  • 18
    83145M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 19
    83145M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 20
    17-82982M RIVET
    RIVET
  • 21
    81379M LEVER, COWL CLAMP
    LEVER, COWL CLAMP
  • 22
    23-81949M BUSHING, CLAMP LEVER
    BUSHING, CLAMP LEVER
  • 23
    13-81869M WASHER, WAVE-CLAMP LEVER
    WASHER, WAVE-CLAMP LEVER
  • 24
    81380M CLAMP, COWL
    CLAMP, COWL
  • 25
    10-91772M BOLT, COWL CLAMP ATTACHING
    BOLT, COWL CLAMP ATTACHING
  • 26
    81361M SEAL, TOP COWL
    SEAL, TOP COWL
  • 27
    2168-6838M BOTTOM COWL
    BOTTOM COWL
  • 28
    27-83044M SEAL, BOTTOM COWL TO APRON
    SEAL, BOTTOM COWL TO APRON
  • 29
    81375M HOOK, COWLCLAMP-FRONT
    HOOK, COWLCLAMP-FRONT
  • 30
    25-81369M GROMMET, LOWER COWL
    GROMMET, LOWER COWL
  • 31
    22-81326M FITTING, LOWER COWL
    FITTING, LOWER COWL
  • 32
    25-82061M GROMMET
    SERIAL 00001836-09999999
    GROMMET
    SERIAL 00001836-09999999
  • 33
    25-82065M GROMMER, APRON BOLT
    GROMMER, APRON BOLT
  • 34
    23-81968M COLLAR, APRON BOLT
    COLLAR, APRON BOLT
  • 35
    12-81796M WASHER, APRONBOLT
    WASHER, APRONBOLT
  • 36
    10-83285M BOOLT, COWLING TO DRIVESHAFT HOUSING
    BOOLT, COWLING TO DRIVESHAFT HOUSING
  • 37
    13-82212M LOCK WASHER
    LOCK WASHER
  • 38
    81377M HOOK, COWL-REAR
    HOOK, COWL-REAR
  • 39
    10-826957M BOLT, BUMPER ATTACHING
    BOLT, BUMPER ATTACHING
  • 40
    81370M BUMPER, COWL
    BUMPER, COWL
  • 41
    83236M RETAINER, COWL BUMPER
    RETAINER, COWL BUMPER
  • 42
    95664M APRON, COWL-REAR
    APRON, COWL-REAR
  • 43
    95665M APRON, COWL-FRONT
    APRON, COWL-FRONT
  • 44
    10-82423M BOLT, APRON ATTACHING
    BOLT, APRON ATTACHING
  • 45
    10-82405M BOLT, APRON ATTACHING
    BOLT, APRON ATTACHING
  • 46
    54-82983M CLAMP
    CLAMP
  • 47
    83237M COVER, BOTTOM
    SERIAL 00000000-00001835
    COVER, BOTTOM
    SERIAL 00000000-00001835
  • 48
    23-81376M BUSHING
    SERIAL 00001836-09999999
    BUSHING
    SERIAL 00001836-09999999
  • 49
    32-81324M PIPE
    PIPE
  • 50
    82678M TOOL KIT
    TOOL KIT
  • 51
    22-8M0121335 PLUG, WATER FLUSH (OPTIONAL)
    PLUG, WATER FLUSH (OPTIONAL)
  • 52
    47341A11 ROPE, EMERGENCY START
    ROPE, EMERGENCY START
