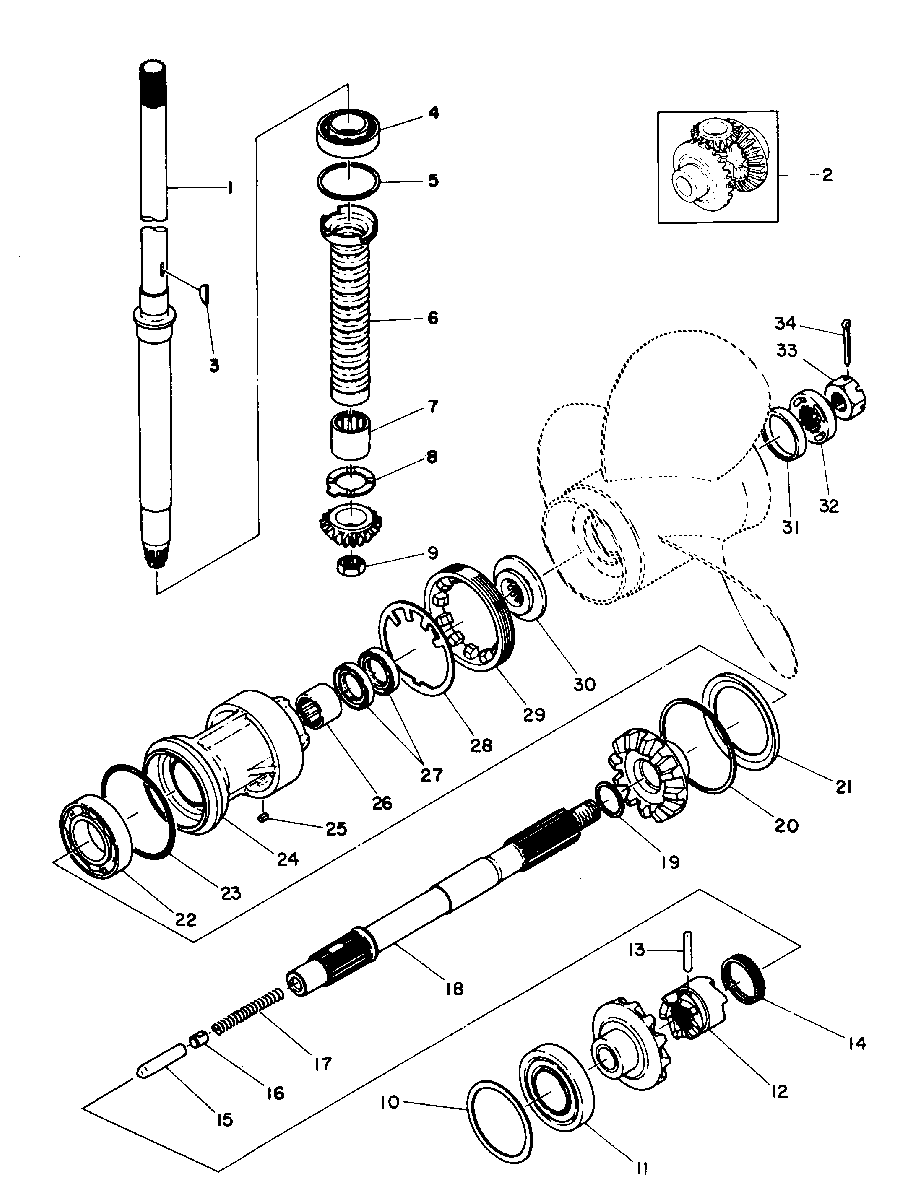

DRIVE TRAIN для Mariner - 55 663-02730 AND BELOW

  • №
    Артикул
    Название
  • 1
    45-81451M DRIVESHAFT (SHORT SHAFT)
    DRIVESHAFT (SHORT SHAFT)
  • 1
    45-81452M DRIVESHAFT (LONG SHAFT)
    DRIVESHAFT (LONG SHAFT)
  • 2
    43-81454M GEAR SET
    GEAR SET
  • 4
    31-82319T BEARING, DRIVESHAFT
    BEARING, DRIVESHAFT
  • 5
    15-81467M SHIM, DRIVESHAFT BEARING (.05MM)
    SHIM, DRIVESHAFT BEARING (.05MM)
  • 5
    15-81468M SHIM, DRIVVESHAFT BEARING (.08 MM)
    SHIM, DRIVVESHAFT BEARING (.08 MM)
  • 5
    15-19148002 SHIM, DRIVESHAFT BEARING (.12 MM)
    SHIM, DRIVESHAFT BEARING (.12 MM)
  • 5
    15-19148004 SHIM, DRIVESHAFT BEARING (.30 MM)
    SHIM, DRIVESHAFT BEARING (.30 MM)
  • 5
    15-19153M SHIM, DRIVESHAFT BEARING (,50MM)
    SHIM, DRIVESHAFT BEARING (,50MM)
  • 6
    23-81453M SLEEVE, DRIVESHAFT
    SLEEVE, DRIVESHAFT
  • 7
    31-82316T BEARING, NEEDLE-DRIVESHAFT
    BEARING, NEEDLE-DRIVESHAFT
  • 8
    12-81455M THRUST WAHSER, DRIVESHAFT
    THRUST WAHSER, DRIVESHAFT
  • 9
    11-81772M NUT, DRIVESHAFT
    NUT, DRIVESHAFT
  • 10
    15-81456M SHIM, FORWARD GEAR ADJUST (.05 MM)
    SHIM, FORWARD GEAR ADJUST (.05 MM)
  • 10
    15-81457M SHIM, FORWARD GEAR ADJUST (.08MM)
    SHIM, FORWARD GEAR ADJUST (.08MM)
  • 10
    15-19148003 SHIM, FORWARD GEAR ADJUST (.12 MM)
    SHIM, FORWARD GEAR ADJUST (.12 MM)
  • 10
    15-19158M SHIM, FORWARD GEAR ADJUST (.30MM)
    SHIM, FORWARD GEAR ADJUST (.30MM)
  • 10
    15-81460M SHIM, FORWARD GEAR ADJUST
    SHIM, FORWARD GEAR ADJUST
  • 11
    31-82320T BEARING, FORWARD GEAR
    BEARING, FORWARD GEAR
  • 12
    52-81473T CLUTCH DOG
    CLUTCH DOG
  • 13
    17-81903M CROSS PIN, CLUTCH
    CROSS PIN, CLUTCH
  • 14
    81474M RING, CROSS PIN
    RING, CROSS PIN
  • 15
    92643M PLUNGER, SHIFT
    PLUNGER, SHIFT
  • 16
    81475M SLIDE, SHIFT
    SLIDE, SHIFT
  • 17
    24-82091M SPRING, SHIFT
    SPRING, SHIFT
  • 18
    44-92644M SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 19
    12-81837M THRUST WASHER, REVERSE GEAR
    THRUST WASHER, REVERSE GEAR
  • 20
    15-81462M SHIM, REVERSE GEAR ADJUST (.05MM)
    SHIM, REVERSE GEAR ADJUST (.05MM)
  • 20
    15-81463M SHIM, REVERSE GEAR ADJUST (.08MM)
    SHIM, REVERSE GEAR ADJUST (.08MM)
  • 20
    15-19163002 SHIM,REVERSE GEAR ADJUST (.12MM)
    SHIM,REVERSE GEAR ADJUST (.12MM)
  • 20
    15-19163001 SHIM, REVERSE GEAR ADJUST (.30MM)
    SHIM, REVERSE GEAR ADJUST (.30MM)
  • 20
    15-19165M SHIM, REVERSE GEAR ADJUST (.50)
    SHIM, REVERSE GEAR ADJUST (.50)
  • 21
    12-81461M THRUST WASHER, REVERSE GEAR
    THRUST WASHER, REVERSE GEAR
  • 22
    12-81461M BALL BEARING, REVERSE GEAR
    BALL BEARING, REVERSE GEAR
  • 23
    25-82289M O-RING, BEARING HOUSING
    O-RING, BEARING HOUSING
  • 25
    28-81916M KEY, BEARING HOUING
    KEY, BEARING HOUING
  • 26
    31-82317M BEARING, NEEDLE - PROPELLER SHAFT
    BEARING, NEEDLE - PROPELLER SHAFT
  • 27
    26-854017 OIL SEAL, PROPELLER SHAFT
    OIL SEAL, PROPELLER SHAFT
  • 28
    14-81877M WAHSER, CLAW
    WAHSER, CLAW
  • 29
    11-8M0059031 NUT, CLAW WAHSER
    NUT, CLAW WAHSER
  • 30
    12-81477M THRUST WAHSER, FORWARD GEAR
    THRUST WAHSER, FORWARD GEAR
  • 31
    81479M CAP, THRUST PLATE
    CAP, THRUST PLATE
  • 32
    23-81478M SPACER, PROPELLER NUT
    SPACER, PROPELLER NUT
  • 33
    859935 NUT, PROPELLER
    NUT, PROPELLER
  • 34
    18-95295 PIN, PROPELLER NUT
    PIN, PROPELLER NUT
