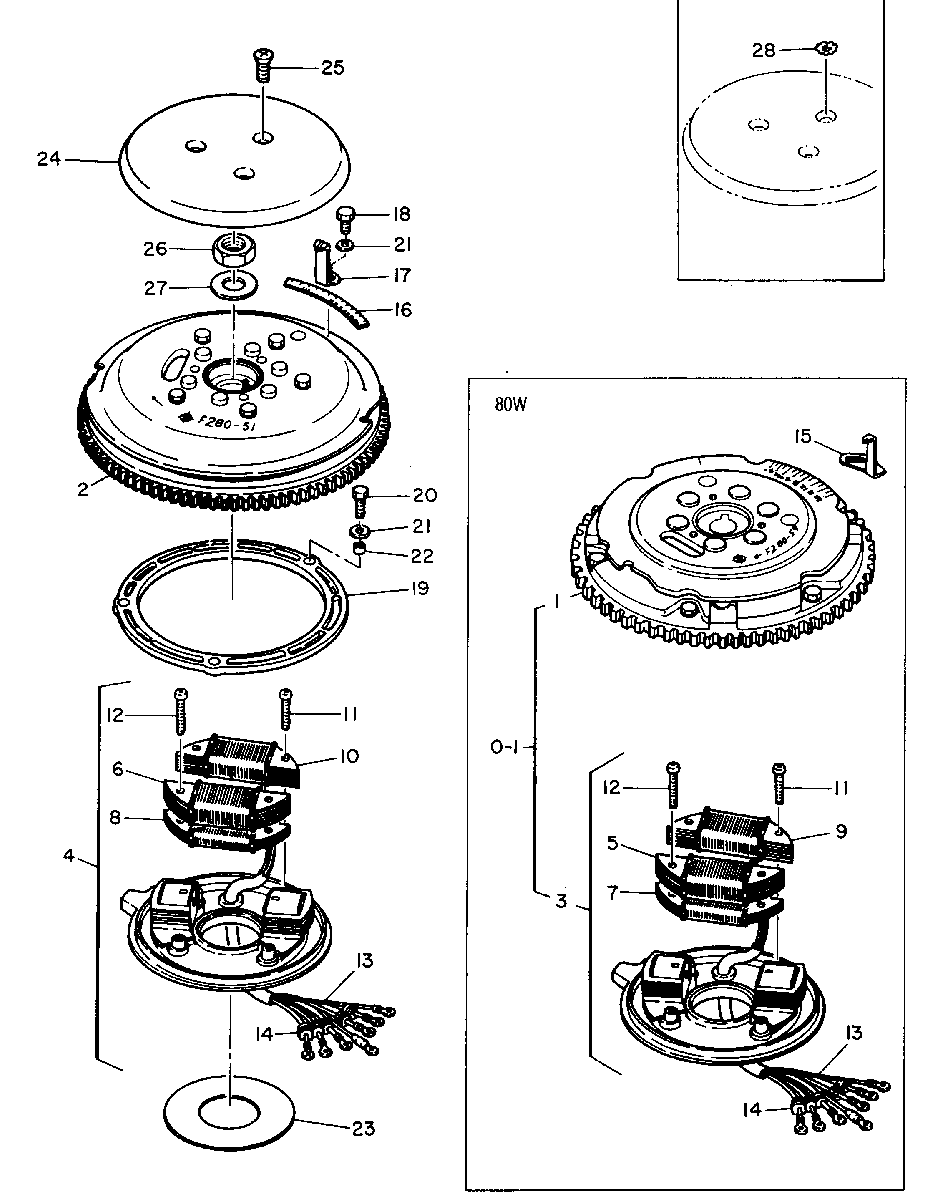

C.D.I. MAGNETO для Mariner - 55 663-02730 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    253-6845M I. MAGNETO ASS'Y (80 W )
    I. MAGNETO ASS'Y (80 W )
  • 1
    253-6845M FLYWHEEL, (80 W)
    FLYWHEEL, (80 W)
  • 2
    253-6847M FLYWHEEL, (40W)
    SERIAL 00000000-00002730
    FLYWHEEL, (40W)
    SERIAL 00000000-00002730
  • 3
    97100M MAGNETO BASE ASS'Y (80 W)
    MAGNETO BASE ASS'Y (80 W)
  • 4
    81545M MAGNETO BASE ASS'Y (40 W)
    SERIAL 00002730-09999999
    MAGNETO BASE ASS'Y (40 W)
    SERIAL 00002730-09999999
  • 5
    83036M COIL, CHARGE (80 W)
    COIL, CHARGE (80 W)
  • 6
    81546M COIL, CHARGE (40 W )
    SERIAL 00000000-00002730
    COIL, CHARGE (40 W )
    SERIAL 00000000-00002730
  • 7
    83037M COIL, CHARGE (80 W)
    COIL, CHARGE (80 W)
  • 8
    81548M COIL, TRIGGER (40 W)
    SERIAL 00000000-00002730
    COIL, TRIGGER (40 W)
    SERIAL 00000000-00002730
  • 9
    83038M COIL, LIGHTNING (80 W )
    COIL, LIGHTNING (80 W )
  • 10
    81486M COIL, LIGHTING (40 W)
    SERIAL 00000000-00002730
    COIL, LIGHTING (40 W)
    SERIAL 00000000-00002730
  • 11
    10-82522M SCREW, COIL ATTACHING
    SCREW, COIL ATTACHING
  • 12
    10-82568M SCREW
    SCREW
  • 13
    84-95685M WIRE, LEAD
    WIRE, LEAD
  • 14
    25-82059M GROMMET
    GROMMET
  • 15
    83031M POINTER, TIMING (WITH M-253-6935M)
    POINTER, TIMING (WITH M-253-6935M)
  • 16
    37-81488M MARK, TIMING (WITH M-253-6847M)
    MARK, TIMING (WITH M-253-6847M)
  • 17
    81487M POINTER, TIMING (WITH M-253-6847M)
    POINTER, TIMING (WITH M-253-6847M)
  • 18
    10-826957M BOLT,POINTER ATTACHING
    BOLT,POINTER ATTACHING
  • 19
    82678M RETAINER, BASE ASS'Y
    SERIAL 00002101-09999999
    RETAINER, BASE ASS'Y
    SERIAL 00002101-09999999
  • 19
    82678M RETAINER, BASE ASS'Y
    SERIAL 00000000-00002147
    RETAINER, BASE ASS'Y
    SERIAL 00000000-00002147
  • 20
    10-84058M BOLT, BASE ATTACHING
    BOLT, BASE ATTACHING
  • 21
    12-82214M WASHER
    WASHER
  • 22
    23-81971M COLLAR
    SERIAL 00002101-09999999
    COLLAR
    SERIAL 00002101-09999999
  • 23
    12-81343M WASHER,BASE ASS'Y
    WASHER,BASE ASS'Y
  • 24
    81489M COVER, FLYWHEEL
    COVER, FLYWHEEL
  • 25
    10-82569M SCREW
    SCREW
  • 26
    11-893789 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 27
    12-893762 WASHER, FLYWHEEL
    WASHER, FLYWHEEL
  • 28
    12-83227M WASHER, TOOTH
    SERIAL 00000000-00001955
    WASHER, TOOTH
    SERIAL 00000000-00001955
