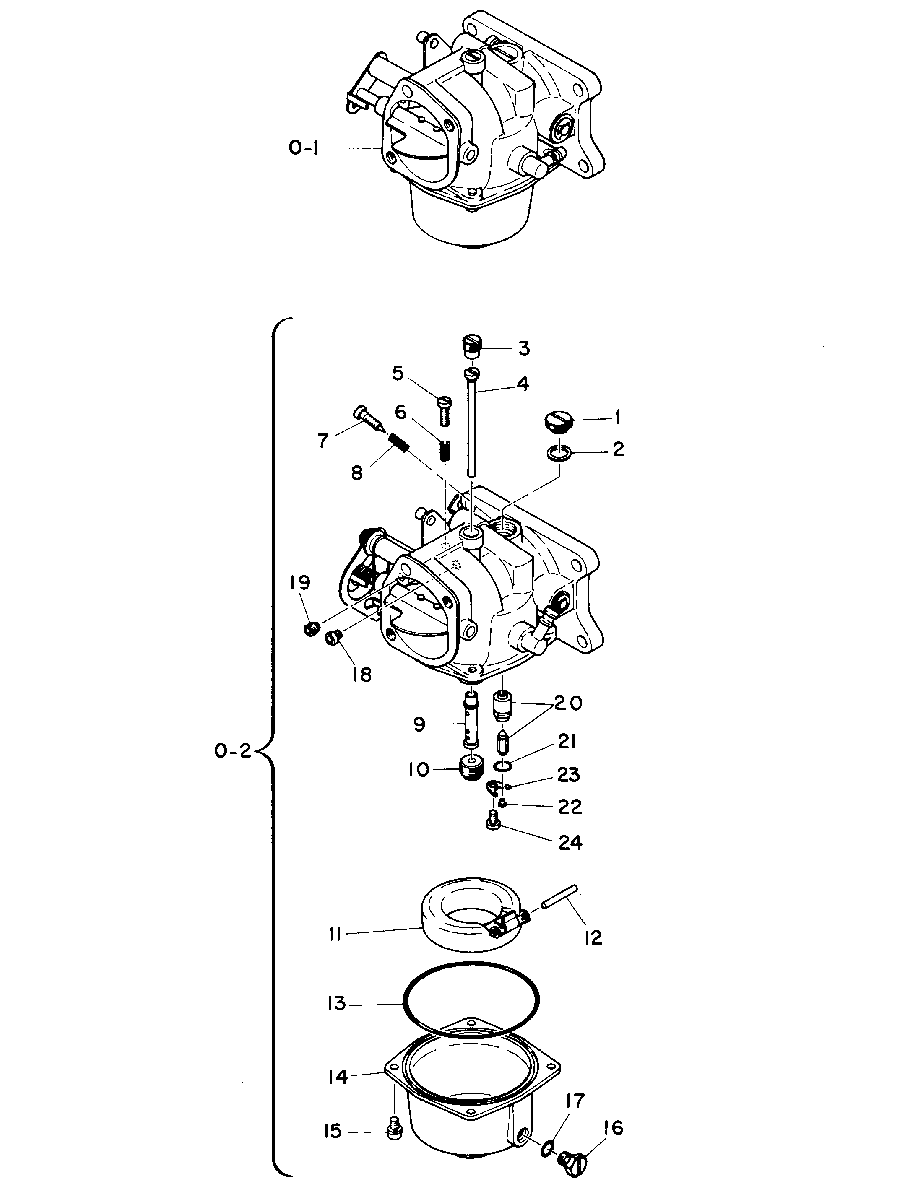

CARBURETOR для Mariner - 55 663-02730 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    1383-6962M CARBURETOR ASS'Y (UPPER)
    SERIAL 00000000-00001835
    CARBURETOR ASS'Y (UPPER)
    SERIAL 00000000-00001835
  • 0-1
    1383-6831M CARBURETOR ASS'Y (UPPER)
    SERIAL 00001836-09999999
    CARBURETOR ASS'Y (UPPER)
    SERIAL 00001836-09999999
  • 0-2
    1383-6963M CARBURETOR ASS'Y (LOWER)
    SERIAL 00000000-00001835
    CARBURETOR ASS'Y (LOWER)
    SERIAL 00000000-00001835
  • 0-2
    1383-6832M CARBURETOR ASS'Y (LOWER)
    SERIAL 00001836-09999999
    CARBURETOR ASS'Y (LOWER)
    SERIAL 00001836-09999999
  • 1
    10-81292M SCREW, PLUG
    SCREW, PLUG
  • 2
    12-81701M WASHER, PLATE
    WASHER, PLATE
  • 3
    10-81279M SCREW, PLUG
    SCREW, PLUG
  • 4
    81282M JET, PILOT (#92)
    JET, PILOT (#92)
  • 5
    10-81277M SCREW, THROTTLE
    SCREW, THROTTLE
  • 6
    24-82080M SPRING, COMPRESSION-THROTTLE SCREW
    SPRING, COMPRESSION-THROTTLE SCREW
  • 7
    10-81281M SCREW, IDLE SPEED
    SCREW, IDLE SPEED
  • 8
    24-82073M SPRING, COMPRESSION-IDLE SPEED SCREW
    SPRING, COMPRESSION-IDLE SPEED SCREW
  • 9
    81287M NOZZLE, MAIN
    NOZZLE, MAIN
  • 10
    81285M JET, MAIN (#190)
    SERIAL 00000000-00001835
    JET, MAIN (#190)
    SERIAL 00000000-00001835
  • 10
    81283M JET, MAIN (#180)
    SERIAL 00001836-09999999
    JET, MAIN (#180)
    SERIAL 00001836-09999999
  • 11
    97848M FLOAT
    FLOAT
  • 12
    17-81278M PIN, FLOAT
    PIN, FLOAT
  • 13
    25-82288M O-RING, FLOAT BOWL
    O-RING, FLOAT BOWL
  • 14
    81290M FLOAT, BOWL
    FLOAT, BOWL
  • 15
    10-81758M SCREW, WITH WASHER
    SCREW, WITH WASHER
  • 16
    10-81293M SCREW, BOWL DRAIN
    SCREW, BOWL DRAIN
  • 17
    25-81695M O-RING, DRAIN SCREW
    O-RING, DRAIN SCREW
  • 18
    81288M PILOT, AIR JET (#100)
    PILOT, AIR JET (#100)
  • 19
    81286M JET (#160)
    JET (#160)
  • 20
    82780M VALVE SEAT
    VALVE SEAT
  • 21
    25-82261M O-RING
    O-RING
  • 22
    17-92639M PIN, VALVE
    PIN, VALVE
  • 23
    80026M PLATE
    PLATE
  • 24
    10-82499M SCREW
    SCREW
