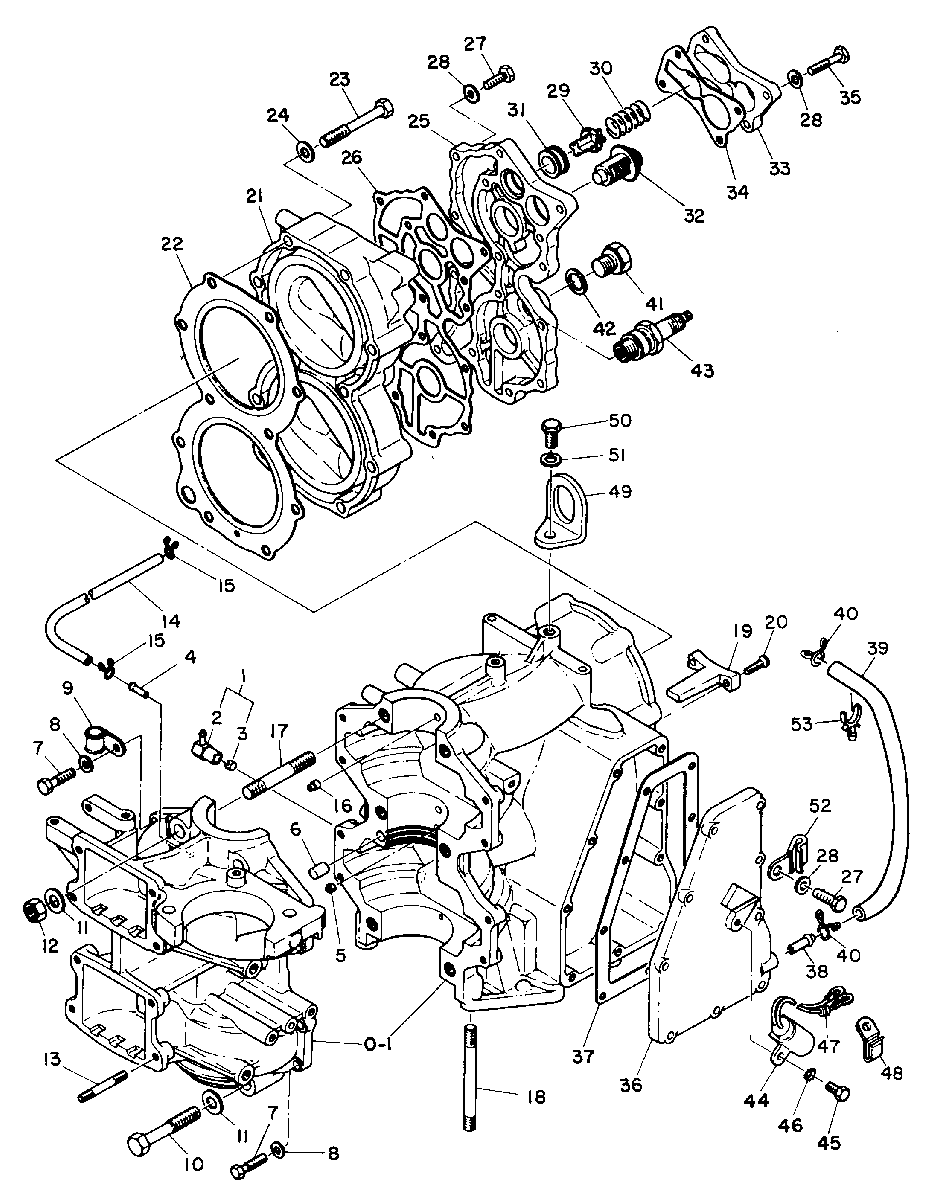

CRANKCASE AND CYLINDER HEAD для Mariner - 55 663-02730 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    629-8813M CRANKCASE ASS"Y
    CRANKCASE ASS"Y
  • 1
    21-80727M CHECK VAVLE ASS'Y
    CHECK VAVLE ASS'Y
  • 2
    22-82975M ELBOW, CHECK VALVE
    ELBOW, CHECK VALVE
  • 3
    21-80107M VALVE, CHECK
    VALVE, CHECK
  • 4
    22-80122M FITTING,CRANKCASE DRAIN
    FITTING,CRANKCASE DRAIN
  • 5
    21-80107M VALVE CHECK(E-02100 EL-33675)
    VALVE CHECK(E-02100 EL-33675)
  • 6
    17-82368M PIN, DOWEL CRANKCASE
    PIN, DOWEL CRANKCASE
  • 7
    10-82405M BOLT, CRANKCASE ATTACHING
    BOLT, CRANKCASE ATTACHING
  • 8
    12-81792M WASHER, CRANKCASE BOLT
    WASHER, CRANKCASE BOLT
  • 9
    54-82033M CLAMP, WIRE
    CLAMP, WIRE
  • 10
    10-82410M BOLT, CRANKCASE ATTACHING
    BOLT, CRANKCASE ATTACHING
  • 11
    12-81807M WASHER, CRANKCASE BOLT
    WASHER, CRANKCASE BOLT
  • 12
    11-82387M NUT, CRANKCASE STUD
    NUT, CRANKCASE STUD
  • 13
    16-81735M STUD, INTAKE MANIFOLD ATTACHING
    STUD, INTAKE MANIFOLD ATTACHING
  • 14
    32-811045M HOSE, DRAIN
    HOSE, DRAIN
  • 15
    54-82046M CLAMP, DRAIN HOSE
    CLAMP, DRAIN HOSE
  • 16
    17-81258M LOCK, BEARING
    LOCK, BEARING
  • 17
    16-81743M STUD, CRANKCASE ATTACHING
    STUD, CRANKCASE ATTACHING
  • 18
    16-81740M STUD, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00000000-00002147
    STUD, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00000000-00002147
  • 19
    81255M ANODE
    ANODE
  • 20
    10-82532M SCREW, ANODE ATTACHING
    SCREW, ANODE ATTACHING
  • 21
    968-7974M HEAD, CYLINDER
    HEAD, CYLINDER
  • 22
    27-19140 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 23
    10-82409M BOLT, CYLINDER HEAD ATTACHING
    BOLT, CYLINDER HEAD ATTACHING
  • 24
    12-80564M WASHER, CYLINDER HEAD BOLT
    WASHER, CYLINDER HEAD BOLT
  • 25
    81253M COVER, CYLINDER HEAD
    COVER, CYLINDER HEAD
  • 26
    27-81254M GASKET< CYLINFER HEAD COVER
    GASKET< CYLINFER HEAD COVER
  • 27
    10-84058M BOLT
    BOLT
  • 28
    12-82214M WASHER
    WASHER
  • 29
    81267M VALVE, PRESSURE CONTROL
    VALVE, PRESSURE CONTROL
  • 30
    24-82086M SPRING, VALVE COMPRESSION
    SPRING, VALVE COMPRESSION
  • 31
    25-82067M GROMMET, CONTROL VALVE
    GROMMET, CONTROL VALVE
  • 32
    99080M THERMOSTAT
    THERMOSTAT
  • 33
    81265M COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 34
    27-81266M GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 35
    10-83285M BOLT, THERMOSTAT COVER ATTACHING
    BOLT, THERMOSTAT COVER ATTACHING
  • 36
    81330M COVER,EXHAUST-OUTER
    COVER,EXHAUST-OUTER
  • 37
    27-81331M GASKEET, EXHAUST COVER
    GASKEET, EXHAUST COVER
  • 38
    22-94716M FITTING, EXHAUST COVER
    FITTING, EXHAUST COVER
  • 39
    32-81324M HOSE, EXHAUST COVER
    HOSE, EXHAUST COVER
  • 40
    54-82047M CLAMP< EXHAUST COVER HOSE
    CLAMP< EXHAUST COVER HOSE
  • 41
    22-81926M PLUG, COVER
    PLUG, COVER
  • 42
    27-81990M GASKET, COVER PLUG
    GASKET, COVER PLUG
  • 43
    33-8M0114741 PLUG,SPARKS B-8HS(NGK)
    PLUG,SPARKS B-8HS(NGK)
  • 0-2
    87-82985M STOP SWITCH KIT
    STOP SWITCH KIT
  • 44
    87-81526M >STOP SWITCH
    >STOP SWITCH
    Производитель Mercury-Mercruiser
  • 45
    10-82417M BOLT, STOP SWITCH BOLT
    BOLT, STOP SWITCH BOLT
  • 47
    25-82057M GROMMET
    GROMMET
  • 48
    54-82042M CLAMP
    CLAMP
  • 49
    41827M BRACKET LIFT
    BRACKET LIFT
  • 50
    10-84342M BOLT, LIFT BRACKET ATTACHING
    BOLT, LIFT BRACKET ATTACHING
  • 51
    13-82215M LOCK WASHER, BRACKET BOLT
    LOCK WASHER, BRACKET BOLT
  • 52
    54-82041M CALMP
    SERIAL 00000000-00002005
    CALMP
    SERIAL 00000000-00002005
  • 53
    54-82037M CLAMP
    SERIAL 00000000-00002120
    CLAMP
    SERIAL 00000000-00002120
