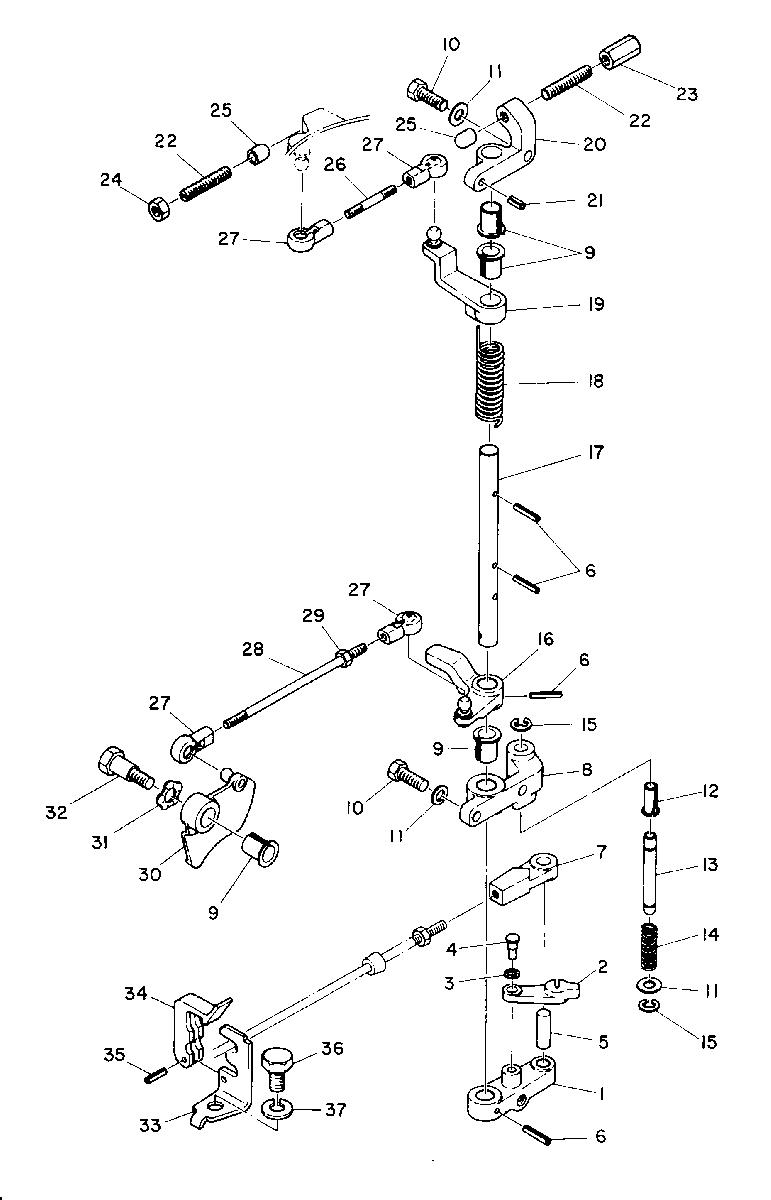

THROTTLE CONTROL для Mariner - 48 670-02640 AND BELOW

  • №
    Артикул
    Название
  • 1
    81345M LEVER, C.D.I. CONTROL
    LEVER, C.D.I. CONTROL
  • 2
    81341M STOPPER, FREE ACCEL - LINK
    STOPPER, FREE ACCEL - LINK
  • 3
    13-81866M WASHER, WAVE - PIVOT PIN
    WASHER, WAVE - PIVOT PIN
  • 4
    17-82976M PIN, LOCK LEVER PIVOT
    SERIAL 00002540-09999999
    PIN, LOCK LEVER PIVOT
    SERIAL 00002540-09999999
  • 4
    17-82976M PIN, LOCK LEVER PIVOT
    SERIAL 00002541-09999999
    PIN, LOCK LEVER PIVOT
    SERIAL 00002541-09999999
  • 5
    17-82367M PIN, DOWEL - CONTROL LEVER
    PIN, DOWEL - CONTROL LEVER
  • 6
    17-82149M PIN
    PIN
  • 7
    81480M CLEVIS, THROTTLE CABLE
    CLEVIS, THROTTLE CABLE
  • 8
    81350M BRACKET, SHAFT
    BRACKET, SHAFT
  • 9
    23-81946M BUSHING
    BUSHING
  • 10
    10-82423M BOLT
    BOLT
  • 11
    12-82214M WASHER
    WASHER
  • 12
    23-41311M BUSHING, SHAFT BRACKET
    BUSHING, SHAFT BRACKET
  • 13
    81403M STOP, SHAFT BRACKET
    STOP, SHAFT BRACKET
  • 14
    24-82074M SPRING,COMPRESSION - SHAFT BRACKET STOP
    SPRING,COMPRESSION - SHAFT BRACKET STOP
  • 15
    53-82330M CIRCLIP, SHAFT BRACKET STOP
    CIRCLIP, SHAFT BRACKET STOP
  • 16
    81346M LEVER, C.D.I. CONTROL.
    LEVER, C.D.I. CONTROL.
  • 17
    81347M SHAFT, LINK CONNECTING
    SHAFT, LINK CONNECTING
  • 18
    24-82113M SPRING, TORSION - LINK SHAFT
    SPRING, TORSION - LINK SHAFT
  • 19
    81344M LEVER, C.D.I. CONTROL
    LEVER, C.D.I. CONTROL
  • 20
    81349M BRACKET, SHAFT - UPPER
    BRACKET, SHAFT - UPPER
  • 21
    17-82154M PIN, UPPER SHAFT BRACKET
    PIN, UPPER SHAFT BRACKET
  • 22
    10-83707M BOLT, SET
    SERIAL 00002540-09999999
    BOLT, SET
    SERIAL 00002540-09999999
  • 22
    10-83050M SCREW
    SERIAL 00002541-09999999
    SCREW
    SERIAL 00002541-09999999
  • 23
    11-81764M NUT
    NUT
  • 24
    11-82390M NUT
    NUT
  • 25
    81415M CAP, SET BOLT
    CAP, SET BOLT
  • 26
    81348M ROD, CONTROL
    ROD, CONTROL
  • 27
    16715M CLEVIS
    CLEVIS
  • 28
    81333M ROD, LINK
    ROD, LINK
  • 29
    11-82388M NUT, CLEVIS LOCK
    NUT, CLEVIS LOCK
  • 30
    81334M CAM
    CAM
  • 31
    13-81868M WASHER, WAVE - CAM
    WASHER, WAVE - CAM
  • 32
    10-81713M BOLT, CAM ATTACHING
    BOLT, CAM ATTACHING
  • 33
    81483M BRACKET, REMOTE CONTROL
    BRACKET, REMOTE CONTROL
  • 34
    81484M CLAMP, CABLE
    CLAMP, CABLE
  • 35
    17-82146M PIN, CABLE CLAMP
    PIN, CABLE CLAMP
  • 36
    10-82437M BOLT, CONTROL BRACKET ATTACHING
    BOLT, CONTROL BRACKET ATTACHING
  • 37
    13-82215M WASHER, CONTROL BRACKET BOLT
    WASHER, CONTROL BRACKET BOLT
