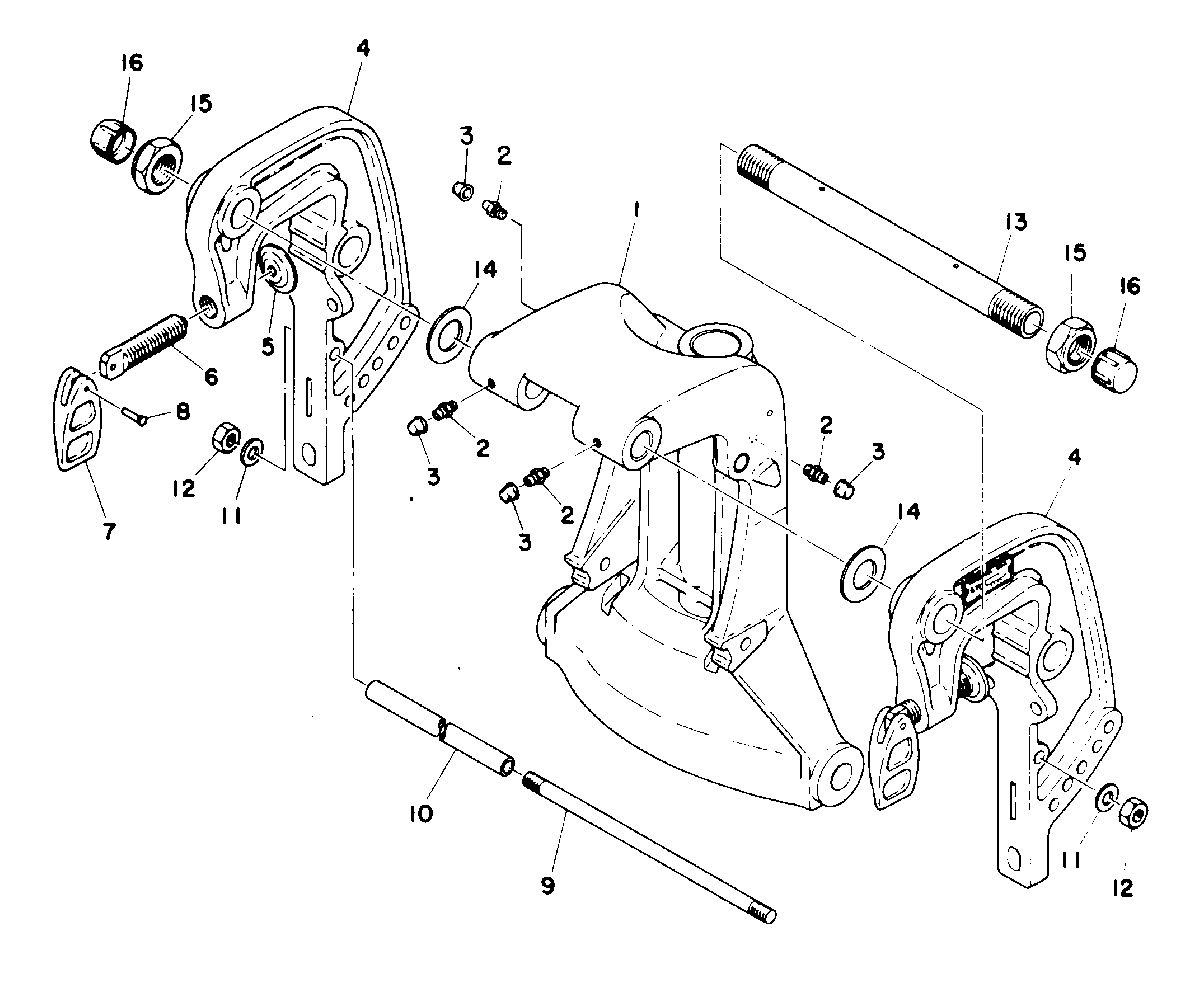

CLAMP AND SWIVEL BRACKET для Mariner - 48 670-02640 AND BELOW

  • №
    Артикул
    Название
  • 1
    1485-6840M SWIVEL BRACKET (SHORT SHAFT)
    SWIVEL BRACKET (SHORT SHAFT)
  • 1
    1485-6841M SWIVEL BRACKET (LONG SHAFT)
    SWIVEL BRACKET (LONG SHAFT)
  • 2
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 3
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 4
    1484-6839M CLAMP BRACKET
    CLAMP BRACKET
  • 5
    12-80638M PAD, TRANSOM CLAMP SCREW
    PAD, TRANSOM CLAMP SCREW
  • 6
    10-92649M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 7
    11868M HANDLE, TRANSOM CLAMP SCREW
    HANDLE, TRANSOM CLAMP SCREW
  • 8
    17-81889M PIN, TRANSOM CLAMP SCREW
    PIN, TRANSOM CLAMP SCREW
  • 9
    16-81383M STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    23-81981M SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 11
    12-82220M WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
  • 12
    11-82395M NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 13
    10-41312M STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 14
    12-81836M WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
  • 15
    11-879172252 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 16
    811914M CAP, CLAMP BRACKET STUD
    CAP, CLAMP BRACKET STUD
