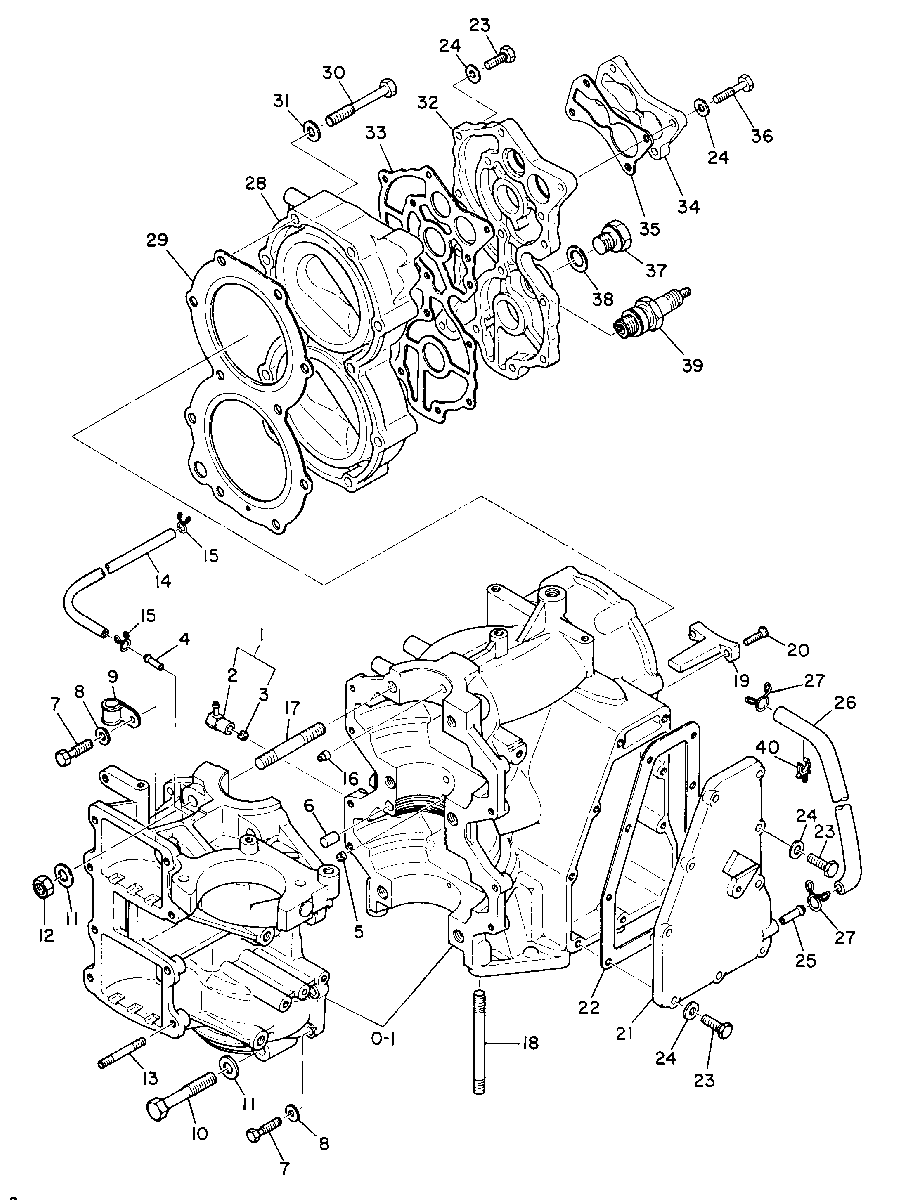

CRANKCASE AND CYLINDER HEAD для Mariner - 48 670-02640 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    870-8913M CRANKCASE AND CYLINDER ASS'Y
    CRANKCASE AND CYLINDER ASS'Y
  • 1
    21-80727M CHECK VALVE ASS'Y
    CHECK VALVE ASS'Y
  • 2
    22-82975M NIPPLE, HOSE
    NIPPLE, HOSE
  • 3
    21-80107M VALVE, CHECK
    VALVE, CHECK
  • 4
    22-80122M FITTING, CRANKCASE DRAIN
    FITTING, CRANKCASE DRAIN
  • 5
    21-80107M CHECK VALVE, CRANKCASE
    SERIAL 00001690-09999999
    CHECK VALVE, CRANKCASE
    SERIAL 00001690-09999999
  • 6
    17-82368M PIN, DOWEL - CRANKCASE
    PIN, DOWEL - CRANKCASE
  • 7
    10-82405M BOLT, CRANKCASE ATTACHING
    BOLT, CRANKCASE ATTACHING
  • 8
    12-81792M WASHER, CRANKCASE BOLT
    WASHER, CRANKCASE BOLT
  • 9
    54-82033M CLAMP, WIRE
    CLAMP, WIRE
  • 10
    10-82410M BOLT, CRANKCASE ATTACHING
    BOLT, CRANKCASE ATTACHING
  • 11
    12-81807M WASHER, CRANKCASE BOLT
    WASHER, CRANKCASE BOLT
  • 12
    11-82387M NUT, CRANKCASE STUD
    NUT, CRANKCASE STUD
  • 13
    16-81735M STUD, INTAKE MANIFOLD ATTACHING
    STUD, INTAKE MANIFOLD ATTACHING
  • 14
    32-811045M HOSE, DRAIN
    HOSE, DRAIN
  • 15
    54-82046M CLAMP, DRAIN HOSE
    CLAMP, DRAIN HOSE
  • 16
    17-81258M LOCK, BEARING
    LOCK, BEARING
  • 17
    16-81743M STUD, CRANKCASE ATTACHING
    STUD, CRANKCASE ATTACHING
  • 18
    16-81740M STUD, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00001790-09999999
    STUD, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00001790-09999999
  • 19
    81255M ANODE
    ANODE
  • 20
    10-82532M SCREW, ANODE ATTACHING
    SCREW, ANODE ATTACHING
  • 21
    81330M COVER, EXHAUST - OUTER
    COVER, EXHAUST - OUTER
  • 22
    27-81331M GASKET, EXHAUST COVER
    GASKET, EXHAUST COVER
  • 23
    10-84058M BOLT
    BOLT
  • 24
    12-82214M WASHER
    WASHER
  • 25
    22-94716M FITTING, EXHAUST COVER
    FITTING, EXHAUST COVER
  • 26
    32-81324M HOSE, EXHAUST COVER
    HOSE, EXHAUST COVER
  • 27
    54-82047M CLAMP, EXHAUST COVER HOSE
    CLAMP, EXHAUST COVER HOSE
  • 28
    968-7974M HEAD, CYLINDER
    HEAD, CYLINDER
  • 29
    27-19140 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 30
    10-82409M BOLT, CYLINDER HEAD ATTACHING
    BOLT, CYLINDER HEAD ATTACHING
  • 31
    12-80564M WASHER, CYLINDER HEAD BOLT
    WASHER, CYLINDER HEAD BOLT
  • 32
    81253M COVER, CYLINDER HEAD
    COVER, CYLINDER HEAD
  • 33
    27-81254M GASKET, CYLINDER HEAD COVER
    GASKET, CYLINDER HEAD COVER
  • 34
    81265M COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 35
    27-81266M GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 36
    10-83285M BOLT, THERMOSTAT COVER ATTACHING
    BOLT, THERMOSTAT COVER ATTACHING
  • 37
    22-81926M PLUG, COVER
    PLUG, COVER
  • 38
    27-81990M GASKET, COVER PLUG
    GASKET, COVER PLUG
  • 39
    33-8M0114739 SPARK PLUG B-7HS-(NGK)
    SPARK PLUG B-7HS-(NGK)
  • 40
    54-82037M CLIP, EXHAUST COVER HOSE
    SERIAL 00001690-09999999
    CLIP, EXHAUST COVER HOSE
    SERIAL 00001690-09999999
