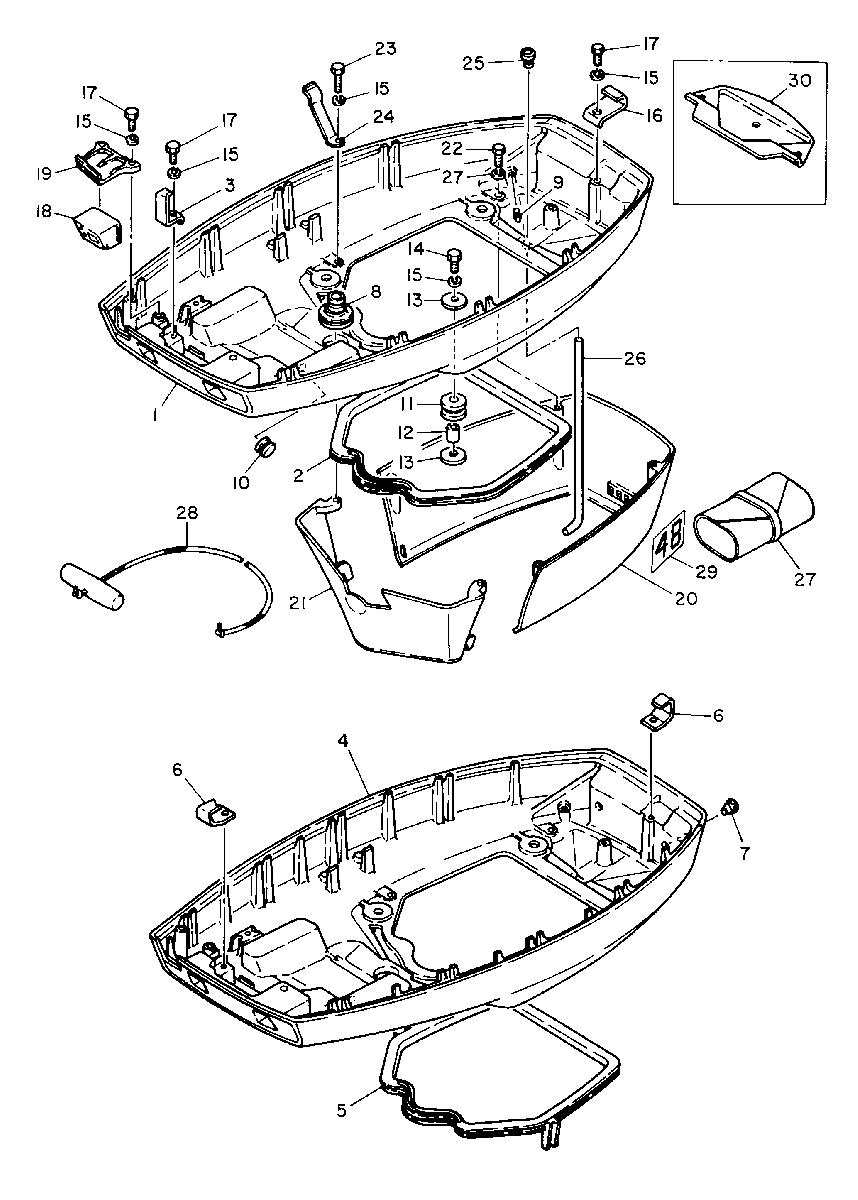

BOTTOM COWLING для Mariner - 48 670-02640 AND BELOW

  • №
    Артикул
    Название
  • 1
    2168-6838M COWLING, BOTTOM
    SERIAL 00002540-09999999
    COWLING, BOTTOM
    SERIAL 00002540-09999999
  • 2
    27-83044M SEAL, BOTTOM COWL TO APRON
    SERIAL 00002540-09999999
    SEAL, BOTTOM COWL TO APRON
    SERIAL 00002540-09999999
  • 3
    81375M HOOK, COWL CLAMP - FRONT
    SERIAL 00002540-09999999
    HOOK, COWL CLAMP - FRONT
    SERIAL 00002540-09999999
  • 4
    2168-7980M COWLING, BOTTOM
    SERIAL 00002541-09999999
    COWLING, BOTTOM
    SERIAL 00002541-09999999
  • 5
    27-83044M SEAL, BOTTOM COWL TO APRON
    SERIAL 00002541-09999999
    SEAL, BOTTOM COWL TO APRON
    SERIAL 00002541-09999999
  • 6
    83045M STAY
    SERIAL 00002541-09999999
    STAY
    SERIAL 00002541-09999999
  • 7
    25-83142M GROMMET
    SERIAL 00002541-09999999
    GROMMET
    SERIAL 00002541-09999999
  • 8
    25-81369M GROMMET
    GROMMET
  • 9
    22-81326M FITTING
    FITTING
  • 10
    25-82061M GROMMET
    GROMMET
  • 11
    25-82065M GROMMET, APRON BOLT
    GROMMET, APRON BOLT
  • 12
    23-81968M COLLAR, APRON BOLT
    COLLAR, APRON BOLT
  • 13
    12-81796M WASHER, APRON BOLT
    WASHER, APRON BOLT
  • 14
    10-83285M BOLT, COWLING TO DRIVESHAFT HOUSING
    BOLT, COWLING TO DRIVESHAFT HOUSING
  • 15
    13-82212M LOCKWASHER, APRON BOLT
    LOCKWASHER, APRON BOLT
  • 16
    81377M HOOK, COWL-REAR
    SERIAL 00002540-09999999
    HOOK, COWL-REAR
    SERIAL 00002540-09999999
  • 17
    10-826957M BOLT
    BOLT
  • 18
    81371M BUMPER. COWL
    BUMPER. COWL
  • 19
    81372M RETAINER, COWL BUMPER
    SERIAL 00002540-09999999
    RETAINER, COWL BUMPER
    SERIAL 00002540-09999999
  • 19
    83153M RETAINER, COWL BUMPER
    SERIAL 00002541-09999999
    RETAINER, COWL BUMPER
    SERIAL 00002541-09999999
  • 20
    95664M APRON, COWL - FRONT
    APRON, COWL - FRONT
  • 21
    95665M APRON, COWL - REAR
    APRON, COWL - REAR
  • 22
    10-82423M BOLT, APRON ATTACHING
    BOLT, APRON ATTACHING
  • 23
    10-82405M BOLT, APRON ATTACHING
    BOLT, APRON ATTACHING
  • 24
    54-82983M CLAMP
    CLAMP
  • 25
    23-81376M FASTENER
    FASTENER
  • 26
    32-81324M ROD
    ROD
  • 27
    91-803581 TOOL KIT
    TOOL KIT
  • 28
    47341A11 STARTER ROPE
    STARTER ROPE
  • 29
    37-83053M DECAL, SIDE
    SERIAL 00002541-09999999
    DECAL, SIDE
    SERIAL 00002541-09999999
  • 30
    83047M COVER, BOTTOM
    SERIAL 00002541-09999999
    COVER, BOTTOM
    SERIAL 00002541-09999999
