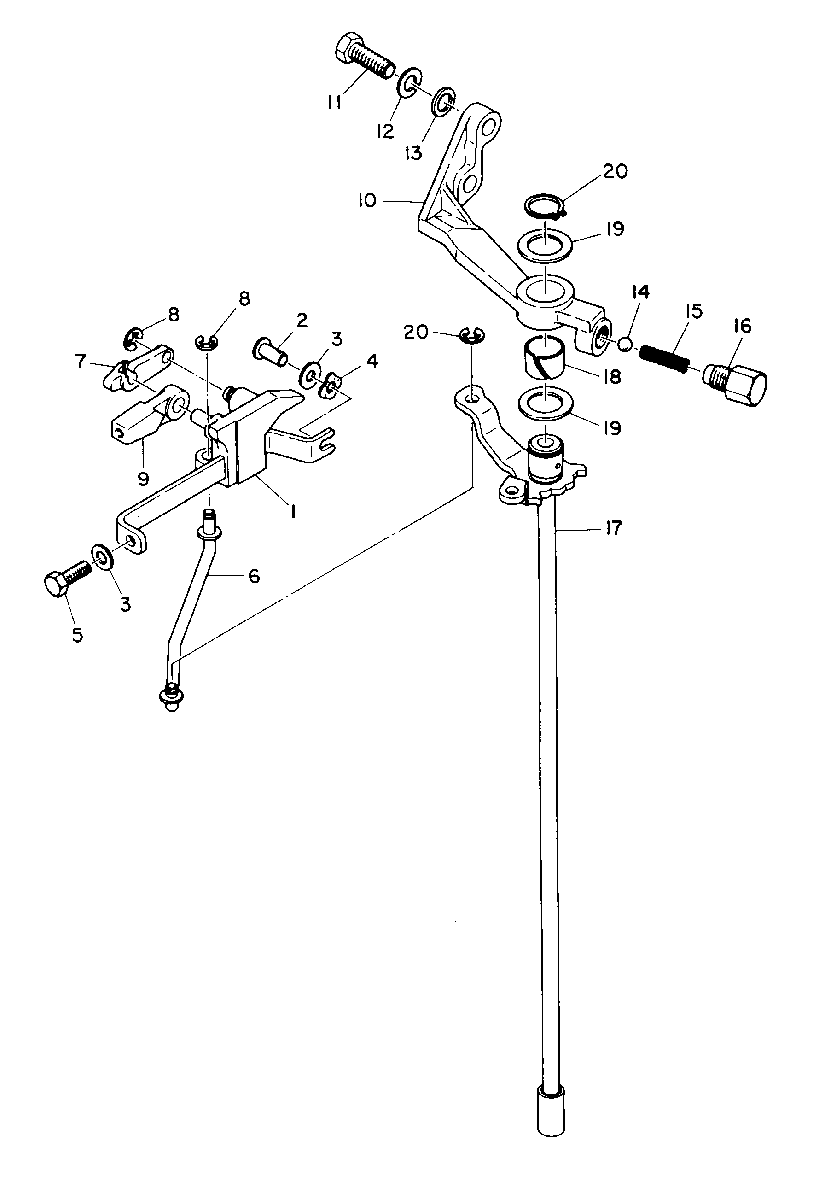

GEAR SHIFT LINKAGE для Mariner - 48 670-02640 AND BELOW

  • №
    Артикул
    Название
  • 1
    98919M BRACKET, SHIFT
    BRACKET, SHIFT
  • 2
    17-82137M PIN, CLEVIS - SHIFT BRACKET
    PIN, CLEVIS - SHIFT BRACKET
  • 3
    12-82214M WASHER
    WASHER
  • 4
    13-81866M WASHER, WAVE - CLEVIS PIN
    WASHER, WAVE - CLEVIS PIN
  • 5
    10-82423M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 6
    81407M LEVER, SHIFT ROD
    LEVER, SHIFT ROD
  • 7
    92657M RETAINER, CLEVIS
    RETAINER, CLEVIS
  • 8
    53-82330M CIRCLIP
    CIRCLIP
  • 9
    81480M CLEVIS, SHIFT CONTROL CABLE
    CLEVIS, SHIFT CONTROL CABLE
  • 10
    82556M BRACKET, SHIFT ROD
    BRACKET, SHIFT ROD
  • 11
    10-82441M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 12
    13-82215M LOCKWASHR, BRACKET BOLT
    LOCKWASHR, BRACKET BOLT
  • 13
    12-82217M WASHER
    WASHER
  • 14
    82346M BALL, DETENT
    BALL, DETENT
  • 15
    24-82081M SPRING, DETENT
    SPRING, DETENT
  • 16
    23-80635M RETAINER, COMPRESSION SPRING
    RETAINER, COMPRESSION SPRING
  • 17
    81670M SHIFT RODE ASS'Y, UPPER - SHORT SHAFT
    SHIFT RODE ASS'Y, UPPER - SHORT SHAFT
  • 17
    81671M SHIFT ROD ASS'Y, UPPER - LONG SHAFT
    SHIFT ROD ASS'Y, UPPER - LONG SHAFT
  • 18
    23-81953M BUSHING, SHIFT ROD
    BUSHING, SHIFT ROD
  • 19
    12-81858M SPACER, SHIFT ROD
    SPACER, SHIFT ROD
  • 20
    53-19259M CIRCLIP, UPPER SHIFT ROD
    CIRCLIP, UPPER SHIFT ROD
