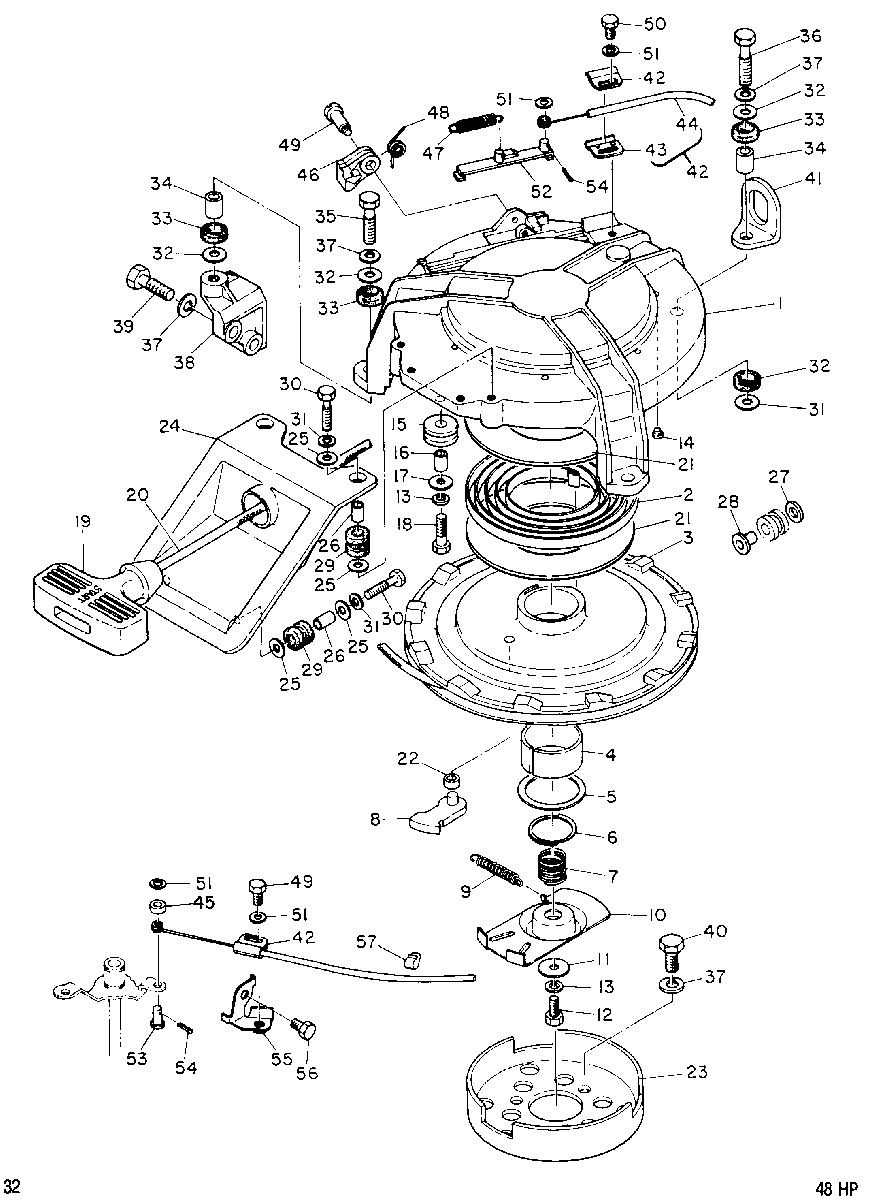

RECOIL STARTER для Mariner - 48 670-02640 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    84448M STARTER ASS'Y
    STARTER ASS'Y
  • 1
    84449M HOUSING, STARTER
    HOUSING, STARTER
  • 2
    24-81295M SPRING, STARTER
    SPRING, STARTER
  • 3
    50-81296M STARTER PULLEY
    STARTER PULLEY
  • 4
    23-81309M COLLAR, ENGAGEMENT CAM
    COLLAR, ENGAGEMENT CAM
  • 5
    12-81301M WASHER, ENGAGEMENT CAM
    WASHER, ENGAGEMENT CAM
  • 6
    53-81305M CIRCLIP, ENGAGEMENT CAM
    CIRCLIP, ENGAGEMENT CAM
  • 7
    24-41294M SPRING, ENGAGEMENT CAM
    SPRING, ENGAGEMENT CAM
  • 8
    19136M PAWL, STARTER
    PAWL, STARTER
  • 9
    24-81297M SPRING, ENGAGEMENT CAM
    SPRING, ENGAGEMENT CAM
  • 10
    41295M CAM, PAWL ENGAGEMENT
    CAM, PAWL ENGAGEMENT
  • 11
    12-81299M WASHER, ENGAGEMENT CAM BOLT
    WASHER, ENGAGEMENT CAM BOLT
  • 12
    10-826957M BOLT
    BOLT
  • 13
    13-82212M LOCKWASHER
    LOCKWASHER
  • 14
    19-80604M PLUG, STARTER HOUSING
    PLUG, STARTER HOUSING
  • 15
    81307M ROLLER, STARTER ROPE
    ROLLER, STARTER ROPE
  • 16
    23-11705M BUSHING, ROLLER
    BUSHING, ROLLER
  • 17
    13-11706M WASHER
    WASHER
  • 18
    10-83141M BOLT
    BOLT
  • 19
    814491A1 HANDLE, STARTER
    HANDLE, STARTER
  • 20
    50-12066Q10 STARTER ROPE
    STARTER ROPE
  • 21
    12-83151M WASHER
    WASHER
  • 22
    23-83150M BUSHING
    BUSHING
  • 23
    81300M DRIVE CUP, PAWL
    DRIVE CUP, PAWL
  • 24
    81310M GUIDE, STARTER ROPE
    GUIDE, STARTER ROPE
  • 25
    12-82213M WASHER
    SERIAL 00002540-09999999
    WASHER
    SERIAL 00002540-09999999
  • 26
    23-81967M COLLAR, GUIDE MOUNT
    SERIAL 00002540-09999999
    COLLAR, GUIDE MOUNT
    SERIAL 00002540-09999999
  • 27
    12-82213M WASHER
    SERIAL 00002541-09999999
    WASHER
    SERIAL 00002541-09999999
  • 28
    23-804344003 BUSHING
    SERIAL 00002541-09999999
    BUSHING
    SERIAL 00002541-09999999
  • 29
    81523M MOUNT, GUIDE
    MOUNT, GUIDE
  • 30
    10-83285M BOLT, ROPE GUIDE ATTACHING
    BOLT, ROPE GUIDE ATTACHING
  • 31
    13-82212M WASHER
    WASHER
  • 32
    13-81799M WASHER, LIFT BRACKET BOLT
    WASHER, LIFT BRACKET BOLT
  • 33
    25-81937M GROMMET, LIFT BRACKET
    GROMMET, LIFT BRACKET
  • 34
    23-81978M COLLAR, LIFT BRACKET
    COLLAR, LIFT BRACKET
  • 35
    10-82442M BOLT, STARTER HOUSING ATTACHING
    BOLT, STARTER HOUSING ATTACHING
  • 36
    10-84236M BOLT, LIFT BRACKET ATTACHING
    BOLT, LIFT BRACKET ATTACHING
  • 37
    13-82215M LOCKWASHER
    LOCKWASHER
  • 38
    81313M BRACKET, STARTER HOUSING
    BRACKET, STARTER HOUSING
  • 39
    10-82441M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 40
    10-82439M BOLT, DRIVE CUP ATTACHING
    BOLT, DRIVE CUP ATTACHING
  • 41
    41827M HANGER, ENGINE
    HANGER, ENGINE
