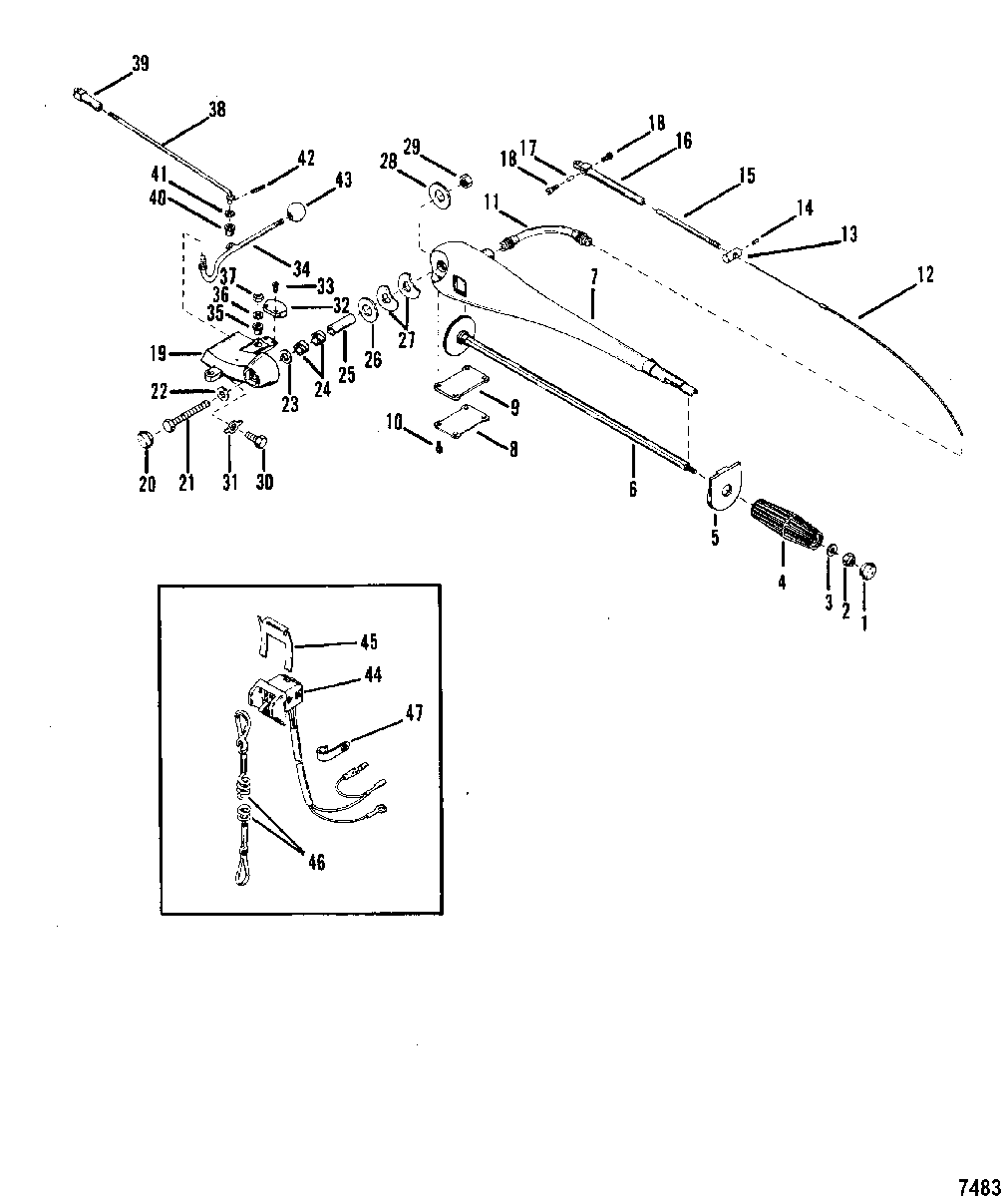

Steering Handle Assembly для Mariner - 45 (4 CYL.) 0A719281 & Up

  • №
    Артикул
    Название
  • 1
    48416T CAP, Steering Handle Grip
    CAP, Steering Handle Grip
  • 2
    11-826709109 NUT, (.250-28), Steering Handle Arm
    NUT, (.250-28), Steering Handle Arm
  • 3
    12-69056 WASHER, (.255 x .625 x .0312), Steering Handle Arm
    WASHER, (.255 x .625 x .0312), Steering Handle Arm
  • 4
    58192A1 GRIP, Steering Handle Arm
    GRIP, Steering Handle Arm
  • 5
    48414 HOUSING, Drive Wheel
    HOUSING, Drive Wheel
  • 6
    48516A1 DRIVE WHEEL/ROD ASSEMBLY
    DRIVE WHEEL/ROD ASSEMBLY
  • 7
    48405A2 ARM ASSEMBLY
    ARM ASSEMBLY
  • 8
    48519 PLATE, Cover - Drive Wheel
    PLATE, Cover - Drive Wheel
  • 9
    27-48518 GASKET, Cover Plate
    GASKET, Cover Plate
  • 10
    10-72169 SCREW, (#10-24 x .50), Drive Wheel Cover Plate
    SCREW, (#10-24 x .50), Drive Wheel Cover Plate
  • 11
    785511 CONDUIT, Cable
    CONDUIT, Cable
  • 12
    48520 CABLE, Throttle
    CABLE, Throttle
  • 13
    89613 CONNECTOR, Control Linkage
    CONNECTOR, Control Linkage
  • 14
    10-824081 SCREW, Set - Throttle Cable Guide Tube
    SCREW, Set - Throttle Cable Guide Tube
  • 15
    8M0026078 GUIDE TUBE, Throttle Cable Guide
    GUIDE TUBE, Throttle Cable Guide
  • 16
    43433 GUIDE, Throttle Cable
    GUIDE, Throttle Cable
  • 17
    20007 ANCHOR, Throttle Cable
    ANCHOR, Throttle Cable
  • 18
    10-20518 SET SCREW, (#8-32), Throttle Cable Anchor
    SET SCREW, (#8-32), Throttle Cable Anchor
  • 19
    48404T8 BRACKET, Handle
    BRACKET, Handle
  • 20
    48416T CAP, Handle Bracket
    CAP, Handle Bracket
  • 21
    10-823597 SCREW, Handle Bracket
    SCREW, Handle Bracket
  • 22
    12-48477 WASHER, Handle Bracket
    (.505 I.D.)
    WASHER, Handle Bracket
    (.505 I.D.)
  • 23
    12-48526 WASHER, Nylon - Handle Bracket
    (.630 I.D.)
    WASHER, Nylon - Handle Bracket
    (.630 I.D.)
  • 24
    23-28919 BUSHING, Nylon - Handle Bracket
    (0.625 Inch I.D.)
    BUSHING, Nylon - Handle Bracket
    (0.625 Inch I.D.)
  • 25
    23-48525 SPACER, Handle Bracket
    SPACER, Handle Bracket
  • 26
    12-38000 WASHER, Nylon - Handle Bracket
    (1.078 Inch O.D.)
    WASHER, Nylon - Handle Bracket
    (1.078 Inch O.D.)
  • 27
    13-48478 WAVE WASHER, Handle Bracket
    WAVE WASHER, Handle Bracket
  • 28
    12-49636 WASHER, Nylon - Handle Bracket
    (1.75 Inch O.D.)
    WASHER, Nylon - Handle Bracket
    (1.75 Inch O.D.)
  • 29
    11-82671317 NUT, (.500-20), Handle Bracket Screw
    NUT, (.500-20), Handle Bracket Screw
  • 30
    10-35786 SCREW, (.375-24 x 1.00), Bracket to Engine
    SCREW, (.375-24 x 1.00), Bracket to Engine
  • 31
    14-43589 TAB WASHER, Bracket Screw
    TAB WASHER, Bracket Screw
  • 32
    78812A1 DETENT, Shift Lever
    DETENT, Shift Lever
  • 33
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, Shift Lever Detent
    SCREW, (#10-16 x .625) Stainless Steel, Shift Lever Detent
  • 34
    485681 SHIFT LEVVER
    SHIFT LEVVER
  • 35
    23-48237 BUSHING, Nylong - Shift Lever
    (0.375 Inch I.D.)
    BUSHING, Nylong - Shift Lever
    (0.375 Inch I.D.)
  • 36
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, Shift Lever
    WASHER, (.406 x .734 x .063) Stainless Steel, Shift Lever
  • 37
    11-8M0042636 NUT, (.375-24), Shift Lever
    NUT, (.375-24), Shift Lever
  • 38
    8128061 SHIFT ROD
    SHIFT ROD
  • 39
    48419T ROD END, Shift Rod
    ROD END, Shift Rod
  • 40
    23-48475 BUSHING, Nylon - Shift Rod
    (0.25 Inch I.D.)
    BUSHING, Nylon - Shift Rod
    (0.25 Inch I.D.)
  • 41
    12-35950 WASHER, (.273 x .437 x .031) Stainless Steel, Shift Rod
    WASHER, (.273 x .437 x .031) Stainless Steel, Shift Rod
  • 42
    18-25191 COTTER PIN, Shift Rod
    COTTER PIN, Shift Rod
  • 43
    98530 KNOB, Shift Lever
    KNOB, Shift Lever
  • 44
    87-11083A11 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 45
    8M0032846 RETANER, Stop Switch
    RETANER, Stop Switch
  • 46
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 47
    54-648552 CLAMP, Stop Switch
    CLAMP, Stop Switch
  • --
    52148A1 CO-PILOT KIT
    CO-PILOT KIT
