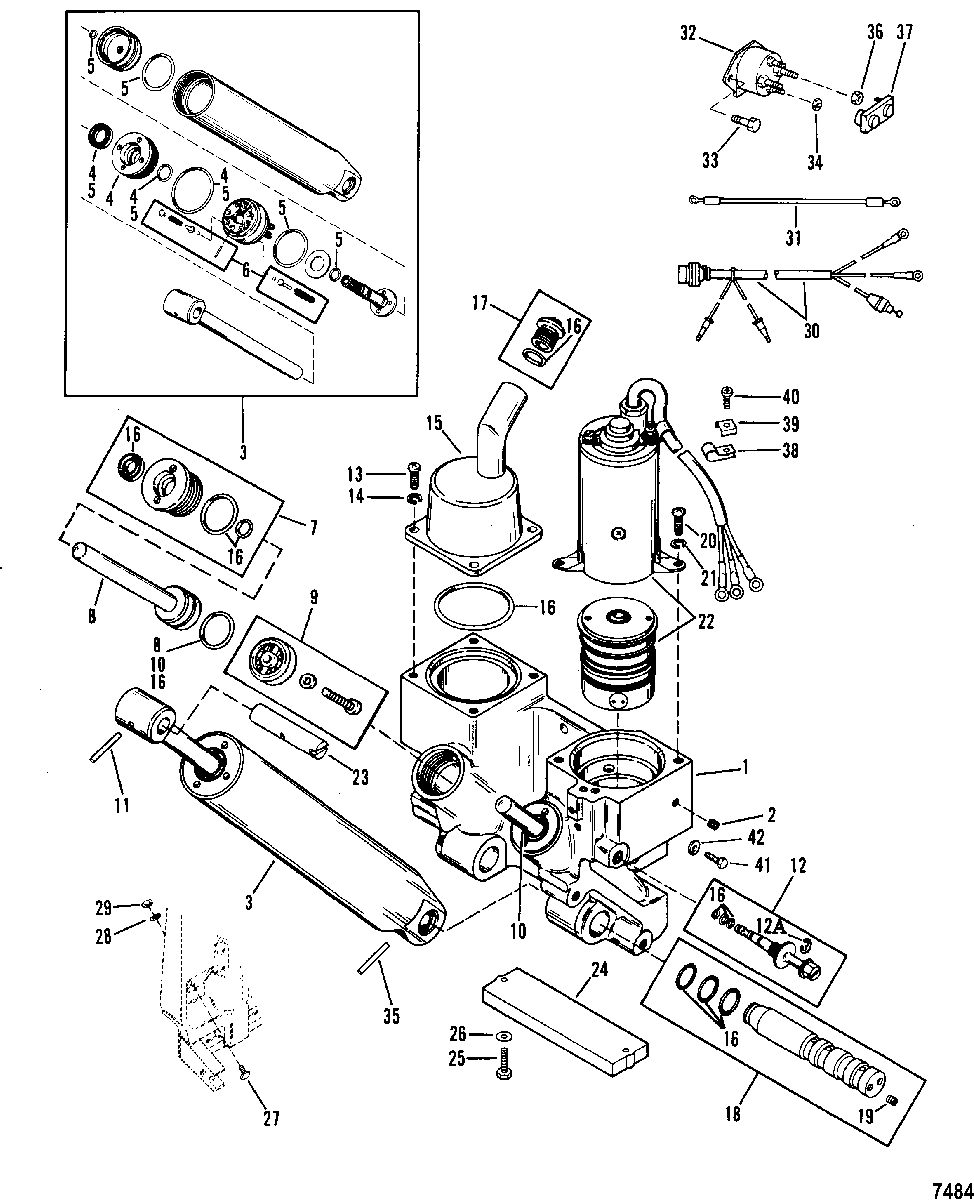

Power Trim Components для Mariner - 45 (4 CYL.) 0A719281 & Up

  • №
    Артикул
    Название
  • 1
    99659A21 MANIFOLD ASSEMBLY
    (Black)
    MANIFOLD ASSEMBLY
    (Black)
  • 1
    99659A22 MANIFOLD ASSEMBLY
    (Gray)
    MANIFOLD ASSEMBLY
    (Gray)
  • 2
    22-56800 PIPE PLUG, Manifold
    PIPE PLUG, Manifold
  • 3
    41493A9 TRIM CYLINDER ASSEMBLY
    (Black)
    TRIM CYLINDER ASSEMBLY
    (Black)
  • 3
    41493A6 TRIM CYLINDER ASSEMBLY
    (Gray)
    TRIM CYLINDER ASSEMBLY
    (Gray)
  • 4
    41492A1 GUIDE ASSEMBLY
    GUIDE ASSEMBLY
  • 5
    25-41478A1 REPAIR KIT
    REPAIR KIT
  • 6
    41482A3 CHECK VALVE KIT
    CHECK VALVE KIT
  • 7
    1100-8M0021648 GUIDE ASSEMBLY, Trim Rod
    GUIDE ASSEMBLY, Trim Rod
  • 8
    43397A7 PISTON ASSEMBLY, Port
    PISTON ASSEMBLY, Port
  • 9
    35-12184A1 TRIM FILTER ASSEMBLY
    TRIM FILTER ASSEMBLY
  • 10
    878414T01 PISTON/ROD ASSEMBLY, Power Trim, Starboard
    PISTON/ROD ASSEMBLY, Power Trim, Starboard
  • 11
    17-821539 PIN, Groove, Trim Cylinder - Upper
    PIN, Groove, Trim Cylinder - Upper
  • 12
    893929A01 VALVE ASSEMBLY
    VALVE ASSEMBLY
  • 12A
    53-815949001 E RING
    E RING
  • 13
    10-4000327 SCREW, (M6 x 14), Cover
    SCREW, (M6 x 14), Cover
  • 14
    12-4002315 WASHER, Cover Screw
    WASHER, Cover Screw
  • 15
    99642 COVER, Manifold
    COVER, Manifold
  • 16
    25-48462A4 O-RING KIT
    O-RING KIT
  • 17
    19-99609A1 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • 18
    99641A02 SHAFT ASSEMBLY
    SHAFT ASSEMBLY
  • 19
    22-56800 PIPE PLUG, Shaft
    PIPE PLUG, Shaft
  • 20
    10-4008820 SCREW, (M6 x 20), Pump and Motor
    SCREW, (M6 x 20), Pump and Motor
  • 21
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 22
    826729A10 PUMP AND MOTOR
    PUMP AND MOTOR
  • 23
    99625002 SHAFT, Upper
    SHAFT, Upper
  • 24
    97-818298Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 25
    10-4000332 SCREW, (M6 x 35), Anode
    SCREW, (M6 x 35), Anode
  • 26
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, Anode Screw
    WASHER, (.281 x .500 x .060) Stainless Steel, Anode Screw
  • 27
    8M0045383 STRIKER PLATE, Trim Shaft
    STRIKER PLATE, Trim Shaft
  • 28
    13-58643 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 29
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 30
    84-99695A1 HARNESS ASSEMBLY, Control, Power Trim
    (3 Wire)
    HARNESS ASSEMBLY, Control, Power Trim
    (3 Wire)
  • 30
    84-17201A3 HARNESS ASSEMBLY, Control, Power Trim
    (2 Wire)
    HARNESS ASSEMBLY, Control, Power Trim
    (2 Wire)
  • 31
    84-79139A23 WIRE ASSEMBLY, Red
    (15.50 Inch)
    WIRE ASSEMBLY, Red
    (15.50 Inch)
  • 31
    84-87379A14 WIRE ASSEMBLY, (2.750 Inches), Red
    (2.75 Inch)
    WIRE ASSEMBLY, (2.750 Inches), Red
    (2.75 Inch)
  • 32
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 33
    10-41508 SCREW, (.250-20 x .500) Stainless Steel, Starter Solenoid
    SCREW, (.250-20 x .500) Stainless Steel, Starter Solenoid
  • 34
    11-26419 NUT, (#8-32) Brass, Solnoid Terminal
    NUT, (#8-32) Brass, Solnoid Terminal
  • 35
    17-878267 PIN, Groove, Trim Cylinder (Lower)
    PIN, Groove, Trim Cylinder (Lower)
  • 36
    11-94330 NUT, (.250-20) Brass, Solenoid Terminal
    NUT, (.250-20) Brass, Solenoid Terminal
  • 37
    85-97861 INSULATOR, Starter Solenoid
    INSULATOR, Starter Solenoid
  • 38
    54-22875 CLIP, Pump Wire
    CLIP, Pump Wire
  • 39
    8M0084613 C WASHER, Clip Screw
    C WASHER, Clip Screw
  • 40
    10-69079 SCREW, (#10-16 x .440), Clip to Transom Bracket
    SCREW, (#10-16 x .440), Clip to Transom Bracket
  • 41
    10-4000377 SCREW, (M10 x 30), Manifold
    SCREW, (M10 x 30), Manifold
  • 42
    13-400258 LOCKWASHER, (M10) Stainless Steel, Manifold Screw
    LOCKWASHER, (M10) Stainless Steel, Manifold Screw
